Daikin FBA71BVMA 7.1kW Premium Slimline Ducted Air Conditioner

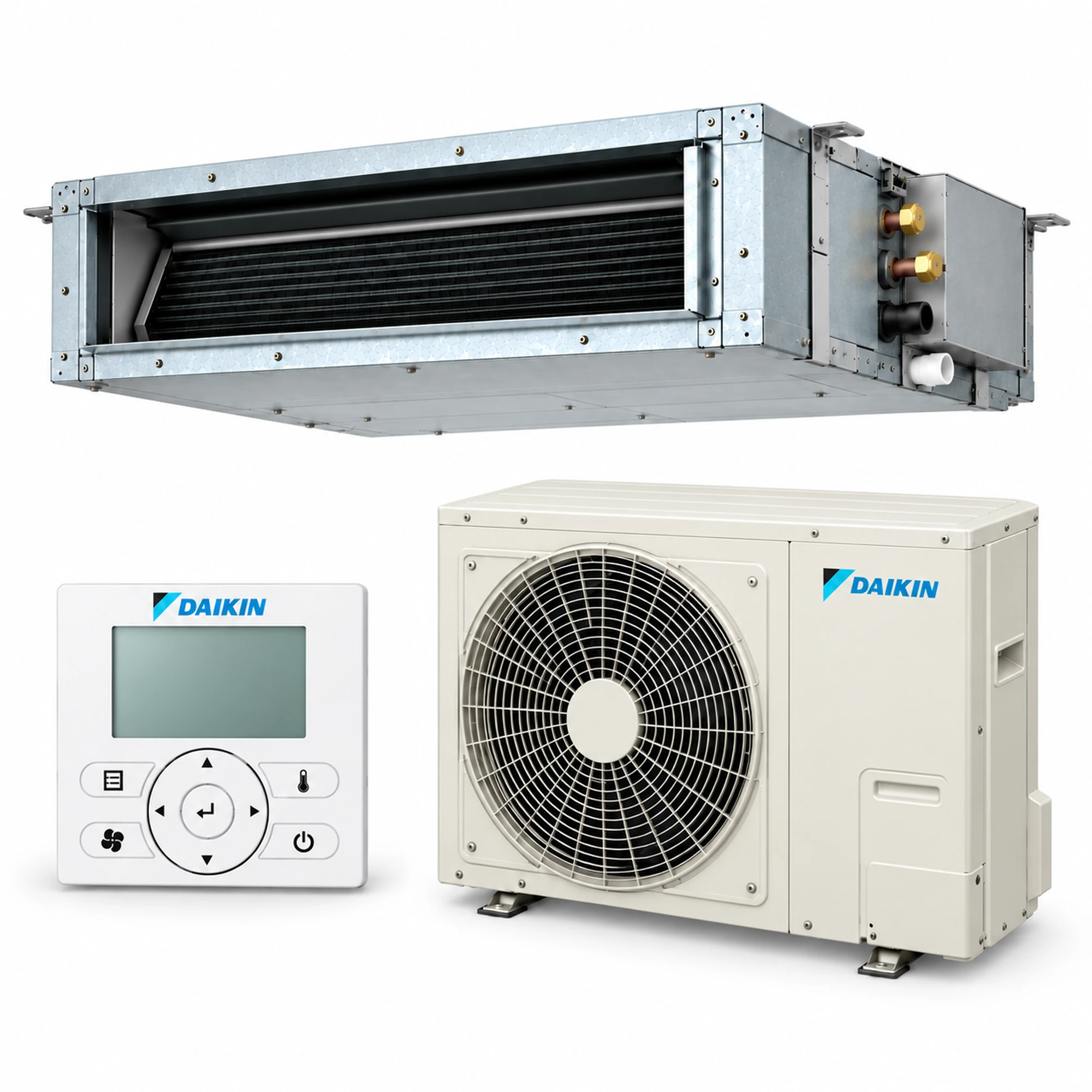

The Daikin FBA71BVMA is a Premium Inverter Slimline ducted air conditioning system with 7.1kW cooling capacity and 8.0kW heating capacity. This reverse-cycle combination pairs the FBA71BVMA indoor unit with the RZAV71C2V1 outdoor unit and the BRC1E63 wired wall controller. It uses R32 refrigerant and a single-phase power supply, providing a ducted option for appropriately assessed residential and light commercial projects.

A ducted installation distributes conditioned air through ceiling or wall outlets while concealing the indoor equipment within a suitable service space. This approach can help maintain a consistent interior appearance across several rooms. The final result depends on selecting an appropriate system capacity, planning the duct network and providing suitable access for installation and future maintenance.

Daikin FBA71BVMA System Combination

This listing identifies the indoor unit, outdoor unit and controller together so you can compare the complete equipment combination when requesting a quote. Matching model numbers are especially important when comparing different offers, replacing an existing system or checking a proposed installation against a building plan.

Before ordering, provide your installer with the complete model combination shown below. Ask them to confirm the equipment selection, required accessories and installation scope in writing. This helps establish what is included in the quotation and which additional components are needed to complete the ducted installation.

Technical Specifications

Brand	Daikin
Product range	Premium Inverter Slimline Ducted
Indoor model	FBA71BVMA
Outdoor model	RZAV71C2V1
Controller	BRC1E63 wired wall controller
Rated cooling capacity	7.1kW
Rated heating capacity	8.0kW
Operation	Reverse cycle: cooling and heating
Compressor technology	Inverter
Refrigerant	R32
Power supply	Single phase, 220–240V, 50Hz
Indoor dimensions, H × W × D	245 × 1000 × 800mm
Indoor unit weight	37kg
Outdoor dimensions, H × W × D	990 × 940 × 320mm
Outdoor unit weight	69kg

Low-Profile Indoor Unit for Concealed Installation

The Daikin FBA71BVMA indoor unit has a low-profile cabinet, making it an option worth assessing where the available installation height is restricted. Its cabinet dimensions give your installer a starting point for checking the proposed ceiling space, bulkhead or other concealed equipment location.

Available space must accommodate more than the cabinet itself. The installer also needs to allow for duct connections, supports, insulation, refrigerant pipework, electrical connections, drainage and service access. A unit that appears to fit on a floor plan may still require changes to the surrounding layout.

For a renovation, arrange an inspection before committing to the equipment. For a new build, coordinate the air conditioning design with the ceiling and structural plans early. This can make it easier to agree on access panel locations and outlet positions before finishes are installed.

Premium Inverter Cooling and Heating

The Daikin FBA71BVMA combines inverter technology with reverse-cycle operation. Cooling and heating are provided by the same system, allowing the installation to serve different seasonal comfort needs without requiring a separate ducted heating appliance.

Inverter operation allows compressor output to vary with demand within the system’s operating limits. Actual electricity use depends on many factors, including outdoor conditions, indoor temperature settings, insulation, glazing and how the building is occupied. A capacity figure alone does not establish running costs for a particular property.

For an informed comparison, discuss the intended operating hours and rooms to be conditioned with your installer. A correctly assessed system and a well-planned duct network are important parts of achieving useful comfort from the equipment you select.

Single-Phase Electrical Supply

The Daikin FBA71BVMA combination listed here is a single-phase model. Confirm the available electrical supply at the property before ordering, particularly when replacing equipment that may have used a different supply arrangement.

A qualified electrician should assess the relevant circuit, protection, cabling and isolation requirements against the manufacturer’s installation instructions. Existing electrical infrastructure should be checked rather than assumed suitable simply because an air conditioner was previously installed in the same location.

Discreet Air Distribution Across Your Interior

A Daikin FBA71BVMA ducted installation can deliver air through outlets positioned around the conditioned area. This gives you the opportunity to coordinate outlet styles and locations with the room layout, lighting and overall interior design.

Outlet placement should account for furniture, occupied areas and the path air takes through each room. The return-air location also needs careful planning so the system can draw air back effectively. These decisions are best made as part of the complete duct design.

Discuss any rooms with large windows, unusual ceiling heights or substantial afternoon sun exposure. Their requirements may differ from other rooms in the same building. The number of rooms alone is not a reliable basis for deciding whether this system is the right size.

BRC1E63 Wired Wall Controller

The Daikin FBA71BVMA equipment combination includes the BRC1E63 wired wall controller. This provides a dedicated wall-mounted interface for compatible system operation, giving occupants an accessible place to manage their air conditioning.

Agree on the controller location before installation. Consider visibility, accessibility and the way people move through the property. If you want additional control functions, ask your installer to confirm the exact compatible accessories and how those functions will operate with the proposed system.

Planning Optional Zoning

If you are considering zoning with the Daikin FBA71BVMA, request a separate assessment of the proposed zone arrangement. Zoning requires suitable additional equipment and a design that maintains the airflow needed by the air conditioning system.

Explain which rooms you expect to use together and which areas you would like to control separately. Your installer can then assess the duct layout, damper arrangement, minimum airflow requirements and control compatibility for that operating pattern.

Do not assume that zoning components, extra controllers or remote access accessories are included in the standard equipment combination. Have the quotation identify any optional controls and accessories individually, together with the work needed to install and commission them.

Duct Design and Correct System Selection

Choosing the Daikin FBA71BVMA should follow a property assessment that considers heat gain, heat loss and the intended conditioned area. Factors such as orientation, insulation, window size, shading and occupancy can substantially affect the capacity required.

The duct network must also suit the selected indoor unit and building layout. Duct lengths, bends, branch sizes, outlet selection and return-air arrangements influence how air reaches the rooms. Poor distribution can limit comfort even when the equipment has adequate nominal capacity.

When requesting a quote, provide a floor plan where available and identify the areas you want conditioned. Include any known ceiling restrictions or access limitations. Clear information helps your installer recommend a practical design and reduces the chance of unexpected changes during installation.

Outdoor Unit Location and Access

The Daikin FBA71BVMA system is paired with the RZAV71C2V1 outdoor unit. Its proposed location should be assessed for support, ventilation, service access and the installation clearances specified by Daikin.

Consider nearby paths, windows and other equipment when discussing placement. The installer should also assess the refrigerant pipe route and any requirements relating to heating-mode drainage. Cabinet dimensions alone should not be used to decide whether a confined space is suitable.

Understanding Your Quotation

Ask for a quotation that clearly distinguishes the equipment from the installation work. Confirm whether it covers ductwork, outlets, return-air components, refrigerant pipework, drainage, electrical work, supports, access provisions and commissioning.

Replacement installations may involve additional work to assess or modify existing ducts and services. A written scope makes it easier to compare offers fairly and understand what will be supplied. Installation and optional accessories are subject to the agreed quotation.

Professional Installation and Warranty Information

Arrange installation of the Daikin FBA71BVMA through appropriately licensed and qualified professionals. Refrigerant handling and electrical work require the relevant qualifications, and the installation should follow the applicable manufacturer instructions.

Ask for operating guidance and the relevant handover documentation when the work is completed. Confirm the current manufacturer warranty terms, eligibility and exclusions before purchase. Keep your purchase records, installation details and service documentation available for future reference.

Maintenance and Ongoing Access

Plan convenient access to the return-air filter and indoor unit service area. A concealed installation still needs regular care, and suitable access helps make routine maintenance practical after the surrounding ceilings and finishes are complete.

Follow the operating instructions for filter care and arrange professional servicing as appropriate for the installation and usage. Keep outlets unobstructed and report unusual operation to a qualified technician. Ask your installer to explain the maintenance tasks relevant to your completed system.

Explore Daikin Ducted Air Conditioning

For further information about the manufacturer’s ducted range, visit the official Daikin ducted air conditioning website. You can also browse our air conditioning range to compare other equipment combinations before requesting advice.

Request a Quote for the Daikin FBA71BVMA

Contact Aircon Trade with your property details, location and preferred installation timeframe. If available, include a floor plan, photographs of the proposed equipment locations and the model numbers of any existing air conditioning equipment.

Use our contact page to request a quote for this Premium Slimline ducted system. Confirm the final equipment selection, installation requirements and optional accessories before placing an order.

Published capacities are manufacturer-rated values. Suitability, installation scope, accessories, availability and final pricing are subject to assessment and quotation. Product images are representative illustrations.
