Daikin FDYQ250LCV1 Three Phase Premium Inverter Ducted System

The Daikin FDYQ250LCV1 Three Phase ducted air conditioning combination delivers reverse-cycle heating and cooling through a professionally designed duct network. This listing specifies the FDYQ250LCV1 concealed indoor unit, RZYQ10TY1 outdoor unit and BRC1E63 wired controller. Rated output is 24.0kW for cooling and 26.8kW for heating.

For a new installation or replacement project, equipment selection should begin with an assessment of the building. The spaces being conditioned, insulation, glazing, orientation and operating patterns all influence the required capacity. Professional design helps establish whether this combination is appropriate and identifies the supporting work needed for the installation.

Complete Indoor and Outdoor Equipment Combination

The equipment references for this listing are FDYQ250LCV1 for the indoor unit, RZYQ10TY1 for the outdoor unit and BRC1E63 for the wired controller. Include these references when requesting pricing so that each quotation identifies the same proposed combination.

For replacement installations, provide photographs of the existing equipment and its model labels. Explain any airflow or comfort problems you want the project to address. This information helps the installer review the existing design and assess whether ducts, refrigerant pipes, controls and electrical components can be retained.

Key Product Specifications

Brand	Daikin
Product range	Premium Inverter Ducted
Indoor model	FDYQ250LCV1
Outdoor model	RZYQ10TY1
Controller specified	BRC1E63 wired controller
Rated cooling capacity	24.0kW
Rated heating capacity	26.8kW
System power supply	Three phase, 380–415V, 50Hz
Refrigerant	R410A
Operation	Reverse-cycle heating and cooling
Indoor dimensions — H × W × D	470 × 1400 × 997mm
Outdoor dimensions — H × W × D	1657 × 930 × 765mm

These dimensions describe the equipment casing. Installation planning must also allow space for connections, supporting arrangements, airflow and servicing. Your installer should confirm the required clearances and component connections against the applicable installation instructions.

Premium Inverter Heating and Cooling

This combination belongs to Daikin’s Premium Inverter Ducted range. Inverter operation allows compressor output to adjust as demand changes. Rated capacity describes heating or cooling output under specified conditions and should not be interpreted as the electricity consumed during every hour of operation.

Actual running costs vary with outdoor conditions, temperature settings, operating hours and the building itself. Duct insulation and airflow distribution also influence the completed installation. Assess the equipment and proposed distribution system together when comparing quotations.

Explain which rooms are occupied during the day and evening, and whether the building has areas with particularly strong sun exposure. These details help the installer assess the load and develop a design around your normal use of the property.

Daikin FDYQ250LCV1 Three Phase Electrical Requirements

The specified system requires a suitable three-phase supply. Before ordering, arrange an assessment of the property’s electrical infrastructure. Available supply capacity, switchboard arrangements, circuit protection and cable routes should be considered as part of the installation design.

Ask for the electrical scope to be clearly described in your quotation. Any required circuit, isolator, cable installation or switchboard changes should be identified. For a replacement project, the existing electrical arrangement should be checked against the requirements of the proposed equipment.

Completing this assessment early helps establish the total project scope. It also makes quotations easier to compare because the supporting electrical work is visible alongside the equipment and installation labour.

Discreet Ducted Comfort for Selected Areas

A ducted installation conceals the indoor equipment in a suitable space and distributes conditioned air through supply outlets. The visible grilles and controller can be planned around the interior layout. Discuss outlet styles and positions during the design stage.

Air distribution should consider room dimensions, furniture placement and the areas people regularly occupy. The return-air arrangement also requires attention because air needs a suitable route back to the system. Let your installer know which rooms are commonly used with doors closed.

The Daikin FDYQ250LCV1 Three Phase combination should be selected using an appropriate load assessment. No fixed floor-area coverage is promised for this model. Properties with similar floor areas can have different requirements because of glazing, insulation, ceiling height and orientation.

Optional Zoning and Additional Controls

Zoning can be discussed where different areas have separate operating schedules. Bedrooms, living spaces and work areas may be occupied at different times. A proposed zoning design should reflect these patterns while maintaining the airflow required by the selected equipment.

Confirm any additional dampers, sensors, zone controllers and wiring in the written quotation. The BRC1E63 controller specified here does not establish that a complete zoning package is included. Ask how the proposed zones will operate and whether certain areas must remain open during use.

Describe any additional control requirements before accepting the proposal. Compatibility and accessory requirements should be checked for the exact equipment combination. Existing zoning controls should also be assessed before their reuse is included in a replacement project.

BRC1E63 Wired Controller

The controller specified for this listing is the Daikin BRC1E63 wired controller. A fixed wall controller provides an accessible operating point for the air conditioner. Agree on its location during planning, considering visibility, convenience and the selected control configuration.

At handover, request a demonstration of the installed controls. This should cover everyday operation, temperature adjustment and any scheduling functions configured for the system. Where a separate zoning interface is supplied, ask how it works with the main controller.

Indoor Installation and Professional Duct Design

Provide a floor plan showing the rooms you want to condition, ceiling heights and major windows. Mention planned extensions or changes in room use. These details help establish the load and allow the installer to assess a practical duct layout.

The installation space must accommodate the indoor unit, duct connections, drainage and maintenance access. Check the delivery route before ordering, particularly where narrow openings or structural members could affect positioning. The quotation should explain how the equipment will be supported and accessed for servicing.

Duct routing should be planned alongside equipment placement. Available space, duct lengths and bends influence the design. The installer should select suitable duct sizes and insulation, then assess the intended airflow to each area.

For an existing installation, ask for an inspection of the ducts and return-air arrangement. Damaged insulation, restricted ducts or unsuitable outlet positions may require attention during replacement. Include recommended repairs in the proposal so the final scope is clear.

RZYQ10TY1 Outdoor Unit Positioning

The outdoor unit needs a suitable location with the airflow clearances and service access specified by the manufacturer. Casing dimensions are useful for initial planning, but the complete installation footprint must account for surrounding walls, fences and structures.

Discuss the location in relation to windows, paths and outdoor living areas. Supporting arrangements, refrigerant pipe routes and drainage should also be assessed. Future landscaping or screening must preserve the space needed for operation and maintenance.

Confirm the outdoor delivery and positioning arrangements before installation day. Access restrictions should be identified early so any required handling arrangements can be included in the project quotation.

What Is Included in the Quotation?

This listing identifies the indoor unit, outdoor unit and wired controller in the stated combination. Your written quotation should confirm the actual supplied package, availability and any accessories included with the order. Use the exact model references when reviewing the proposal.

Ductwork, outlets, return-air components, zoning hardware, refrigerant piping, mounting materials, electrical work and installation labour should be identified where included. For replacement projects, confirm whether removal and disposal of the existing equipment form part of the scope.

When requesting a Daikin FDYQ250LCV1 Three Phase quotation, explain whether you need equipment supply only or assistance arranging an installation proposal. This helps define the required service and makes the total project cost easier to understand.

Professional Installation and Warranty Information

Installation should be completed by appropriately qualified professionals following the applicable manufacturer instructions and requirements. Retain the invoice, model details and commissioning documentation. These records are useful when arranging maintenance or requesting service support.

Confirm the applicable manufacturer warranty terms before purchasing, including conditions relevant to the intended application. Where installation workmanship coverage is offered, request those terms in writing. The equipment and installation service arrangements should both be clear in the final documentation.

Routine Care and Ongoing Maintenance

Request maintenance instructions specific to the completed installation. These should explain how to access and clean the fitted return-air filter and when professional servicing is recommended. Follow the supplied guidance because filter arrangements can differ between installations.

Keep accessible airflow paths clear and watch for changes in operation. Reduced airflow, unusual noise, water leakage or persistent controller messages should be assessed by a qualified technician. Recording when an issue occurs can help the service provider investigate it.

Official Daikin Product Information

Visit the official Daikin Premium Inverter Ducted page for information about the product range. Range information can cover different model generations, so confirm specifications using the exact indoor and outdoor references in your quotation.

Request a Daikin FDYQ250LCV1 Three Phase Quote

To enquire about this combination, provide your location, floor plan and whether the project is a new installation or replacement. Photographs of existing model labels and the installation space can help clarify the requirements.

Contact Air Conditioning Trade to request pricing, availability and a clearly defined quotation. You can also browse our air conditioning range to compare other available models.

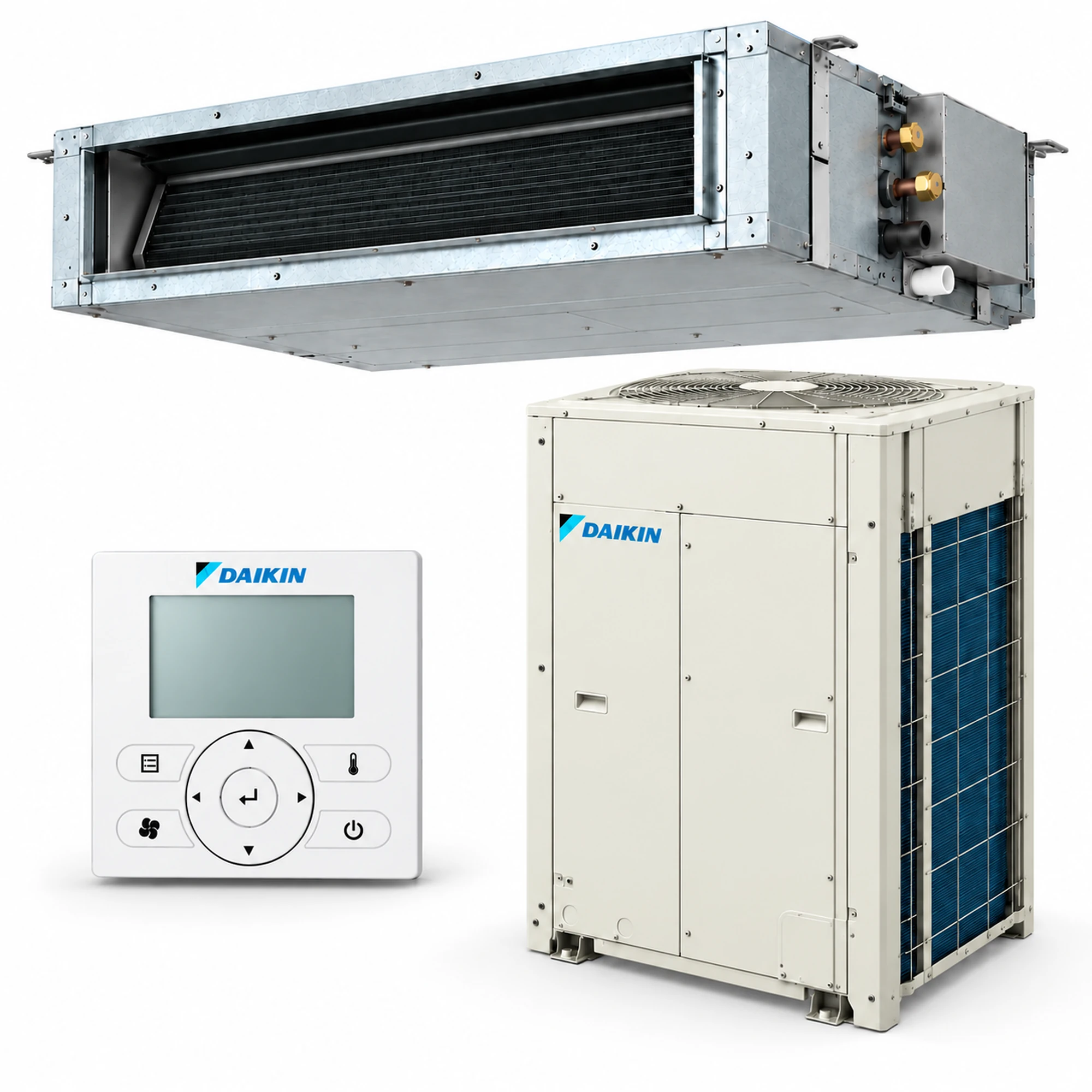

Product image is a representative illustration. Actual equipment appearance and minor cabinet details may vary. Confirm supplied components and the final installation scope in your written quotation.
