Daikin FDYQ200LCV1 Three Phase Premium Inverter Ducted System

The Daikin FDYQ200LCV1 Three Phase ducted air conditioning combination offers reverse-cycle heating and cooling through a professionally designed duct network. This listing specifies the FDYQ200LCV1 concealed indoor unit, RZYQ8TY1 outdoor unit and BRC1E63 wired controller, with 20.0kW rated cooling capacity and 22.4kW rated heating capacity.

Choosing a ducted system starts with understanding the building and the rooms you want to condition. Whether the project involves a new installation, renovation or replacement, the equipment should be selected around the assessed load and available installation space. A professional assessment helps establish whether this combination meets the requirements of your property.

Complete Indoor and Outdoor Equipment Combination

The combination listed here consists of the FDYQ200LCV1 indoor unit, RZYQ8TY1 outdoor unit and BRC1E63 wired controller. Keep these model references together when requesting pricing. This helps ensure that quotations identify the intended equipment and makes it easier to check the supplied components against your order.

For a replacement project, provide the model details of the existing system and explain any comfort or airflow problems you have experienced. The installer can then assess the current arrangement and determine which components require replacement. Existing ducts, pipes and controls should be inspected before their reuse is included in a proposal.

Key Product Specifications

Brand	Daikin
Product range	Premium Inverter Ducted
Indoor model	FDYQ200LCV1
Outdoor model	RZYQ8TY1
Controller specified	BRC1E63 wired controller
Rated cooling capacity	20.0kW
Rated heating capacity	22.4kW
System power supply	Three phase, 380–415V, 50Hz
Refrigerant	R410A
Operation	Reverse-cycle heating and cooling
Indoor dimensions — H × W × D	470 × 1400 × 997mm
Outdoor dimensions — H × W × D	1657 × 930 × 765mm

Equipment dimensions describe the casing only. The installation also needs space for duct connections, refrigerant piping, drainage, airflow and servicing. Your installer should confirm the required clearances and electrical connections using the applicable installation instructions.

Premium Inverter Heating and Cooling

This combination belongs to Daikin’s Premium Inverter Ducted range. Inverter operation allows compressor output to adjust as demand changes. The rated heating and cooling figures describe thermal output under specified conditions; they are not a measure of electricity consumed during every hour of operation.

Actual energy use varies with outdoor conditions, temperature settings, operating hours and building performance. Duct insulation and airflow distribution also influence the completed installation. When comparing quotations, assess the proposed system design alongside the equipment so you understand how conditioned air will reach the rooms you intend to use.

Explain your usual household routines during the assessment. An installer can use this information when planning the distribution layout and discussing controls. Clear operating requirements are particularly useful where different areas are occupied during the day and evening.

Daikin FDYQ200LCV1 Three Phase Electrical Requirements

The specified system requires a suitable three-phase supply. Have the property’s electrical infrastructure assessed before ordering the equipment. Available supply capacity, switchboard arrangements, circuit protection and cable routing should all be considered as part of the installation design.

Your quotation should identify the electrical work included in the project. Ask for any required circuit, isolator, cable installation or switchboard changes to be described clearly. For replacement work, existing electrical connections must be checked against the requirements of the proposed equipment.

Completing this assessment early helps establish a realistic project scope. It also makes quotations easier to compare because you can see which electrical materials and labour have been included, rather than comparing equipment prices without the supporting work.

Discreet Ducted Comfort Across Selected Rooms

A ducted installation conceals the indoor equipment in a suitable space and distributes conditioned air through room outlets. The visible supply grilles, return-air grille and controller can be planned around your interior. Discuss grille styles and outlet positions during the design stage.

Air distribution should consider room dimensions, furniture and the places people spend time. Return-air positioning also needs attention because air must have a suitable route back to the system. Tell your installer which rooms are normally used with doors closed and how the property is occupied.

The Daikin FDYQ200LCV1 Three Phase combination should be selected using a professional load assessment. Floor area alone does not establish suitability. Glazing, orientation, ceiling height and insulation can create different requirements in properties of similar size.

Optional Zoning and Control Planning

Zoning can be discussed where different areas have separate operating schedules. Bedrooms, living spaces and work areas may be used at different times. The proposed zoning layout should reflect those routines while maintaining the airflow required for the selected equipment.

Confirm any additional dampers, sensors, zone controllers and wiring in the written quotation. The BRC1E63 controller specified here does not establish that a complete zoning package is included. Ask how the zones will operate and whether particular areas need to remain open during use.

If you want additional control options, describe them before accepting the quotation. Compatibility and accessory requirements should be confirmed for the exact equipment combination. For replacements, existing zone controls should be assessed before assuming they can be retained.

BRC1E63 Wired Controller

The controller specified in this listing is the Daikin BRC1E63 wired controller. A fixed wall controller provides an accessible operating point for the air conditioner. Agree on its position during planning, considering convenience, visibility and the control configuration selected for the installation.

Request a practical demonstration at handover. This should cover normal operation, temperature adjustment and any scheduling functions configured for the system. If a separate zoning interface is installed, ask how it works with the main controller and which settings are relevant to everyday use.

Professional Indoor Installation and Duct Design

A floor plan is a useful starting point for an installation assessment. Mark the rooms you want to condition and provide information about ceiling heights, major windows and planned renovations. These details help establish the load and an appropriate distribution layout.

The indoor installation space must accommodate the equipment, duct connections, drainage and future maintenance. Delivery access should be checked before ordering, particularly where narrow openings or structural members could affect positioning. The proposal should explain how the equipment will be supported and accessed for servicing.

Duct routes should be planned alongside the indoor unit location. Available space, duct lengths and bends influence the design. Suitable duct sizes and insulation should be selected for the installation, with airflow distributed according to the requirements of the rooms being served.

For an existing system, ask for an inspection of the ducts and return-air arrangement. Damaged insulation, restricted ducts or unsuitable outlet positions may need attention during the replacement. Include any recommended repairs in the quotation so the project scope is clear.

RZYQ8TY1 Outdoor Unit Positioning

The outdoor unit requires a suitable location with the airflow clearances and maintenance access specified by the manufacturer. Its casing dimensions are useful for initial planning, but the complete installation footprint must also account for surrounding walls, fences and structures.

Discuss the proposed location in relation to windows, paths and outdoor living areas. Supporting arrangements, refrigerant pipe routes and drainage should also be assessed. Any screening or future landscaping must preserve the space required for operation and servicing.

What Is Included in the Quotation?

This listing identifies the indoor unit, outdoor unit and wired controller in the stated combination. Your written quotation should confirm the supplied package, stock availability and accessories included with the order. Use the exact model references when reviewing the proposal.

Ductwork, outlets, return-air components, zoning hardware, refrigerant piping, mounting materials, electrical work and installation labour should be identified where included. For replacement projects, confirm whether removal and disposal of the existing equipment are part of the quoted scope.

When requesting a Daikin FDYQ200LCV1 Three Phase quotation, explain whether you need equipment supply only or assistance arranging an installation proposal. This helps define the service required and makes the total project cost easier to understand.

Professional Installation and Warranty Information

Installation should be completed by appropriately qualified professionals following the applicable manufacturer instructions and requirements. Keep the invoice, model details and commissioning documentation together. These records are useful when arranging maintenance or requesting service support.

Confirm the applicable manufacturer warranty terms before purchasing, including conditions relevant to the intended application. Where installation workmanship coverage is offered, request those terms in writing. The final documentation should make the equipment and installation service arrangements clear.

Routine Care and Ongoing Maintenance

Ask for maintenance instructions specific to your completed installation. These should explain how to access and clean the fitted return-air filter and when professional servicing is recommended. Follow the supplied guidance because filter arrangements can differ between installations.

Keep accessible airflow paths clear and monitor the system for changes in operation. Reduced airflow, unusual noise, water leakage or persistent controller messages should be assessed by a qualified technician. Recording when an issue occurs can help the service provider investigate it.

Official Daikin Product Information

Visit the official Daikin Premium Inverter Ducted page for information about the product range. Range information can cover different model generations, so confirm specifications using the exact indoor and outdoor references in your quotation.

Request a Daikin FDYQ200LCV1 Three Phase Quote

To enquire about this combination, provide your location, floor plan and whether the project is a new installation or replacement. Photographs of existing model labels and the installation space can help clarify the requirements.

Contact Air Conditioning Trade to request pricing, availability and a clearly defined quotation. You can also browse our air conditioning range to compare other available models.

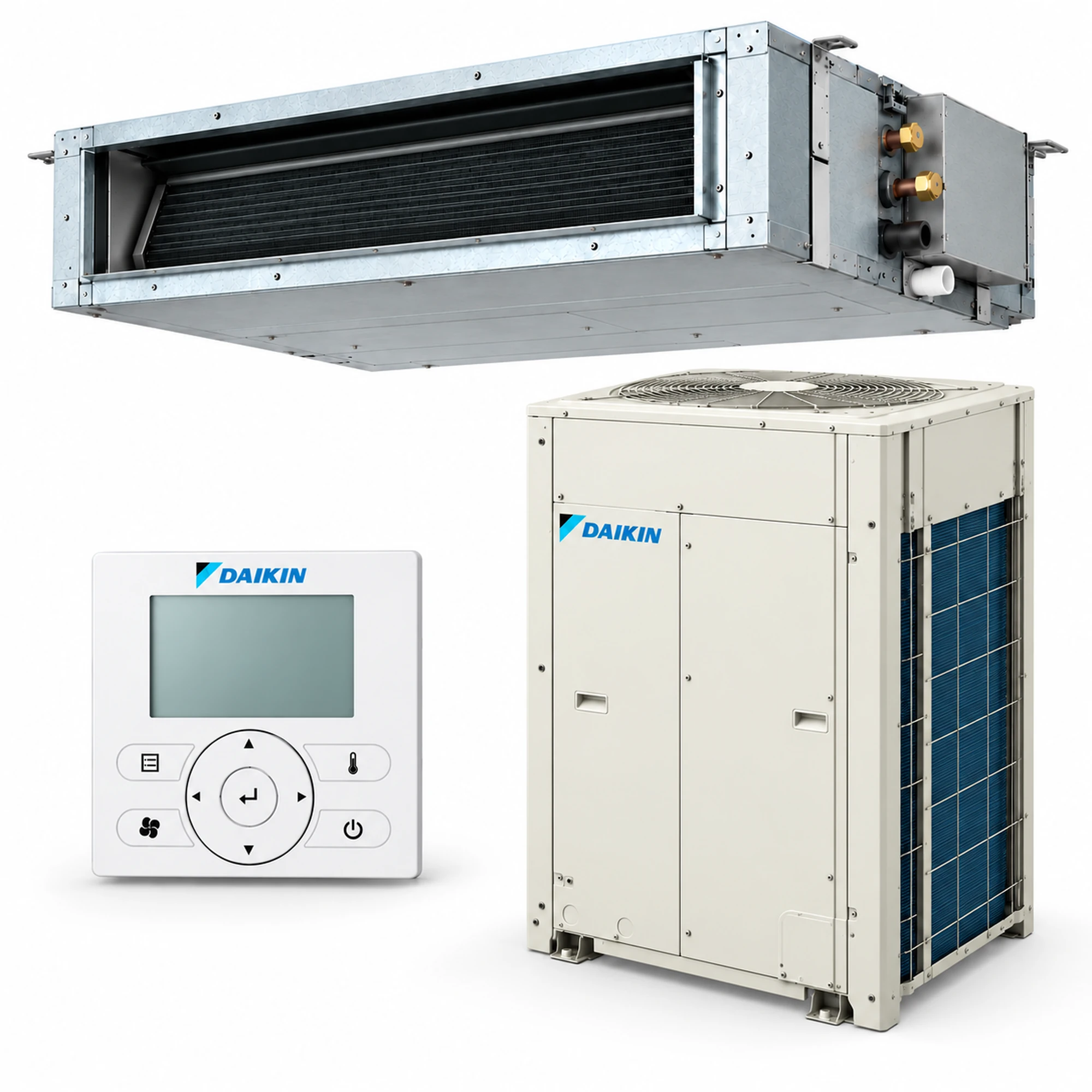

Product image is a representative illustration. Actual equipment appearance and minor cabinet details may vary. Confirm supplied components and the final installation scope in your written quotation.
