Daikin FDYAN160AV1 Three Phase 15.5kW Ducted Air Conditioner

The Daikin FDYAN160AV1 Three Phase inverter ducted air conditioner provides high-capacity reverse-cycle heating and cooling for large Australian homes, substantial open-plan spaces, offices and suitable light-commercial properties. Paired with the matching RZA160C2Y1 outdoor unit, this combination delivers 15.5kW of rated cooling capacity and 18.0kW of rated heating capacity.

The FDYAN160AV1 indoor unit is normally concealed within a roof or ceiling space. Conditioned air is distributed through insulated ductwork to outlets positioned throughout the selected areas of the property. This design maintains a clean interior appearance because the main indoor air-conditioning equipment remains hidden from view.

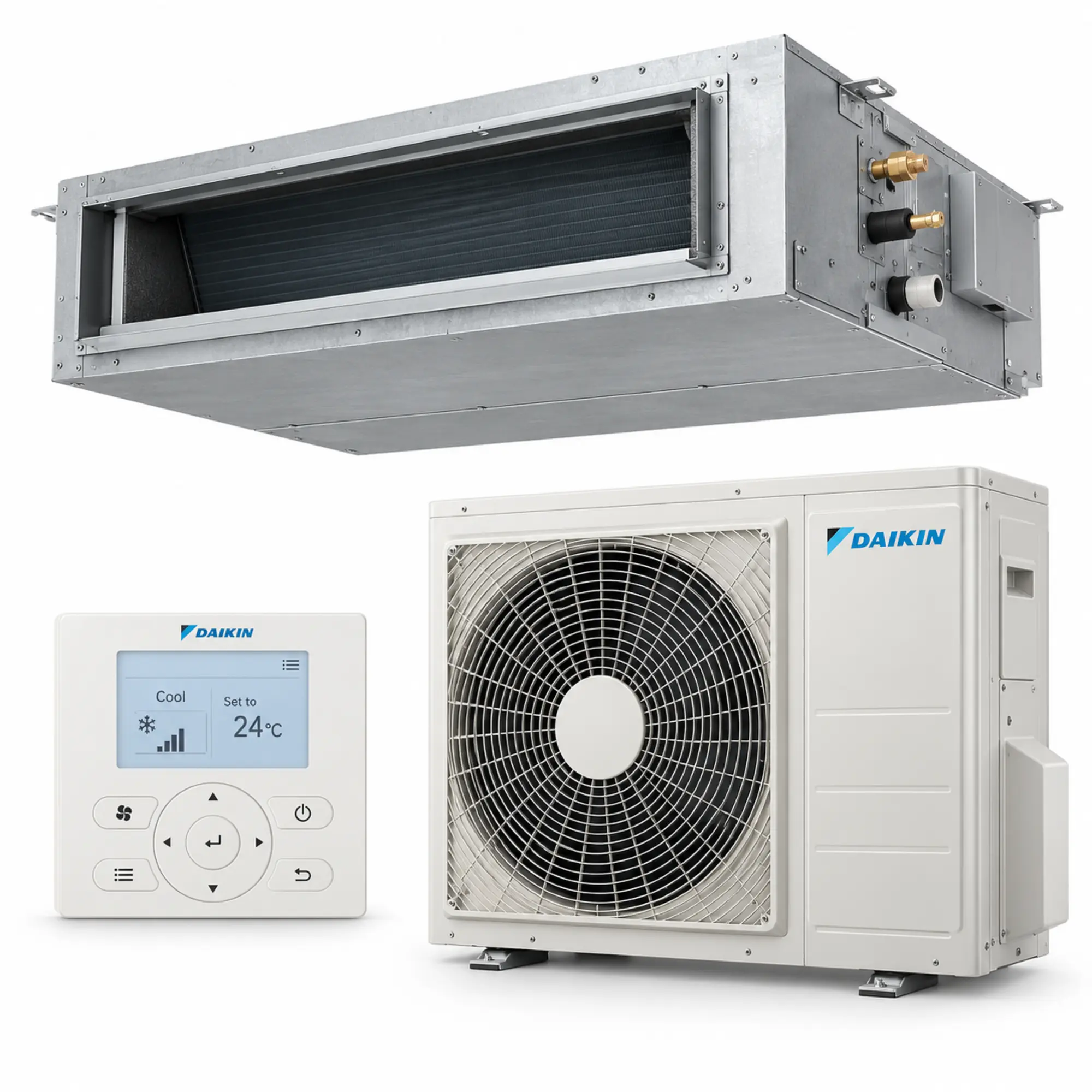

Complete FDYAN160AV1 and RZA160C2Y1 Combination

This listing combines the FDYAN160AV1 concealed indoor unit with the RZA160C2Y1 outdoor unit. The RZA160C2Y1 is the three-phase model and must not be confused with the single-phase RZA160C2V1 outdoor unit. A compatible three-phase electrical supply must be confirmed before this equipment is ordered or installed.

The combination uses R32 refrigerant and inverter technology. A BRC1E63 wired controller may also be supplied as part of the proposed package, subject to confirmation on the final written quotation. Customers should carefully verify both model numbers, electrical requirements and all package inclusions before approving the order.

Key Product Specifications

Brand	Daikin
Indoor Unit	FDYAN160AV1
Outdoor Unit	RZA160C2Y1
Controller	BRC1E63 wired controller, subject to package confirmation
Rated Cooling Capacity	15.5kW
Rated Heating Capacity	18.0kW
Refrigerant	R32
Power Supply	Three phase
System Type	Reverse-cycle inverter ducted air conditioner

High-Capacity Three-Phase Climate Control

The Daikin FDYAN160AV1 Three Phase system is intended for buildings with significant heating and cooling requirements. Its 15.5kW rated cooling output may support larger conditioned areas when the system is properly selected, while the 18.0kW rated heating capacity provides powerful reverse-cycle warmth during colder conditions.

The system uses inverter technology to adjust compressor operation according to current demand. Rather than operating only at maximum output and repeatedly switching on and off, an inverter system can vary its output as indoor conditions change. When correctly selected and installed, this can support stable indoor comfort and controlled operation.

Three-Phase Electrical Requirements

This combination requires a compatible three-phase electrical supply. Before purchasing the equipment, a qualified electrician or air-conditioning professional should verify the property’s electrical service and switchboard configuration. The RZA160C2Y1 should not be ordered as a direct replacement for a single-phase outdoor unit without professional assessment.

Electrical upgrades, circuit protection, isolators, cabling and switchboard modifications are not automatically included. Any required electrical work must be separately assessed and included in the installation quotation.

Discreet Whole-Property Comfort

The concealed FDYAN160AV1 indoor unit provides heating and cooling without requiring a separate wall-mounted indoor unit in every room. In a typical installation, occupants primarily see the supply-air outlets, return-air grille and wall controller.

The installer must calculate the airflow required for each selected area and design the duct network accordingly. Appropriate duct sizes, outlet positions and return-air capacity are important for comfort, balanced air distribution and manageable operating noise.

Optional Zoning Possibilities

A compatible zoning system may allow selected areas of the property to be operated independently. For example, living spaces can be selected during the day while bedroom zones remain closed. At night, the occupants may choose to direct conditioned air towards sleeping areas while reducing airflow to unused spaces.

The number of practical zones depends on the duct design, minimum airflow requirements and selected controls. Zone motors, additional sensors, smart controllers and third-party zoning equipment are not automatically included. These items must be separately selected and listed in the written quotation.

BRC1E63 Wired Controller

The BRC1E63 is a wall-mounted wired controller designed to provide convenient access to important air-conditioning functions. It gives occupants a central control point for a compatible Daikin ducted system. However, package inclusions can vary, so the controller should only be considered included when it is specifically stated on the accepted quotation.

Optional Wi-Fi control, advanced zoning interfaces, additional room-temperature sensors and building-management connections require separate compatibility checks. Discuss these requirements with the installer before purchasing additional accessories.

Suitable Applications

The Daikin FDYAN160AV1 and RZA160C2Y1 combination may suit large homes, multi-room residences, extensive open-plan layouts, offices, consulting facilities and selected light-commercial properties. The final equipment selection should always be supported by a professional heat-load assessment.

A heat-load calculation should consider insulation, ceiling height, window area, building orientation, occupancy, local climate and heat-producing equipment. These factors can significantly affect the required system capacity. Selecting equipment based only on floor area may result in an unsuitable installation.

Professional Ducted-System Design

A complete ducted system requires much more than selecting indoor and outdoor equipment. The installer must calculate the required airflow and determine appropriate duct sizes, outlet locations, return-air requirements and zoning arrangements. Refrigeration pipework, condensate drainage, electrical supply and outdoor-unit placement must also be assessed.

The RZA160C2Y1 outdoor unit requires an appropriate installation location with sufficient airflow, manufacturer-required clearances and access for future servicing. The final position must be approved by the installer after inspecting the property and considering site-specific requirements.

What Is Included?

This product listing covers the FDYAN160AV1 indoor unit and RZA160C2Y1 three-phase outdoor unit. Inclusion of the BRC1E63 wired controller remains subject to package confirmation. Ductwork, air outlets, return-air grilles, zoning components, refrigeration pipework, electrical work, drainage, mounting hardware, delivery and installation are not included unless specifically itemised.

Product photographs are representative and may not show the exact dimensions, electrical connections, cabinet design or model labelling of the supplied equipment. Always use the stated model numbers, written technical information and accepted quotation when checking an order.

Professional Installation and Warranty

The Daikin FDYAN160AV1 Three Phase system must be installed and commissioned by appropriately licensed professionals in accordance with Australian requirements and Daikin’s instructions. Correct installation is essential for the electrical supply, refrigeration circuit, drainage, ductwork, airflow and overall system operation.

Warranty eligibility and coverage are subject to Daikin Australia’s applicable terms, correct installation, permitted use and any registration or documentation requirements. Customers should retain the purchase invoice, installer information and commissioning records.

For manufacturer information, visit the official Daikin inverter ducted air-conditioning page. You can also browse our air-conditioning systems or contact Air Conditioning Trade for assistance.

Request a Quote for the Daikin FDYAN160AV1 Three Phase

Choose the Daikin FDYAN160AV1 Three Phase with the RZA160C2Y1 outdoor unit when your project requires a powerful 15.5kW three-phase ducted solution. Contact Air Conditioning Trade to discuss product availability, delivery and professional installation options. We can help assess whether this combination is appropriate for your property and prepare a tailored quotation.
