Daikin FDYAN60AV1 6.0kW Inverter Ducted System

The Daikin FDYAN60AV1 is a compact reverse-cycle inverter ducted air-conditioning system delivering 6.0kW nominal cooling capacity and 7.0kW nominal heating capacity. It is designed to provide discreet heating and cooling by concealing the indoor unit within a suitable roof or ceiling space and distributing conditioned air through professionally designed ductwork.

This single-phase package combines the FDYAN60AV1 concealed ducted indoor unit, RZA60C2V1 outdoor condenser and BRC1E63 wired wall controller. These components form the primary equipment required for a compatible Daikin inverter ducted installation.

Ductwork, zoning equipment, supply-air outlets, return-air components, refrigeration piping, electrical work and installation labour are not included unless they are expressly listed in the customer’s quotation.

Daikin FDYAN60AV1 package specifications

Brand	Daikin
Series	FDYAN Inverter Ducted
Indoor unit	FDYAN60AV1
Outdoor unit	RZA60C2V1
Wired controller	BRC1E63
Nominal cooling capacity	6.0kW
Nominal heating capacity	7.0kW
Power supply	Single phase
System type	Reverse-cycle inverter ducted
Refrigerant	R32

The Daikin FDYAN60AV1 must be selected according to the calculated heating and cooling requirements of the property. A qualified air-conditioning professional should confirm the required capacity, duct design and installation conditions before the equipment is ordered.

Discreet multi-room comfort

A ducted air-conditioning system keeps most of the equipment out of sight. The concealed indoor unit is generally installed in a suitable roof or ceiling space, while ductwork distributes conditioned air to selected rooms through ceiling, wall or floor outlets.

This arrangement provides a clean interior appearance because wall-mounted indoor units are not required in every room. The main visible components inside the property are normally the supply-air outlets, return-air grille and wall-mounted control equipment.

The 6.0kW capacity class may be suitable for certain smaller homes, apartments, townhouses or defined groups of rooms. However, capacity selection must not be based solely on floor area. Insulation, windows, ceiling height, room orientation, sun exposure, occupancy and local climate must also be considered.

Heating and cooling from one system

The FDYAN60AV1 package provides reverse-cycle cooling and heating. During warmer weather, the system can remove heat from the occupied areas. During colder conditions, it can reverse operation and provide heated air through the same ductwork and outlets.

Inverter technology enables the system to adjust its operating output according to changing demand. This allows the equipment to respond as the indoor temperature approaches the selected setting rather than relying exclusively on repeated full-power starting and stopping.

Actual efficiency and operating cost depend on the property, thermostat settings, zoning behaviour, weather conditions, duct quality, system maintenance and daily usage.

Compact concealed indoor unit

The Daikin FDYAN range is designed with a compact, low-profile indoor unit suitable for installation in appropriately sized roof spaces. Daikin states that the indoor units in its Inverter Ducted series have a low-profile height of 360mm or less, depending on the selected capacity. :chatgpt-content-reference{index=”0″}

Before purchasing the Daikin FDYAN60AV1, the installer must verify that the proposed ceiling or roof location has sufficient space for the indoor unit, duct connections, condensate drainage and future service access.

The indoor unit must not be permanently enclosed without a suitable access opening. Filters, drainage components, electrical connections and internal equipment may require inspection and servicing during the system’s operating life.

R32 refrigerant technology

The FDYAN60AV1 and RZA60C2V1 combination uses R32 refrigerant. Daikin identifies the 5.0–15.5kW models in its current Inverter Ducted range as R32 systems. :chatgpt-content-reference{index=”1″}

Refrigeration work must be completed by an appropriately licensed professional. The pipework must be correctly selected, insulated, pressure tested, evacuated and commissioned in accordance with Daikin’s current installation instructions.

Incorrect installation may reduce performance, cause reliability problems and potentially affect warranty eligibility.

BRC1E63 wired controller

The BRC1E63 wired wall controller provides a fixed interface for operating the ducted system. It allows the primary system settings to be managed from a convenient location within the property.

The system information provided identifies the BRC1E63 as the controller for this package. Before publishing a final package price, confirm that the controller is physically included rather than listed only as the recommended control option.

Advanced zoning controllers, Wi-Fi modules, additional temperature sensors and third-party smart-home integrations are not included unless specifically stated in the quotation.

Optional zoning configuration

A professionally designed zoning system can divide the property into separately controlled areas. This may allow conditioned air to be directed only to selected rooms rather than operating every outlet continuously.

The zone layout must reflect the property design, system capacity, airflow requirements and intended usage. Closing too many outlets without suitable airflow management may cause noise, performance problems or equipment faults.

Zoning controllers, zone motors, sensors and wiring are separate components unless expressly included in the equipment or installation quotation.

Ductwork design matters

Ductwork is a major part of the completed installation. Duct dimensions, insulation, layout, branch design, outlet selection and return-air sizing can directly influence airflow, noise, comfort and operating efficiency.

Poorly designed or damaged ductwork may cause uneven temperatures, excessive noise and unnecessary energy loss. The duct system should be designed, installed and balanced by experienced professionals.

Potential applications

The 6.0kW Daikin system may be considered for appropriately assessed applications such as:

• Smaller houses or apartments
• Selected townhouse layouts
• Groups of bedrooms and living spaces
• Compact residential zones
• Renovation or replacement projects
• Selected small office or professional areas

These are general examples only. A professional assessment is required to confirm whether the 6.0kW capacity is appropriate for a specific property.

What is included?

The standard equipment package includes:

• One Daikin FDYAN60AV1 concealed ducted indoor unit
• One Daikin RZA60C2V1 single-phase outdoor unit
• One Daikin BRC1E63 wired wall controller, subject to package confirmation

What is not included?

Unless expressly listed in your quotation, the following are not included:

• Supply and return-air ductwork
• Ceiling, wall or floor outlets
• Return-air grille and filter box
• Zoning controller, zone motors and additional sensors
• Refrigeration pipework and insulation
• Condensate drainage materials
• Electrical circuit, isolator and cabling
• Outdoor mounting bracket or concrete base
• Installation labour and commissioning
• Ceiling or building modifications

Professional installation required

The Daikin FDYAN60AV1 must be installed and commissioned by appropriately qualified and licensed professionals. The installer must confirm the equipment locations, duct design, electrical requirements, drainage, refrigeration pipe lengths and manufacturer clearances.

The outdoor condenser requires adequate airflow and service access. It should not be installed where discharged air can continually circulate back through the outdoor coil.

All work must comply with Daikin’s instructions, applicable Australian standards, electrical requirements, refrigerant-handling regulations and local building rules.

Warranty information

The equipment may qualify for Daikin Australia’s applicable manufacturer warranty when purchased through an approved supply channel and installed, commissioned, operated and maintained according to Daikin’s requirements.

Check the current warranty documentation for the applicable period, residential or commercial eligibility, registration requirements and exclusions. Keep the invoice, installer’s details, commissioning documents, serial numbers and model information.

Official Daikin product information

For current features, brochures and technical documents, visit the official Daikin Inverter Ducted product page.

Frequently asked questions

Does this system include ductwork?

No. Ductwork, outlets, return-air components and zoning equipment are separate unless the quotation expressly includes them.

Is installation included?

No. The listing is for the equipment package unless an installation service is specifically included in the quotation.

Does the package include the BRC1E63 controller?

The supplied package information identifies the BRC1E63 controller. Confirm its inclusion with the supplier before finalising the listing or order.

Is 6.0kW suitable for my property?

A professional heat-load assessment is required. Floor area alone cannot confirm whether the system has sufficient capacity.

Is this a single-phase system?

Yes. The supplied combination identifies the FDYAN60AV1 and RZA60C2V1 package as single-phase equipment.

Request a Daikin ducted-system quotation

Browse our complete range of air-conditioning systems, or contact Air Conditioning Trade for availability and assistance preparing a package around the Daikin FDYAN60AV1.

Specifications, package contents and warranty conditions may change. Product images may be representative. Confirm current Daikin documentation and quotation inclusions before ordering.

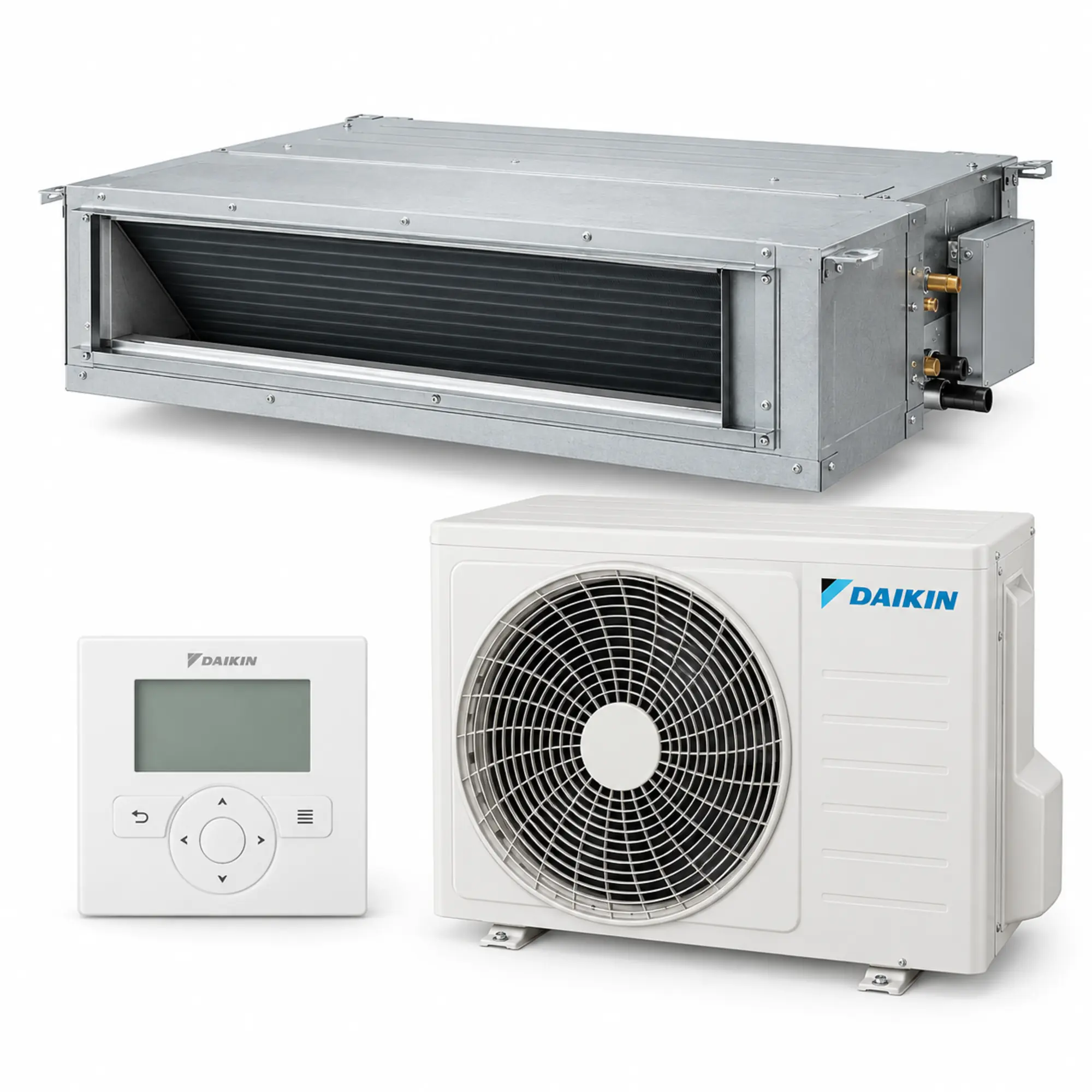

Product image is representative only. Actual equipment appearance, controller design and dimensions may vary.
