Daikin FDYA140AV19 Single Phase 14kW Premium Inverter Ducted System

The Daikin FDYA140AV19 Single Phase ducted air conditioning combination brings together the FDYA140AV19 concealed indoor unit, RZAS140C2V1 outdoor unit and BRC1E63 wired controller. With rated cooling capacity of 14.0kW and rated heating capacity of 16.5kW, it provides reverse-cycle operation through a professionally designed duct network.

This listing is for customers comparing equipment for a new installation, renovation or replacement project. Choosing the correct air conditioner involves more than matching a capacity number. The building layout, insulation, glazing, ceiling space and intended room use all influence the final selection. A site assessment helps establish whether this combination is appropriate and identifies the additional materials and work required.

Complete Indoor and Outdoor Model Combination

The equipment combination listed here comprises the FDYA140AV19 indoor unit, RZAS140C2V1 outdoor unit and BRC1E63 wired controller. Keep these model references together when requesting a quotation or comparing proposals so that each supplier is pricing the same equipment.

For replacement work, provide the model numbers of the existing indoor and outdoor units as well. An installer should assess whether existing ducts, electrical infrastructure, refrigerant pipes and controls can be retained. Reusing components requires an assessment of their condition, dimensions and compatibility with the proposed installation.

Key Product Specifications

Brand	Daikin
Product range	Premium Inverter Ducted
Indoor model	FDYA140AV19
Outdoor model	RZAS140C2V1
Controller specified	BRC1E63 wired controller
Rated cooling capacity	14.0kW
Rated heating capacity	16.5kW
Power supply	Single phase, 220–240V, 50Hz
Refrigerant	R32
Operation	Reverse-cycle heating and cooling
Indoor dimensions — H × W × D	400 × 1505 × 980mm
Outdoor dimensions — H × W × D	1430 × 940 × 320mm

Dimensions describe the equipment casing. Installation planning must also allow for the service access, airflow clearances, connections and supporting arrangements specified in the applicable installation instructions.

Premium Inverter Performance

This combination belongs to Daikin’s Premium Inverter Ducted range. Inverter operation adjusts compressor output as demand changes. Actual electricity consumption depends on operating conditions, temperature settings, building performance and installation design, so a rated capacity figure should not be treated as an estimate of hourly electricity use.

For a useful comparison between quotations, consider the complete proposal. Equipment selection, duct insulation, airflow balance and control arrangements all deserve attention. A well-selected air conditioner still needs a suitable distribution system to deliver conditioned air effectively to the rooms it serves.

Single-Phase Electrical Requirements

The specified outdoor model uses a single-phase supply. Before ordering, have the electrical requirements assessed for your property. The presence of single-phase power alone does not establish that the existing circuit, switchboard or available supply capacity is suitable for this installation.

Ask your quotation provider to identify the electrical work included in the proposal. Depending on the property, this may involve a dedicated circuit, an outdoor isolator, cable routing or changes at the switchboard. Any required work should be clearly described so that the quoted scope can be compared accurately.

Discreet Ducted Comfort Throughout Selected Rooms

A ducted installation distributes conditioned air through ducts and room outlets, with the indoor equipment concealed in a suitable installation space. This arrangement allows the visible parts of the system to be planned around your interior, including the position and appearance of supply outlets and the return-air grille.

Outlet placement should consider room shape, furniture and the areas people occupy. Return-air positioning also needs careful planning. Air must have a suitable path back to the system, including when internal doors are closed. Discuss these details during the design stage so the proposed layout supports the way you use your home.

No fixed floor-area coverage is promised for this model. Two homes with similar floor areas can have different heating and cooling requirements because of sun exposure, window size, insulation and other building characteristics. Professional load assessment provides a better basis for selection.

Optional Zoning and Control Planning

If you want to operate different areas at different times, discuss zoning during the quotation process. Bedrooms, living areas and workspaces may have different schedules, and a suitable zoning design can reflect those patterns. The installer must assess the available control options and the airflow requirements of the proposed arrangement.

Additional zoning hardware, dampers, sensors and zone controllers should be separately identified in the quotation where required. The BRC1E63 controller specified in this listing does not, by itself, establish that a complete zoning package is included. Confirm the proposed number of zones, how they will be controlled and any restrictions on operation.

For a replacement project, have existing zone components checked before assuming they can be retained. Compatibility and condition matter, and any proposed reuse should be documented in the installation scope.

BRC1E63 Wired Controller

The controller specified for this equipment combination is the Daikin BRC1E63. A wired wall controller provides a fixed operating point for the system. Its location should be considered alongside room access, visibility and the control configuration chosen by your installer.

At handover, ask for a practical demonstration of the controls installed at your property. This should cover everyday operation, temperature adjustment and any scheduling or additional functions configured for the system. If separate zoning controls are fitted, make sure you understand how those controls work with the main air conditioner.

Professional System Design and Installation Planning

Before selecting this combination, provide a floor plan and explain which rooms you want to condition. Include information about ceiling heights, large windows, roof construction and any planned renovations. These details help the installer assess the load and establish a practical duct layout.

The indoor installation needs adequate space for the unit, ducts, drainage and future maintenance. Access should be checked before equipment is ordered, especially where roof openings, narrow passages or structural members could affect delivery and positioning. A proposal should explain how the equipment will be supported and accessed for servicing.

Duct routes also need attention. Restricted paths, excessive bends and limited space can affect the design. The installer should select appropriate duct sizes and assess the required airflow to each area. During commissioning, the completed installation should be checked against the intended operating arrangement.

RZAS140C2V1 Outdoor Unit Positioning

The outdoor unit location should be assessed for airflow, service access and a suitable supporting base. Its published casing dimensions are only one part of that assessment. Required clearances must be taken from the applicable installation instructions and considered alongside surrounding walls, fences and landscaping.

Discuss the proposed position before installation begins. Consider nearby windows, paths and frequently occupied outdoor areas, together with refrigerant pipe routing and drainage. Future additions such as screens or garden structures should also preserve the space needed for operation and maintenance.

What Is Included in This Listing?

The equipment references for this listing are the FDYA140AV19 indoor unit, RZAS140C2V1 outdoor unit and BRC1E63 wired controller. Your written quotation should confirm the supplied package, stock availability and any accessories included with the order.

Ductwork, outlets, return-air components, zoning equipment, refrigerant piping, mounting materials, electrical work and installation labour must be confirmed in the quoted scope. For replacement projects, ask whether removal and disposal of the existing equipment are included. Clear inclusions make it easier to understand the total project cost.

Professional Installation and Warranty Information

Arrange installation through appropriately qualified professionals. The work should follow the relevant manufacturer instructions and applicable requirements. Keep the quotation, invoice, model details and commissioning information together so they are available when arranging service or making a warranty enquiry.

Confirm the applicable manufacturer warranty terms before purchase, including any conditions associated with the intended application. Where installation workmanship coverage is offered, ask for those terms in writing as well. Equipment warranty and installation service arrangements should both be clear in the final documentation.

Routine Care and Ongoing Maintenance

Request maintenance instructions specific to your completed installation. These should explain how to access and clean the fitted return-air filter, how often to check it and when professional servicing is recommended. Filter arrangements can vary between installations, so follow the guidance supplied for your system.

Keep accessible airflow paths clear and monitor the system for changes in operation. Reduced airflow, unusual noise, water leakage or persistent controller messages should be assessed by a qualified technician. Recording when a problem occurs can help the service provider investigate it.

Request a Quote for Your Daikin Ducted System

To enquire about the Daikin FDYA140AV19 Single Phase ducted system, provide your location, floor plan and whether the project is a new installation or replacement. For an existing system, photographs and model numbers can help clarify the starting point.

Contact Air Conditioning Trade to request pricing, availability and a clearly defined equipment or installation quotation. You can also browse our air conditioning range to compare other available models.

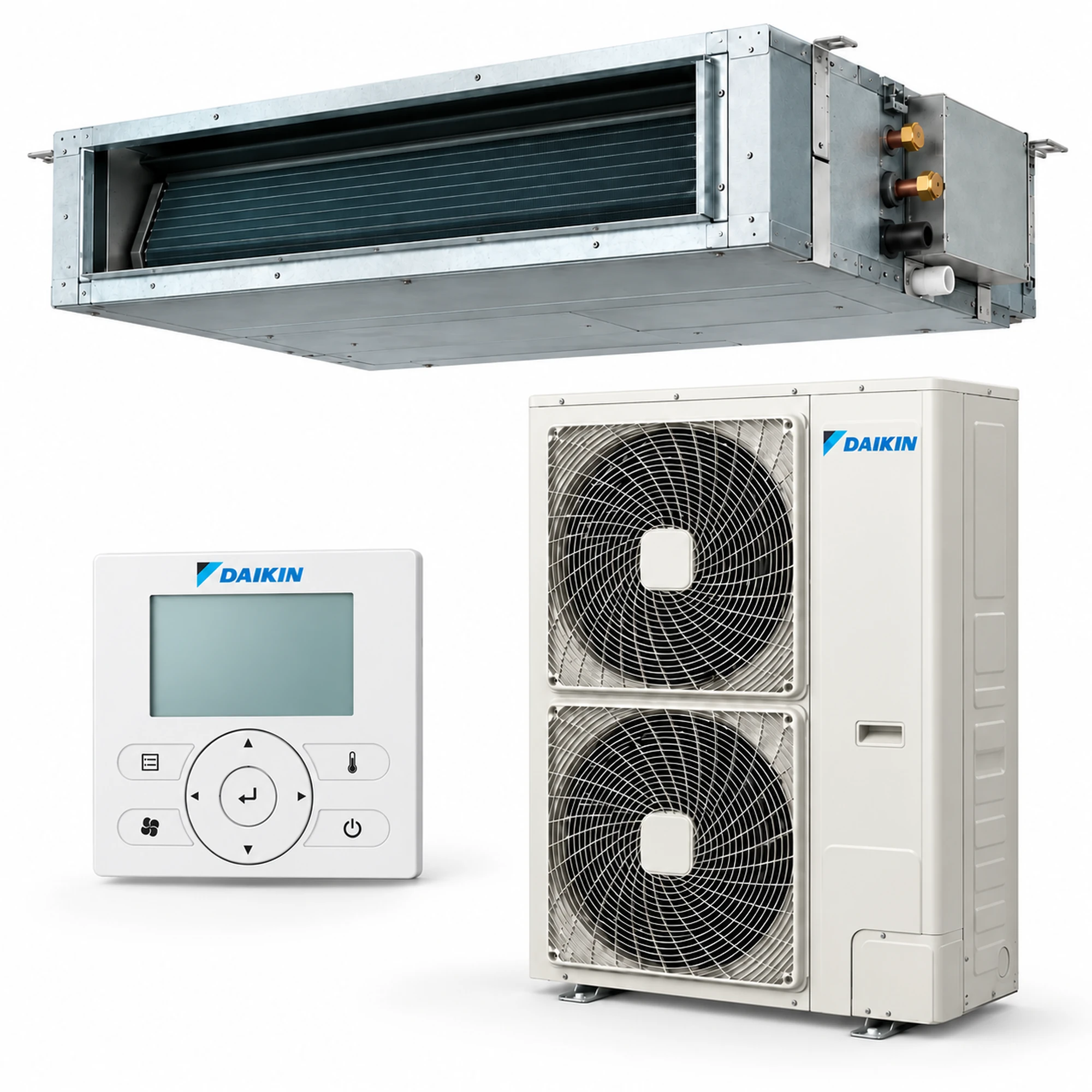

Product image is a representative illustration. Actual equipment appearance and minor cabinet details may vary. Confirm the final equipment selection, supplied components and installation scope in your written quotation.
