Daikin FDYA100AV19 Single Phase 10.0kW Ducted Air Conditioner

The Daikin FDYA100AV19 Single Phase Premium Inverter ducted air conditioner provides reverse-cycle comfort with 10.0kW rated cooling capacity and 12.5kW rated heating capacity. This combination pairs the concealed FDYA100AV19 indoor unit with the RZAS100C2V1 outdoor unit. The package specified for this listing also includes the BRC1E63 Nav Ease wired wall controller.

A professionally designed ducted installation distributes conditioned air through outlets positioned in the selected rooms. The main indoor equipment remains concealed in a suitable ceiling or services space, helping maintain a clean interior appearance. This makes ducted air conditioning an option for projects where central control and discreet equipment placement are preferred.

Complete FDYA100AV19 and RZAS100C2V1 Combination

This listing identifies the FDYA100AV19 indoor unit, RZAS100C2V1 outdoor unit and BRC1E63 wired controller together. The equipment pairing belongs to Daikin’s Premium Inverter Ducted range and uses R32 refrigerant. It requires a compatible single-phase electrical supply.

When comparing equipment quotations, check the complete model numbers rather than the capacity alone. Daikin offers different ducted ranges and electrical configurations, and similarly sized systems are not automatically interchangeable. The final written quotation should identify each supplied component, together with the accessories and services included in the agreed scope.

Key Product Specifications

Brand	Daikin
Product Range	Premium Inverter Ducted
Indoor Unit	FDYA100AV19
Outdoor Unit	RZAS100C2V1
Controller	BRC1E63 Nav Ease wired wall controller
Rated Cooling Capacity	10.0kW
Rated Heating Capacity	12.5kW
Refrigerant	R32
Power Supply	Single phase, 220–240V, 50Hz
System Type	Reverse-cycle Premium Inverter ducted air conditioner

Premium Inverter Performance

The Daikin FDYA100AV19 Single Phase system uses inverter operation to vary compressor output as heating and cooling demand changes. Appropriate capacity selection and commissioning help the equipment respond to the building’s requirements. Rated heating and cooling capacities describe performance under specified test conditions rather than a guaranteed output in every installation or weather condition.

For a practical comparison between systems, ask your installer how the proposed equipment relates to your property’s heat load. Consider the rooms that need conditioning at the same time, the intended zone combinations and the local climate. Selecting a larger capacity without assessing these factors does not automatically produce a better installation.

Heating and cooling capacity should also be distinguished from electrical consumption. The 10.0kW cooling rating describes thermal output, not a constant 10.0kW electricity draw. Actual consumption varies with equipment operation, outdoor conditions, thermostat settings and the building’s demand. Request project-specific advice if running costs are an important part of your selection.

Single-Phase Electrical Requirements

This model combination requires a single-phase 220–240V, 50Hz electrical supply. A licensed electrician should assess the property’s electrical service, switchboard and proposed air-conditioning circuit before installation. Having single-phase power available does not establish that the existing wiring or circuit protection is suitable for the new equipment.

The electrical scope should identify required cabling, protection, isolation and any switchboard alterations. These items should be included in the installation quotation or clearly assigned to another licensed contractor. The system must be connected according to Daikin’s instructions and applicable Australian requirements; it is not equipment intended for connection to an ordinary household power outlet.

Discreet Ducted Comfort

The concealed indoor unit supplies conditioned air through a duct network connected to outlets in the chosen areas. In a typical ceiling installation, the supply-air outlets, return-air grille and controller are the primary components visible inside the occupied rooms. Outlet locations can be coordinated with the room layout during system design.

The installer should inspect the available ceiling space and equipment access route before finalising the installation. Structural elements, existing lighting, plumbing and other services can affect the proposed layout. Space must also remain available for future inspections and servicing. A clear installation plan helps establish where the unit, ducts and access points will be located.

Room coverage cannot be confirmed from a capacity label alone. Two homes with similar floor areas can have different requirements because of insulation, glazing, orientation and ceiling height. A heat-load assessment provides a better basis for determining whether this 10.0kW combination is appropriate for the areas you want to condition.

Optional Zoning and Controls

A compatible zoning arrangement can divide the duct network into selected areas, allowing dampers to open or close according to the chosen controls. A professionally designed installation may separate living spaces and bedrooms, or group rooms according to their use. The appropriate layout depends on the property and the required airflow.

Zoning does not mean every room can necessarily operate independently. The installer must establish suitable zone combinations and maintain the airflow required by the equipment. Closing too many outlets or zones without a suitable design can affect operation. Ask for a clear explanation of the permitted settings and how the proposed zoning arrangement should be used.

Zone dampers, sensors, control boards, smart controllers and Wi-Fi interfaces are additional components unless included in the quotation. Compatibility should be confirmed before accessories are ordered. The BRC1E63 wired controller alone should not be described as providing a complete zoning system or built-in Wi-Fi connectivity.

BRC1E63 Wired Controller

The specified BRC1E63 Nav Ease controller provides a fixed wall-mounted control point with a backlit display and weekly scheduling. It offers temperature-limit settings, a countdown timer, key lock and fault self-diagnosis. Available functions depend on the connected equipment and its configuration.

Discuss the controller location with your installer so it is convenient to access and use. At handover, ask for a demonstration of operating modes, temperature selection and scheduling. Understanding the controls helps you establish a routine and makes it easier to describe any operating concerns if professional assistance is later required.

Professional System Design

A complete ducted installation requires coordinated planning of the equipment, ductwork, outlets, return air, refrigerant pipework, drainage and electrical connections. The installer should assess insulation, glazing, orientation, occupancy and the spaces that will operate together. The equipment choice should follow this assessment rather than a general estimate based only on bedroom count.

Correct duct sizing and airflow balancing are important parts of the installation. Existing ductwork should be inspected before it is reused for a replacement system. Its condition, insulation, layout and capacity may influence whether it remains suitable. Replacing the indoor and outdoor equipment does not automatically resolve problems caused by an unsuitable existing duct arrangement.

RZAS100C2V1 Outdoor Unit

Daikin’s original product illustration for the RZAS100C2 model family shows a tall outdoor cabinet with two vertically stacked fans. This is a different cabinet arrangement from the smaller single-fan outdoor units used with some lower-capacity systems. The outdoor model number should therefore be checked when selecting equipment and product images.

The outdoor unit requires suitable mounting, airflow clearances and servicing access according to Daikin’s installation instructions. The installer should assess the proposed position, nearby obstructions and the route to the indoor equipment. Discuss how the placement will fit around paths, fences, windows and other services before the installation scope is finalised.

What Is Included?

The equipment package specified for this listing consists of the FDYA100AV19 concealed indoor unit, RZAS100C2V1 outdoor unit and BRC1E63 Nav Ease wired controller. The accepted quotation confirms the final supplied items, their quantities and any additional components requested for the project.

Ductwork, supply-air outlets, return-air grilles, zoning equipment, Wi-Fi interfaces, refrigerant pipework, drainage materials, electrical work, mounting hardware, delivery and installation are additional unless expressly itemised. Compare quotation inclusions carefully so you understand the difference between equipment supply and a complete installed-system scope.

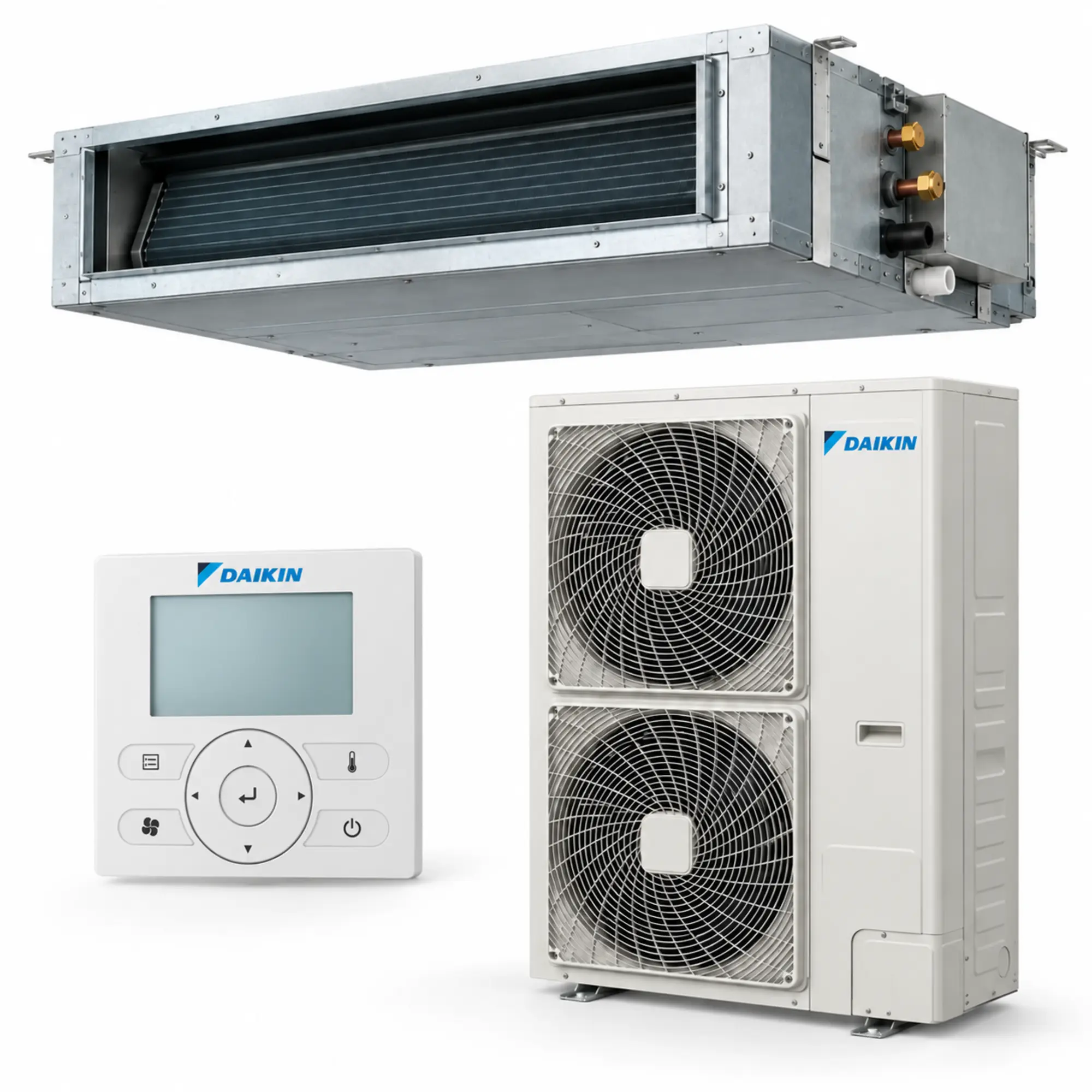

The product image combines manufacturer illustrations of the indoor unit, outdoor model family and controller. It is intended to help identify the equipment arrangement. Image proportions should not be used to determine installation dimensions or clearances. Refer to the exact model numbers and manufacturer documentation when confirming installation requirements.

Professional Installation and Warranty

The Daikin FDYA100AV19 Single Phase system should be installed and commissioned by appropriately licensed professionals following Daikin’s instructions and applicable Australian requirements. The completed installation should be checked for correct operation, and relevant documentation should be provided with an explanation of the controls.

Manufacturer warranty coverage is subject to Daikin Australia’s applicable terms and the installation’s use and circumstances. Confirm the relevant coverage before ordering, particularly for commercial applications. Any installer workmanship warranty should be identified separately so equipment coverage and installation responsibilities are clearly understood.

For manufacturer information, visit the official Daikin Premium Inverter Ducted page. You can also browse our air-conditioning systems or contact Air Conditioning Trade for assistance.

Routine Care and Everyday Operation

Follow the supplied operating instructions and your installer’s maintenance guidance. Ask where the return-air filter is located, how it should be cleaned and how often it should be checked for your conditions. Keep supply outlets clear and arrange professional servicing as required. Electrical and refrigerant components should only be accessed by qualified personnel.

Use scheduling to suit your routine and seek advice on practical temperature settings. If comfort changes noticeably or the controller displays a fault, record the symptoms and contact a service professional. Clear information about when the issue occurs can help the technician assess the installation and identify the appropriate next step.

Request a Quote for the Daikin FDYA100AV19 Single Phase

Contact Air Conditioning Trade for pricing and availability on the Daikin FDYA100AV19 Single Phase 10.0kW Premium Inverter Ducted System. Provide your project location, whether the work is a new installation or replacement, and any control accessories you require so the equipment and delivery scope can be clearly quoted.

Before placing an order, confirm the proposed combination with your installation professional and check the complete model numbers against the quotation. A clearly defined scope helps establish what will be supplied, what additional work is required and how the selected equipment will serve your property.
