Daikin FBA125BVMA 12.5kW Premium Slimline Ducted System

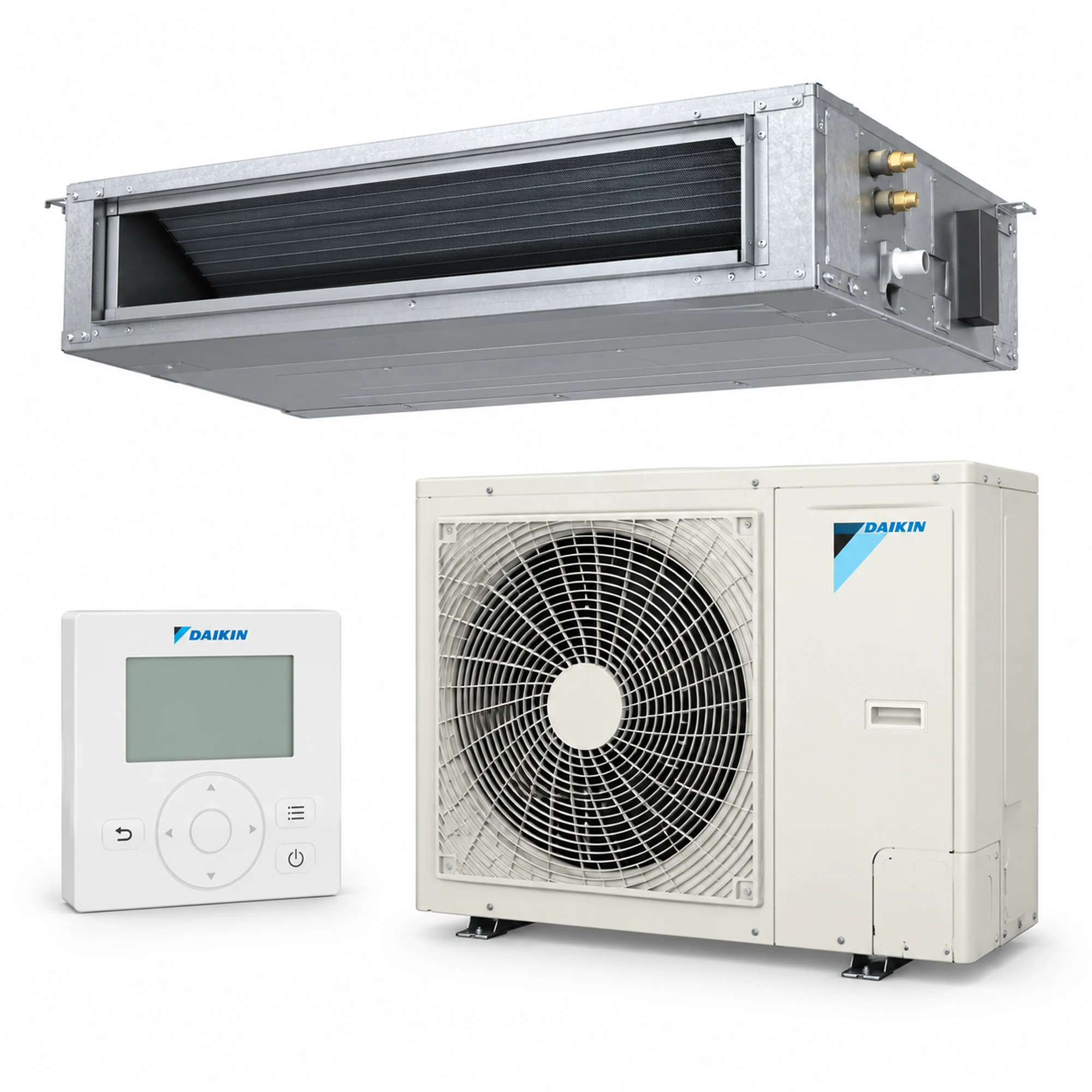

The Daikin FBA125BVMA Premium Slimline ducted system provides 12.5kW rated cooling capacity and 15.0kW rated heating capacity. This equipment combination pairs the FBA125BVMA indoor unit with the RZAV125F2V1 outdoor unit and BRC1E63 wired wall controller. It features inverter technology, reverse-cycle operation, R32 refrigerant and a single-phase power supply.

A ducted installation distributes conditioned air through a network of ducts and outlets while concealing the indoor equipment in the ceiling space. This approach allows heating and cooling to be planned around the selected areas of a property while maintaining a consistent interior appearance. Correct sizing, suitable installation access and a carefully designed duct network are important parts of the final result.

Daikin FBA125BVMA Equipment Combination

This listing identifies the indoor unit, outdoor unit and controller together so you can request a quotation for a clearly defined combination. Use the complete model numbers when discussing the equipment with your installer or comparing quotations from different suppliers.

Before ordering, confirm that the selected combination is suitable for your building and intended usage. The quotation should identify the supplied equipment, installation work and any additional accessories. A clear written scope helps establish what is included and makes it easier to compare offers fairly.

Technical Specifications

Brand	Daikin
Range	Premium Inverter Slimline Ducted
Indoor model	FBA125BVMA
Outdoor model	RZAV125F2V1
Controller	BRC1E63 wired wall controller
Rated cooling capacity	12.5kW
Rated heating capacity	15.0kW
Operation	Reverse cycle: heating and cooling
Technology	Inverter
Refrigerant	R32
Power supply	Single phase, 220–240V, 50Hz
Indoor dimensions, H × W × D	245 × 1400 × 800mm
Indoor unit weight	47kg
Outdoor dimensions, H × W × D	870 × 1100 × 460mm
Outdoor unit weight	95kg

Low-Profile Indoor Cabinet for Ceiling Spaces

The Daikin FBA125BVMA has a low-profile indoor cabinet that can be considered for projects where available ceiling height is restricted. Its width and depth must also be checked against the proposed location, structural members and nearby building services.

The cabinet dimensions do not represent the complete installation space required. Your installer needs suitable allowances for duct connections, supports, refrigerant pipes, drainage, insulation and electrical access. Future servicing must also be considered before the surrounding ceiling is completed.

Daikin specifies ceiling-space installation for these R32 ducted indoor units; they are not intended for underfloor installation. For a renovation, arrange an inspection before committing to the equipment. For a new build, coordinate the air conditioning layout with the ceiling and structural plans early.

Heating and Cooling Through One Ducted Installation

The Daikin FBA125BVMA provides reverse-cycle heating and cooling through the same installation. This gives you a central air conditioning option for seasonal comfort in the areas included in the system design.

Explain how the property is occupied when discussing your requirements. Living areas used throughout the day may have different priorities from bedrooms occupied mainly at night. A home office, open-plan area or room with extensive glazing may also need particular attention.

The appropriate equipment capacity depends on the building’s heating and cooling load. Insulation, orientation, ceiling height, window area, shading and occupancy all influence that load. A simple room count should not replace a properly considered assessment.

Premium Inverter Technology

The Daikin FBA125BVMA combination uses inverter technology, allowing compressor output to vary with demand within the equipment’s operating limits. The required heating or cooling output can change as indoor conditions and outdoor temperatures change.

Actual electricity consumption depends on the installation and its operating conditions. Rated heating and cooling capacities describe thermal output under specified test conditions; they should not be interpreted as continuous electrical consumption figures.

Discuss your expected operating hours and preferred temperature settings with the installer. Suitable shading, insulation and a well-planned duct network are also relevant when considering comfort and overall system performance.

Single-Phase Power Supply

This Daikin FBA125BVMA listing uses the single-phase RZAV125F2V1 outdoor model. Confirm the available electrical supply and proposed circuit before ordering, particularly when replacing equipment with a different electrical arrangement.

A qualified electrician should assess cabling, protection and isolation requirements against the manufacturer’s installation instructions. Existing electrical infrastructure needs checking rather than being assumed suitable because it previously supplied another air conditioner.

Discreet Air Distribution Around Your Property

A Daikin FBA125BVMA ducted installation can be planned with supply-air outlets positioned around the selected conditioned areas. Visible grilles and diffusers can be coordinated with the ceiling layout, lighting and interior finishes.

Outlet placement should support useful air movement through each room. Furniture positions and occupied areas should be considered when deciding where air will be delivered. Return-air placement is equally important because air needs an effective path back to the indoor equipment.

Tell your installer about rooms exposed to strong afternoon sun, large windows or unusual ceiling heights. These areas may have different airflow requirements from other rooms, even when their floor areas are similar.

BRC1E63 Wired Wall Controller

The Daikin FBA125BVMA equipment combination includes the BRC1E63 wired wall controller. A dedicated wall-mounted interface provides an accessible location for managing compatible system operation.

Agree on the controller position before installation begins. Consider visibility and ease of access for the people using the system. If additional control functions are required, ask your installer to identify the compatible accessories and explain exactly how the completed installation will operate.

Optional Zoning and Control Accessories

If you are considering zoning with the Daikin FBA125BVMA, request an assessment alongside the duct design. The proposed arrangement must use suitable components and maintain the airflow required by the air conditioning equipment.

Explain which rooms you want to operate together and which areas you would prefer to manage separately. Your installer can assess zone sizes, damper arrangements and control compatibility against your intended usage.

Zoning hardware, additional controllers and remote-access accessories should be itemised separately where required. Their inclusion should be confirmed in the quotation rather than assumed from the presence of a standard wired controller.

Correct Duct Design and Replacement Planning

When considering the Daikin FBA125BVMA for a replacement installation, have the existing duct network inspected. Duct dimensions, insulation, condition and layout all influence whether existing components can be reused.

The installation design should account for the selected equipment and the building layout. Duct lengths, bends, branches, outlets and return-air arrangements affect how air reaches the rooms. These factors deserve attention alongside the nominal heating and cooling capacities.

Provide a floor plan where available and identify any areas that have been difficult to heat or cool. Photographs of existing equipment and access points can support the initial discussion, although a site inspection may still be needed to confirm the installation scope.

Outdoor Unit Placement and Access

The Daikin FBA125BVMA is paired here with the RZAV125F2V1 outdoor unit. Its proposed location should provide suitable support, ventilation, installation clearances and access for future servicing.

Discuss nearby paths, windows, fences and other equipment when deciding on placement. The installer should assess refrigerant pipe routing, electrical access and any heating-mode drainage provisions relevant to the site. Cabinet dimensions alone do not establish the total space required.

Understanding Your Installation Quotation

A useful quotation identifies both the equipment and the work required to complete the installation. Ask whether it includes ductwork, outlets, return-air components, refrigerant piping, drainage, electrical work, mounting arrangements and commissioning.

For a replacement project, confirm whether removal and disposal of the existing equipment are included. Access restrictions, building modifications and optional accessories should also be recorded where applicable. A clear scope makes it easier to understand the final price and compare quotations consistently.

Professional Installation and Handover

Arrange installation of the Daikin FBA125BVMA through appropriately qualified professionals following the applicable manufacturer instructions. Refrigerant handling and electrical work should be completed by people holding the relevant qualifications.

At handover, request operating guidance and the appropriate installation documentation. Confirm current manufacturer warranty terms, eligibility and exclusions before purchase. Retain your purchase records, installation details and service documentation for future reference.

Maintenance and Service Access

Plan practical access to the return-air filter and indoor service area before surrounding ceilings and finishes are completed. Concealed equipment still requires maintenance, and suitable access makes routine care and professional servicing easier to arrange.

Follow the operating instructions for filter maintenance and discuss servicing requirements with your installer. Keep air outlets unobstructed and contact a qualified technician if you notice unusual operation or a persistent change in performance.

Explore Daikin Ducted Air Conditioning

Visit the official Daikin ducted air conditioning website for further manufacturer information. You can also browse our air conditioning range to compare other equipment options for your project.

Request a Quote for the Daikin FBA125BVMA

Contact Aircon Trade with your property location, floor plan and preferred installation timeframe. Include the model numbers of any existing equipment and explain which areas you want conditioned.

Use our contact page to request a quote for this Premium Slimline ducted system. Confirm the final equipment selection, installation scope and optional accessories before ordering.

Capacities are manufacturer-rated values. Suitability, availability, installation requirements, accessories and pricing are subject to assessment and quotation. Product images are representative illustrations.
