Product Identification

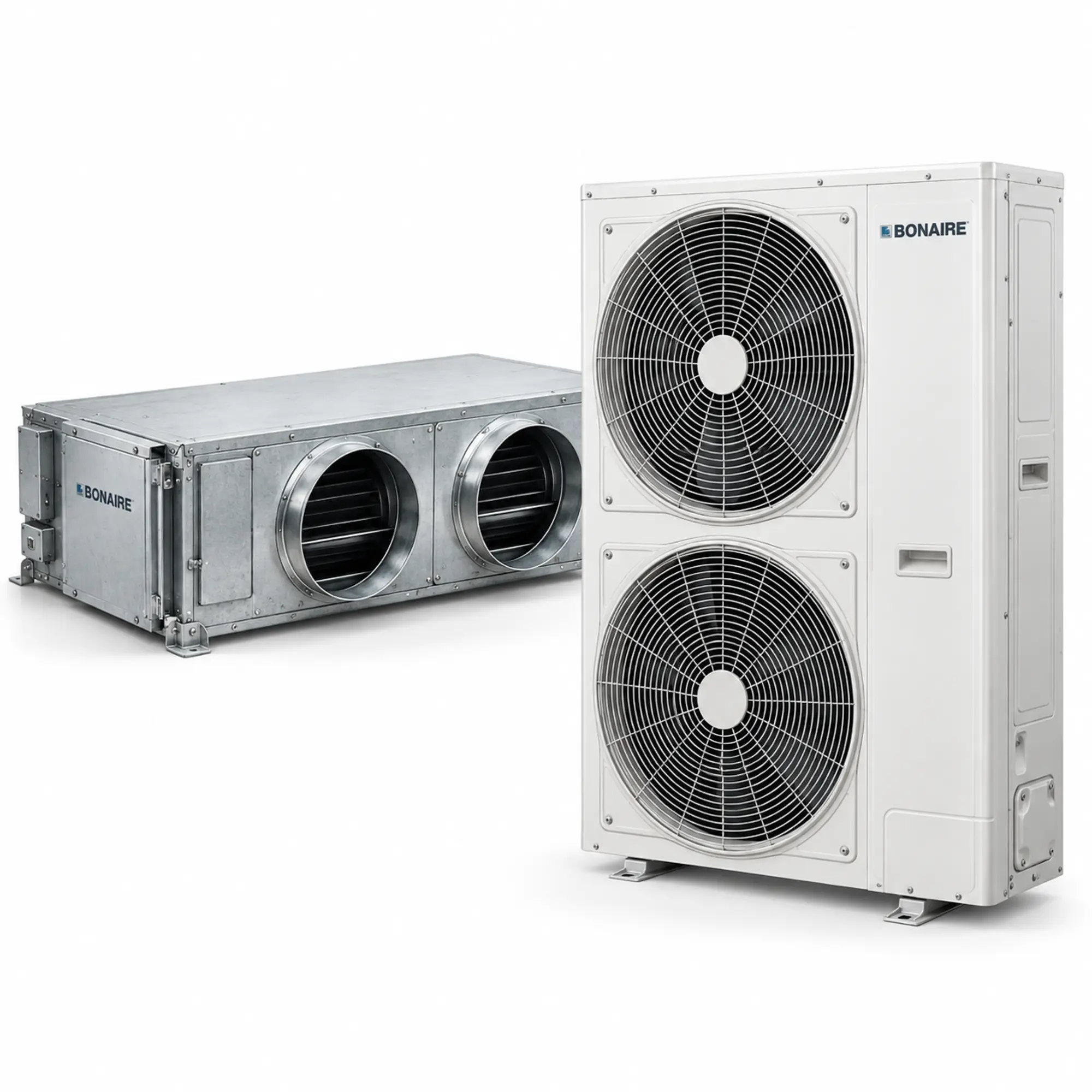

Bonaire Optima 14kW Ducted Reverse Cycle System – CTG140S1AI / CTG140S1AE

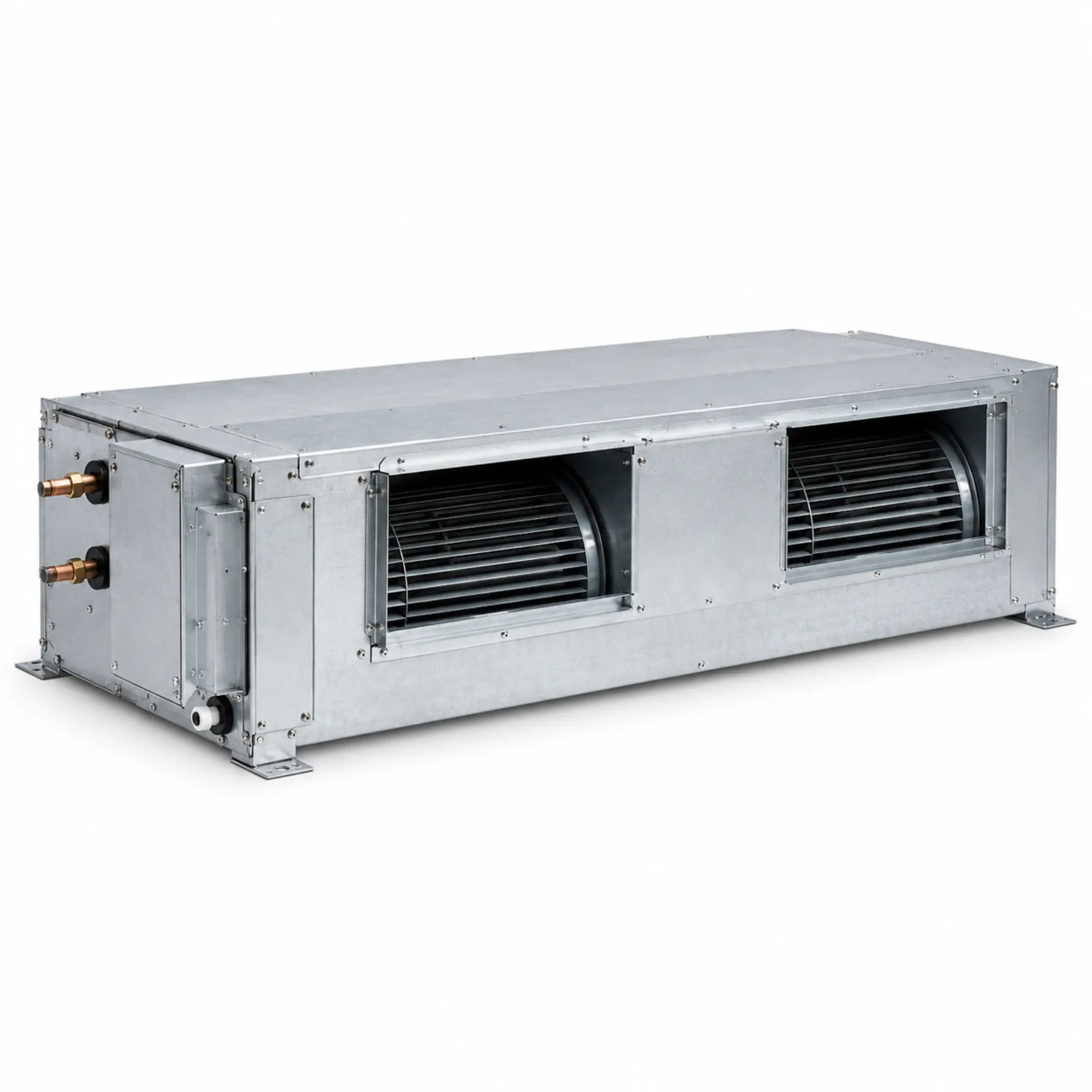

Indoor unit: CTG140S1AI |

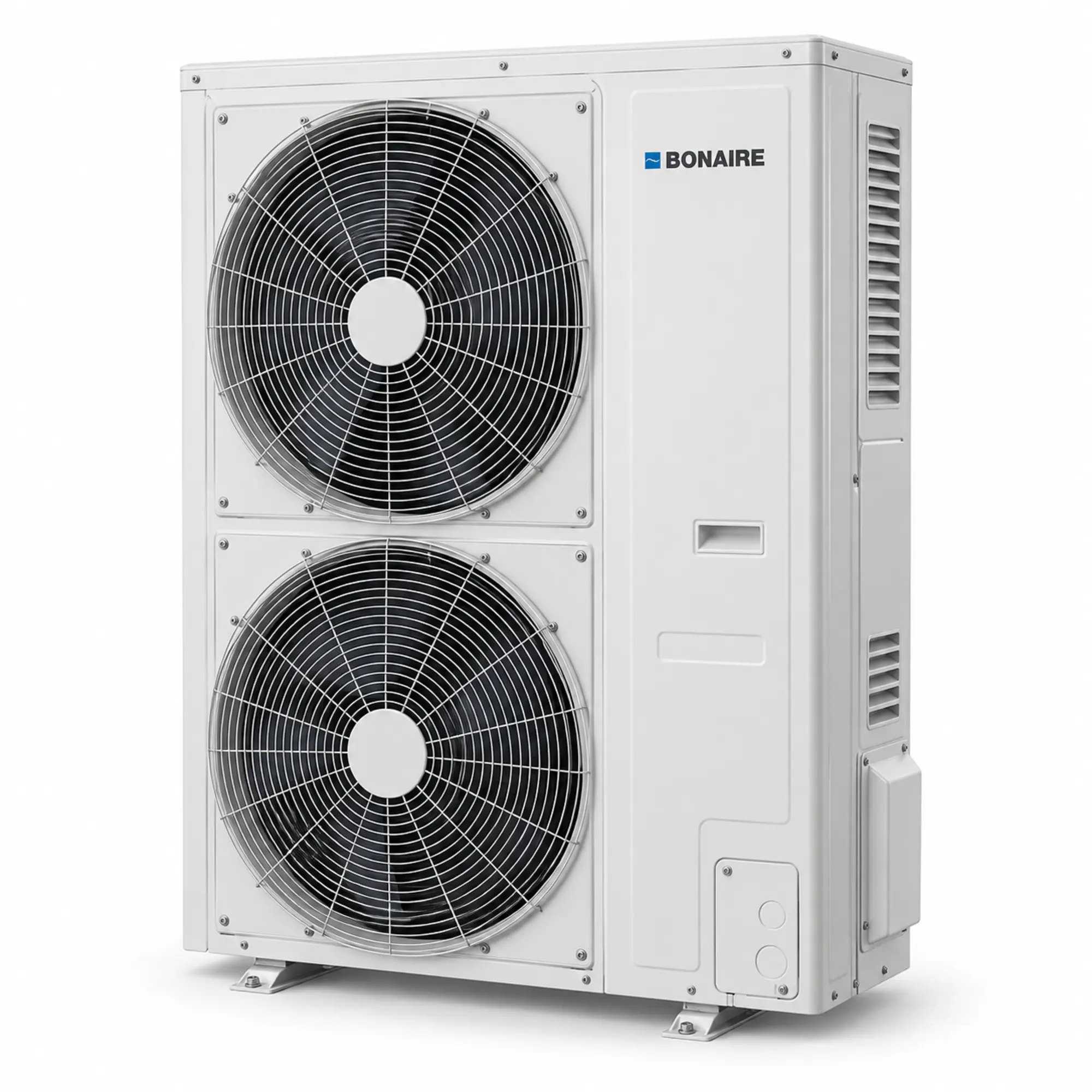

Outdoor unit: CTG140S1AE |
System type: R32 high-static ducted reverse cycle air conditioner
Bonaire 14kW Ducted System Overview
The Bonaire 14kW ducted system provides central reverse cycle heating and cooling through a concealed indoor fan-coil unit, matching outdoor unit and professionally designed duct network. It combines the CTG140S1AI indoor unit with the CTG140S1AE outdoor unit as one complete matched system.
With 14.0kW rated cooling capacity and 16.5kW rated heating capacity, this system is intended for appropriately sized whole-home applications and larger residential properties. Its higher airflow and capacity can support multiple rooms and zones when the system is correctly selected, designed and installed.
The indoor unit is normally concealed within a suitable ceiling or roof space. Conditioned air travels through insulated ductwork and enters each selected area through ceiling or wall outlets. This provides a clean interior appearance without requiring a visible wall-mounted indoor unit in every room.
The Bonaire Optima ducted range combines inverter technology, a high-efficiency DC motor, external static pressure adjustable up to 200Pa, R32 refrigerant and compatibility with optional Wi-Fi and suitable third-party zoning controls. It also incorporates eco mode, DRED capability and quiet night-mode operation.
Quick Highlights
- Cooling capacity: 14.0kW rated, with a 4.1–17.8kW operating range
- Heating capacity: 16.5kW rated, with a 6.0–19.2kW operating range
- High-static performance: Adjustable external static pressure up to 200Pa
- Maximum airflow: Up to 1,120 litres per second
- Smart-control capability: Optional Wi-Fi controller integration
- Zoning capability: Compatible with suitable third-party zoning controllers
- System design: High-efficiency DC motor and inverter compressor
- Refrigerant: R32 refrigerant
- Complete system: Indoor and outdoor units supplied as one matched combination
- Warranty: Seven-year parts and labour warranty, subject to Bonaire’s conditions
Why Choose the Bonaire 14kW Ducted System?
The Bonaire 14kW ducted system is designed for homeowners who want powerful, discreet climate control across several rooms or residential zones. The concealed installation keeps most equipment and ductwork out of sight while conditioned air is distributed through purpose-positioned outlets.
When combined with a suitable zoning system, occupants may be able to select which areas receive heating or cooling. This can provide greater flexibility than operating every area continuously. The installer must ensure that the zoning design maintains the minimum airflow required by the system.
Inverter technology allows the compressor to alter its output as demand changes. The published cooling range is approximately 4.1kW to 17.8kW, while the heating operating range is approximately 6.0kW to 19.2kW.
The system can therefore respond to factors such as outdoor temperature, active zones and household occupancy. Actual performance and energy consumption depend on the property, system design, installation quality, selected temperature and operating patterns.
Key Features
Powerful Whole-Home Comfort
The system provides 14.0kW rated cooling and 16.5kW rated heating for suitable larger residential applications.
High-Static Airflow
The Sirocco turbine fan design supports external static pressure adjustment up to 200Pa, helping move conditioned air through professionally designed ductwork.
High Airflow Capacity
The indoor unit provides airflow settings of approximately 1,120, 950 and 780 litres per second to support suitable larger duct networks.
DC Motor and Inverter Design
The high-efficiency DC indoor fan motor and inverter compressor allow the system to adjust operation according to changing heating and cooling requirements.
Optional Wi-Fi Integration
A compatible optional Wi-Fi controller can provide remote-control functionality. Wi-Fi equipment is not described as a standard inclusion and should be confirmed in the quotation.
Zoning Controller Compatibility
The system can integrate with suitable third-party zoning controllers. Zone motors, dampers, sensors and smart-control equipment may be separately supplied.
Flexible Modular Design
The modular indoor-unit configuration supports installation flexibility in suitable roof spaces. Access, structural support, clearances and future service access must be considered.
R32 Refrigerant
The system uses R32 refrigerant. Installation, commissioning and refrigerant handling must be completed by an appropriately licensed air conditioning professional.
Eco Mode and DRED Capability
Eco mode supports more economical operation, while DRED compatibility allows the system to participate in supported demand-response arrangements when correctly connected.
Quiet Night Mode
Quiet night mode reduces outdoor-unit operating noise when quieter operation is preferred. Actual sound levels depend on installation and operating conditions.
Industry-Leading 7-Year Warranty
Bonaire promotes a seven-year parts and labour warranty for eligible ducted reverse cycle systems. Warranty eligibility may depend on professional installation, registration, proof of purchase, servicing requirements and compliance with Bonaire’s current conditions. Retain all purchase, installation and maintenance documentation.
Ideal Applications
- Medium-to-large whole-home applications
- Larger single-storey houses with suitable roof space
- Homes containing multiple bedrooms and living areas
- New residential construction
- Major renovations and system replacements
- Properties requiring multiple conditioned zones
- Homes where concealed indoor equipment is preferred
The Bonaire 14kW ducted system must be selected through a professional heat-load assessment. Floor area alone cannot determine suitability. Insulation, windows, ceiling height, orientation, occupancy, outdoor conditions and duct losses must be considered.
Bonaire 14kW Ducted System Technical Specifications
Technical information for the Bonaire 14kW ducted system is provided below to assist with preliminary product comparison and installation planning.
| Specification | Details |
|---|---|
| Brand | Bonaire |
| Series | Optima Ducted Reverse Cycle High-Static |
| Indoor model | CTG140S1AI |
| Outdoor model | CTG140S1AE |
| Rated cooling capacity | 14.0kW |
| Cooling range | 4.1–17.8kW |
| Rated heating capacity | 16.5kW |
| Heating range | 6.0–19.2kW |
| Cooling input power | 3.85kW rated |
| Heating input power | 4.90kW rated |
| Maximum current | 30A |
| Indoor airflow | 1120 / 950 / 780 L/s |
| External static pressure | 50Pa standard, adjustable 0–200Pa |
| Indoor sound pressure | 48dB(A) |
| Indoor dimensions | 1510 × 945 × 380mm |
| Indoor net/gross weight | 66kg / 77kg |
| Outdoor dimensions | 1330 × 950 × 340mm |
| Outdoor sound pressure H/C | 58 / 59dB(A) |
| Outdoor night-mode level | 55dB(A) |
| Outdoor net/gross weight | 101kg / 107kg |
| Power supply | Single phase, 220–240V, 50Hz |
| Refrigerant | R32 |
| Liquid pipe size | 9.52mm (3/8 inch) |
| Gas pipe size | 15.88mm (5/8 inch) |
| Maximum pipe distance | 75m length / 30m height |
| Factory pre-charge | Up to 20 metres |
| Ambient cooling range | 16–50°C |
| Ambient heating range | -15–24°C |
Installation, Ductwork and Zoning
Professional design is essential for the Bonaire 14kW ducted system. The installer must calculate the building heat load and confirm duct sizes, zones, outlet positions, return-air arrangements, electrical requirements and available roof access.
The product includes the CTG140S1AI indoor unit and CTG140S1AE outdoor unit. Ductwork, outlets, return-air grilles, zone motors, smart controllers, sensors, electrical work and installation materials are separate unless expressly included in the quotation.
Optional Wi-Fi equipment and third-party zoning controls must be confirmed before ordering. Compatibility depends on the selected controller, zoning design and installation configuration.
Frequently Asked Questions
Does this product include both units?
Yes. One complete product includes the CTG140S1AI indoor unit and matching CTG140S1AE outdoor unit.
Are the ductwork and zoning equipment included?
Not unless they are expressly listed in the quotation. These components are selected as part of the individual installation design.
Does this system include Wi-Fi?
The system supports a compatible optional Wi-Fi controller. Confirm the controller and its cost before ordering.
Does this product have a seven-year warranty?
Bonaire promotes a seven-year parts and labour warranty for eligible systems. Professional installation, registration, servicing and current conditions apply.
Is installation included?
Installation is included only when clearly stated in the quotation. Ducted installation costs depend on the ductwork, zoning, controls, property access and electrical requirements.
Why Buy From Air Conditioning Trade?
Air Conditioning Trade supplies ducted air conditioning products to homeowners, installers and trade customers across Melbourne.
Request a personalised quote for the Bonaire 14kW ducted system, including current availability, Melbourne delivery, zoning options and professional installation assistance.
Manufacturer information:
View the Bonaire ducted reverse cycle range
Product specifications, accessories and warranty eligibility should be confirmed against current Bonaire documentation before purchase or installation.
