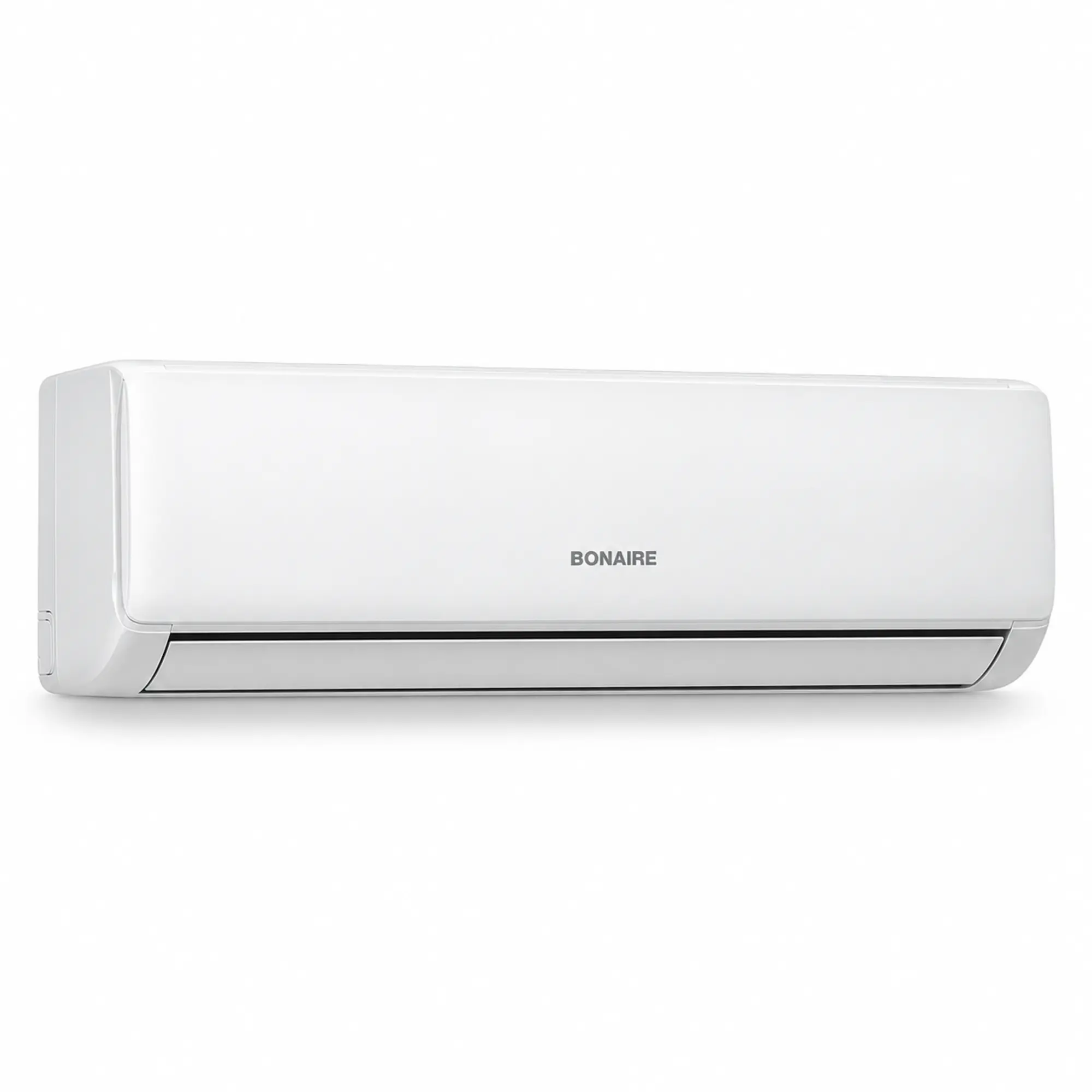

Bonaire MSS035S2AI 3.5kW Multi-Split Indoor Unit

The Bonaire MSS035S2AI is a 3.5kW wall-mounted indoor unit designed for use with a compatible Bonaire Optima S2 R32 multi-split outdoor condenser. It provides a flexible heating and cooling solution for selected bedrooms, home offices, consulting rooms and medium-sized residential spaces.

When included in an approved multi-split combination, the MSS035S2AI can operate as an individual indoor zone while sharing one outdoor condenser with other compatible Bonaire indoor units. This configuration can reduce the number of external condensers required around a property and create a cleaner, more organised installation.

This product is supplied as an indoor unit only. It cannot operate independently and is not a complete split-system package. A compatible Bonaire multi-split outdoor unit, refrigeration pipework, condensate drainage, electrical work and professional installation are required separately.

Bonaire MSS035S2AI product information

Brand	Bonaire
Series	Optima S2 Multi-Split
Indoor model	MSS035S2AI
Capacity class	3.5kW
Unit style	Wall-mounted indoor unit
System configuration	Reverse-cycle multi-split
Compatible refrigerant system	R32
Product supplied	Indoor unit only

The Bonaire MSS035S2AI must be matched with an approved outdoor unit and compatible indoor-unit combination. Always confirm the complete system design before purchasing the equipment.

Heating and cooling for selected medium-sized rooms

The 3.5kW capacity class may suit selected bedrooms, home offices, small living areas and other medium-sized rooms. Its wall-mounted format allows the unit to deliver conditioned air from an elevated position without occupying valuable floor space.

The correct capacity cannot be determined using room area alone. Ceiling height, insulation levels, window size, glass orientation, afternoon sun, occupancy and heat-generating appliances can significantly change the heating and cooling requirements of a space.

An appropriately qualified air-conditioning professional should assess the intended room before the capacity is confirmed. Correct sizing supports comfortable operation and helps avoid choosing a unit that is either too small or unnecessarily large for the area.

Flexible multi-room air conditioning

A multi-split system allows several compatible indoor units to connect to one outdoor condenser. Separate indoor units can be positioned in different rooms, with each head providing air conditioning for its assigned zone.

For example, the MSS035S2AI may be selected for a medium-sized room while smaller or larger compatible indoor units are used in other areas of the property. This allows the system to be configured according to the individual requirements of each space rather than using identical indoor capacities everywhere.

Although the connected indoor units can provide separate room control, they remain part of one shared multi-split system. Their available output and operation can be influenced by the outdoor unit, the selected operating mode and the number of indoor units running simultaneously.

Benefits of the MSS035S2AI indoor unit

• Practical 3.5kW capacity class
• Suitable for selected bedrooms, offices and medium-sized rooms
• Wall-mounted design helps preserve usable floor space
• Creates an individual indoor zone within a multi-split system
• Connects to an approved Bonaire multi-split outdoor unit
• Supports flexible combinations of compatible indoor capacities
• Helps reduce the number of outdoor condensers around a property
• Designed for use within a compatible R32 system

Outdoor-unit and system compatibility

The Bonaire MSS035S2AI must be connected to a compatible Bonaire Optima S2 multi-split outdoor condenser. The correct outdoor unit depends on the number, capacity and combination of all indoor units included in the system.

The number of connection ports available on an outdoor unit does not mean that every possible indoor-unit combination is permitted. The combined connected capacity must remain within the manufacturer’s approved range. Individual indoor-unit models must also be supported by the selected outdoor condenser.

The system designer must consider refrigeration pipe lengths, vertical separation, branch locations, drainage requirements, electrical supply and installation clearances. Contact Air Conditioning Trade if you need assistance checking the proposed indoor and outdoor unit combination.

Suitable applications

The MSS035S2AI may be considered for areas such as:

• Selected main bedrooms
• Larger guest bedrooms
• Home offices and studies
• Small or medium-sized sitting rooms
• Consulting and professional rooms
• Townhouse and apartment rooms
• Multi-room renovation projects

These applications are general examples and do not guarantee suitability. A proper heat-load assessment is required before confirming the product for a particular room. Apartment, strata and rental-property installations may also require approval.

Professional installation required

The Bonaire MSS035S2AI must be installed and commissioned by appropriately qualified and licensed air-conditioning professionals. The work may include wall mounting, refrigeration pipe installation, condensate drainage, electrical connections, pressure testing, evacuation and complete system commissioning.

The indoor unit should be positioned where conditioned air can circulate effectively throughout the room. Tall furniture, curtains, shelving and structural features should not block the supply or return airflow. Suitable clearance must also be retained for filter cleaning and future servicing.

Correct condensate drainage is essential. An incorrectly installed drain may result in water leakage and property damage. The refrigeration pipes must also be appropriately sized, insulated and installed in accordance with the manufacturer’s requirements.

What is included?

This listing includes one Bonaire Optima S2 MSS035S2AI 3.5kW multi-split indoor unit. Any standard accessories included in the manufacturer’s packaging should be confirmed before ordering.

Unless specifically listed in your quotation, the following items are not included:

• Multi-split outdoor condenser
• Additional indoor units
• Refrigeration pipework and insulation
• Electrical cabling or circuit protection
• Condensate drainage materials
• Outdoor mounting equipment
• Installation labour and commissioning

Warranty information

The unit may qualify for Bonaire’s applicable manufacturer warranty when purchased through an authorised supply channel and installed, commissioned, operated and maintained according to the manufacturer’s requirements.

Warranty duration, eligibility, registration requirements and exclusions can change. Customers should review Bonaire’s current warranty documentation before purchasing. Keep the invoice, model and serial information, installer’s details and commissioning records for any future warranty claim.

Official Bonaire multi-split information

For general manufacturer information and available product documents, visit the official Bonaire multi-split systems page.

Bonaire states that its R32 multi-split system can operate with multiple indoor heads connected to one outdoor unit and provide individual room temperature control. :chatgpt-content-reference{index=”0″}

Frequently asked questions

Is the MSS035S2AI a complete air-conditioning system?

No. It is an indoor unit only. A compatible Bonaire multi-split outdoor condenser and professional installation are required separately.

Can it connect to any outdoor condenser?

No. It must be matched with a compatible Bonaire multi-split outdoor unit using an approved system combination.

Is 3.5kW suitable for a bedroom?

A 3.5kW capacity may suit certain bedrooms or medium-sized rooms. However, the area must be assessed because insulation, windows, orientation and room dimensions affect the required capacity.

Can the room be controlled independently?

The indoor head is designed to function as an individual zone. Overall operation remains subject to the capabilities and operating mode of the shared multi-split system.

Does the product require licensed installation?

Yes. Refrigeration and electrical work must be performed by appropriately qualified and licensed professionals.

Request a compatible multi-split package

Browse our complete range of air-conditioning systems, or contact Air Conditioning Trade for assistance selecting a compatible outdoor condenser and additional indoor heads for the Bonaire MSS035S2AI.

Specifications, appearance, compatible combinations, included accessories and warranty conditions may change. Product images may be representative. Always confirm current manufacturer information and complete system compatibility before ordering.
