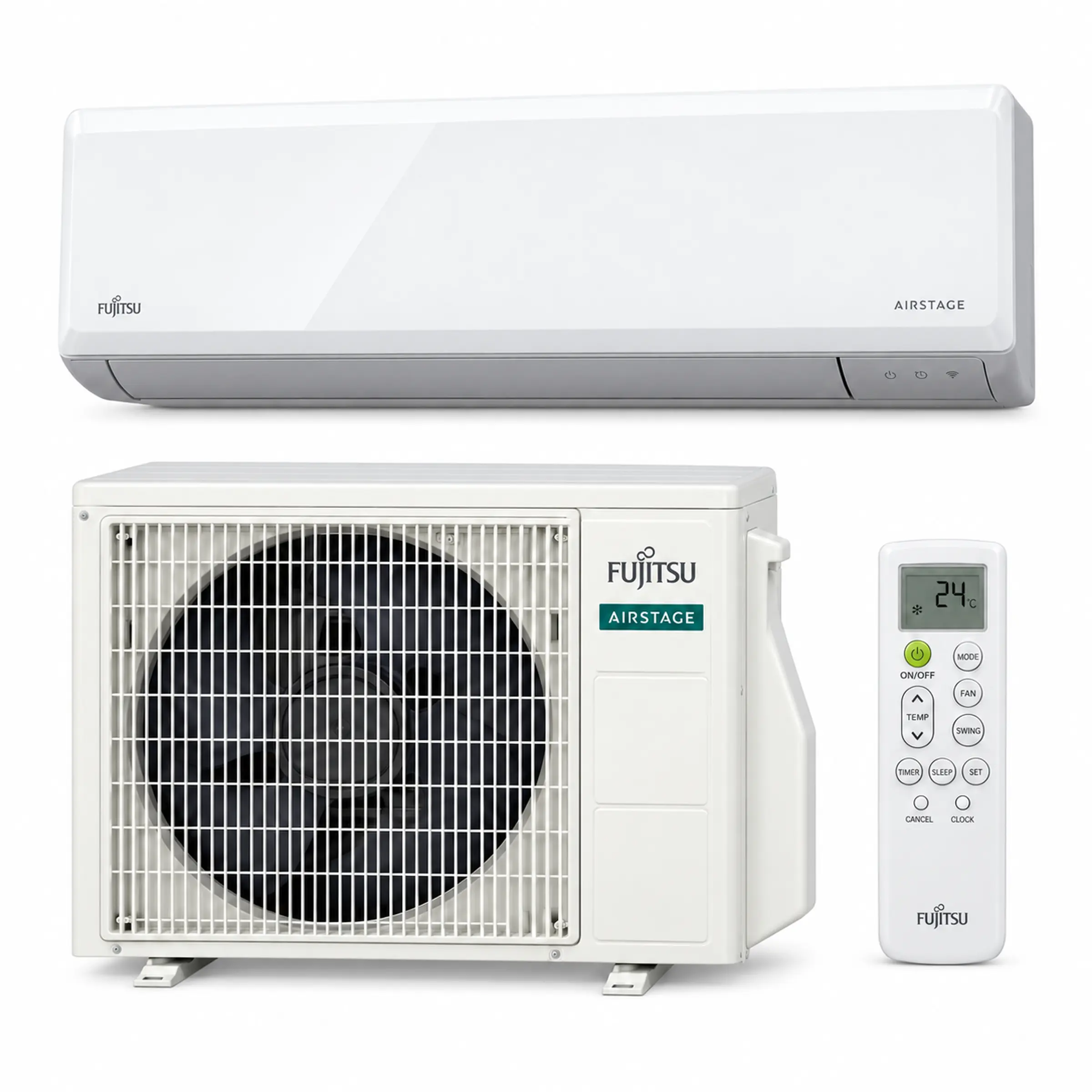

Fujitsu KM Series 2.5kW Reverse Cycle Split System Air Conditioner (Fujitsu SET-ASTG09KMTC 2.5kW Split System)
System Kit Code: SET-ASTG09KMTC | Indoor: ASTG09KMTC | Outdoor: AOTG09KMTC
Product Overview
Designed to blend seamlessly into contemporary home interiors, the Fujitsu SET-ASTG09KMTC 2.5kW Split System represents Fujitsu General’s popular KM Series. Delivering a rated cooling capacity of 2.5 kW and heating capacity of 3.2 kW, it utilizes All-DC Inverter control and R32 refrigerant to provide fast, reliable thermal comfort with outstanding seasonal energy efficiency.
Equipped with an intelligent Human Sensor, the system automatically detects movement in the room and switches to energy-saving operation when the area is vacant. With advanced Apple-Catechin air filtration approved by Sensitive Choice®, Up/Down auto louver control, and low-noise sleep performance, it is the ideal heating and cooling solution for modern bedrooms.
Quick Highlights
- Rated Output: 2.5 kW cooling and 3.2 kW heating capacity.
- Human Sensor Control: Automatically reduces power intake when room movement is not detected.
- Apple-Catechin Filter: Uses static electricity to absorb fine dust, mold spores, and micro-particles.
- Sensitive Choice Approved: Certified by the National Asthma Council Australia for allergy-sensitive homes.
- Whisper Quiet Mode: Low indoor sound pressure profile ideal for nighttime sleep.
- Sleek Modern Profile: Ultra-compact matte white chassis measuring just 270 mm high and 834 mm wide.
- Eco-Friendly R32: Lower global warming potential refrigerant boosting system thermodynamic efficiency.
- Powerful Mode: Operates at maximum airflow and compressor speed for rapid temperature pulldown.
- Weekly Timer Function: Programmable scheduling via the wireless remote control.
- 5-Year Warranty: Full Fujitsu General Australia parts and labour warranty backing.
Why Choose This Model (Fujitsu SET-ASTG09KMTC 2.5kW Split System)?
Selecting the Fujitsu SET-ASTG09KMTC 2.5kW Split System guarantees high-efficiency climate comfort with intelligent energy management. Its Human Sensor technology prevents wasted electricity when rooms are left unoccupied, while Sensitive Choice® approved filtration actively improves indoor air quality. Compact, quiet, and reliable, it is a trusted choice for Australian homes.
Key Features
Intelligent Human Sensor Technology
Monitors human activity in the room using an infrared motion sensor. If no movement is detected for 20 minutes, the unit automatically switches to an energy-saving thermal offset, restoring full cooling or heating capacity immediately when occupants return.
Apple-Catechin Air Filtration
Fine dust, invisible mold spores, and harmful microorganisms are trapped onto the filter by static electricity. The natural polyphenolic apple extract coating inhibits spore growth, maintaining cleaner supply air.
All-DC Inverter Compressor Performance
Fujitsu’s high-efficiency DC rotary compressor modulates motor speed continuously rather than cycling on and off. This maintains setpoint temperatures with minimal power fluctuations and low mechanical noise.
Powerful Rapid Cooling Mode
Engages maximum fan velocity and compressor frequency for 20 minutes continuously. This feature cools or warms the room rapidly upon returning home before returning to standard automatic operation.
Sensitive Choice® Asthma Approval
Approved by the National Asthma Council Australia’s Sensitive Choice® program, recognizing its effectiveness in reducing airborne allergens and maintaining clean indoor environments for allergy sufferers.
Eco-Friendly R32 Refrigerant
Operates using single-component R32 refrigerant, which conveys thermal energy efficiently while offering a 68% lower Global Warming Potential (GWP) compared to older R410A systems.
Ideal Applications
- Master Bedrooms & Nurseries: Low sound output and Sensitive Choice® air filtering ensure quiet, allergen-free sleep.
- Home Offices & Study Rooms: Maintains steady temperature setpoints during long working hours.
- Urban Apartments: Ultra-compact indoor profile fits easily above doorways or restricted wall heights.
Why Professionals Choose This Model (Fujitsu SET-ASTG09KMTC 2.5kW Split System)?
HVAC installers and builders consistently specify the Fujitsu SET-ASTG09KMTC 2.5kW Split System for its straightforward mounting plate layout, reliable flare fittings, accessible terminal connections, and minimal post-commissioning callbacks. Backed by Fujitsu General’s nationwide service network, it gives trades and end users complete peace of mind.
Technical Specifications
General & Performance
| Specification Parameter | Indoor (ASTG09KMTC) | Outdoor (AOTG09KMTC) |
|---|---|---|
| Rated Capacity (Cool / Heat) | 2.5 kW / 3.2 kW | |
| Capacity Range (Cooling) | Min – Max: Not specified by manufacturer | |
| Capacity Range (Heating) | Min – Max: Not specified by manufacturer | |
| System Type | Reverse Cycle Inverter Split System | |
Electrical Data
| Power Supply | 1 Phase, 240 V, 50 Hz |
| Power Input (Cool / Heat) | Not specified by manufacturer |
Dimensions & Weights
| Unit | Dimensions (H × W × D) | Net Weight |
|---|---|---|
| Indoor Unit (ASTG09KMTC) | 270 mm × 834 mm × 222 mm | Not specified by manufacturer |
| Outdoor Unit (AOTG09KMTC) | Not specified by manufacturer | Not specified by manufacturer |
Noise Levels & Airflow
| Indoor Sound Pressure Level | Not specified by manufacturer |
| Outdoor Sound Pressure Level | Not specified by manufacturer |
Refrigerant & Compressor Specs
| Compressor Type | All-DC Inverter Rotary Compressor |
| Refrigerant Type | R32 |
Piping & Installation Requirements
| Liquid Pipe Size | Not specified by manufacturer |
| Gas Pipe Size | Not specified by manufacturer |
| Max Piping Length / Elevation | Not specified by manufacturer |
Installation Information of the Fujitsu SET-ASTG09KMTC 2.5kW Split System
Installation of the Fujitsu SET-ASTG09KMTC 2.5kW Split System must be carried out by an ARC-licensed refrigeration technician in accordance with Australian standards to preserve warranty validity. The indoor head unit attaches to wall studs using the supplied backplate, while the outdoor compressor should sit level on a solid pad or wall brackets with adequate air clearance.
Compatible Accessories
- Fujitsu Wireless LAN Interface: Optional Wi-Fi module for myAnywAIR / Fujitsu mobile app control.
- Galvanised Outdoor Wall Brackets: Powder-coated steel brackets for elevated condenser placement.
- Polymer Mounting Footings: Heavy-duty UV-stabilised equipment pads for ground-level outdoor units.
What’s Included in Fujitsu SET-ASTG09KMTC 2.5kW Split System
- 1 x Fujitsu KM Series Indoor Wall Unit (ASTG09KMTC)

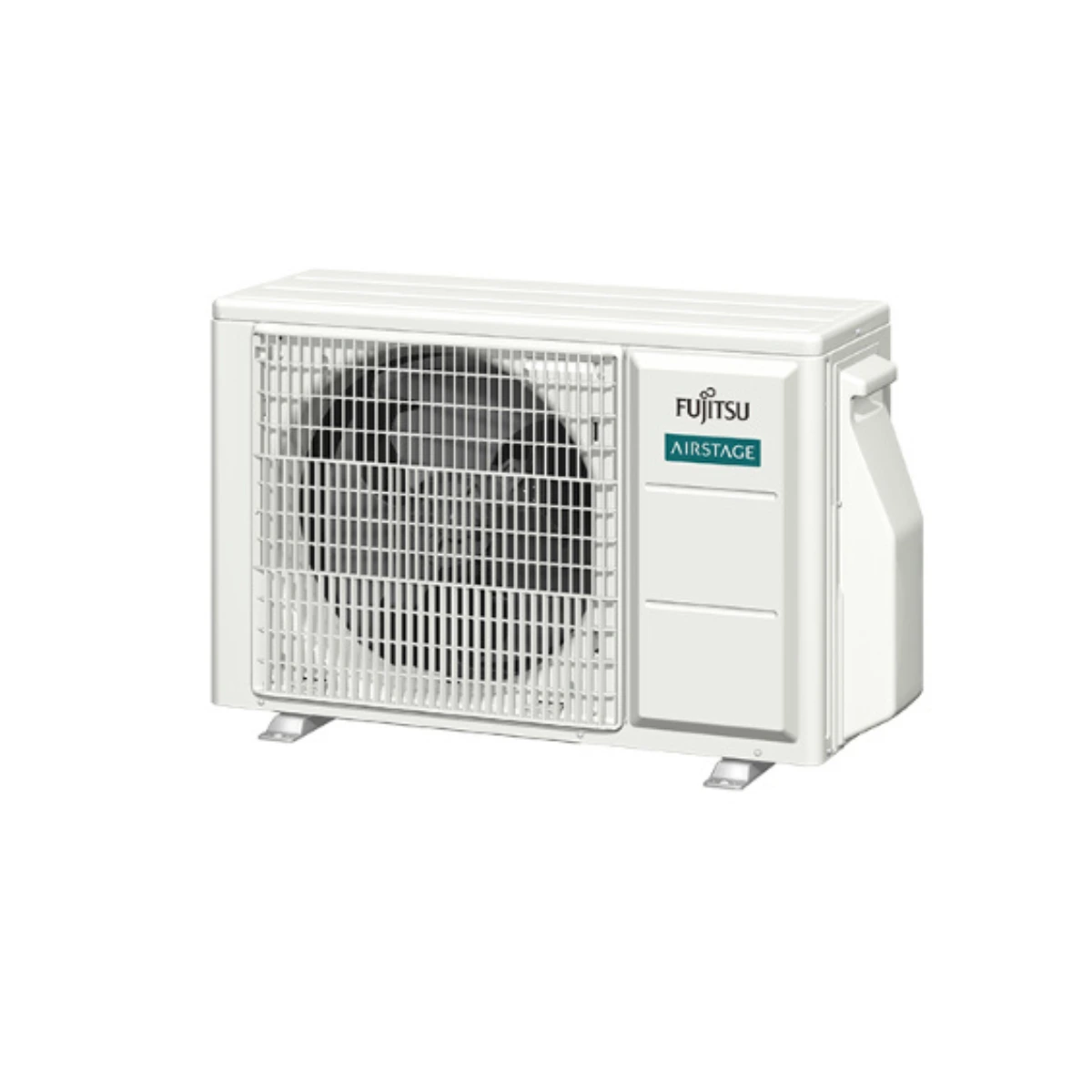

- 1 x Fujitsu Outdoor Compressor Unit (AOTG09KMTC)

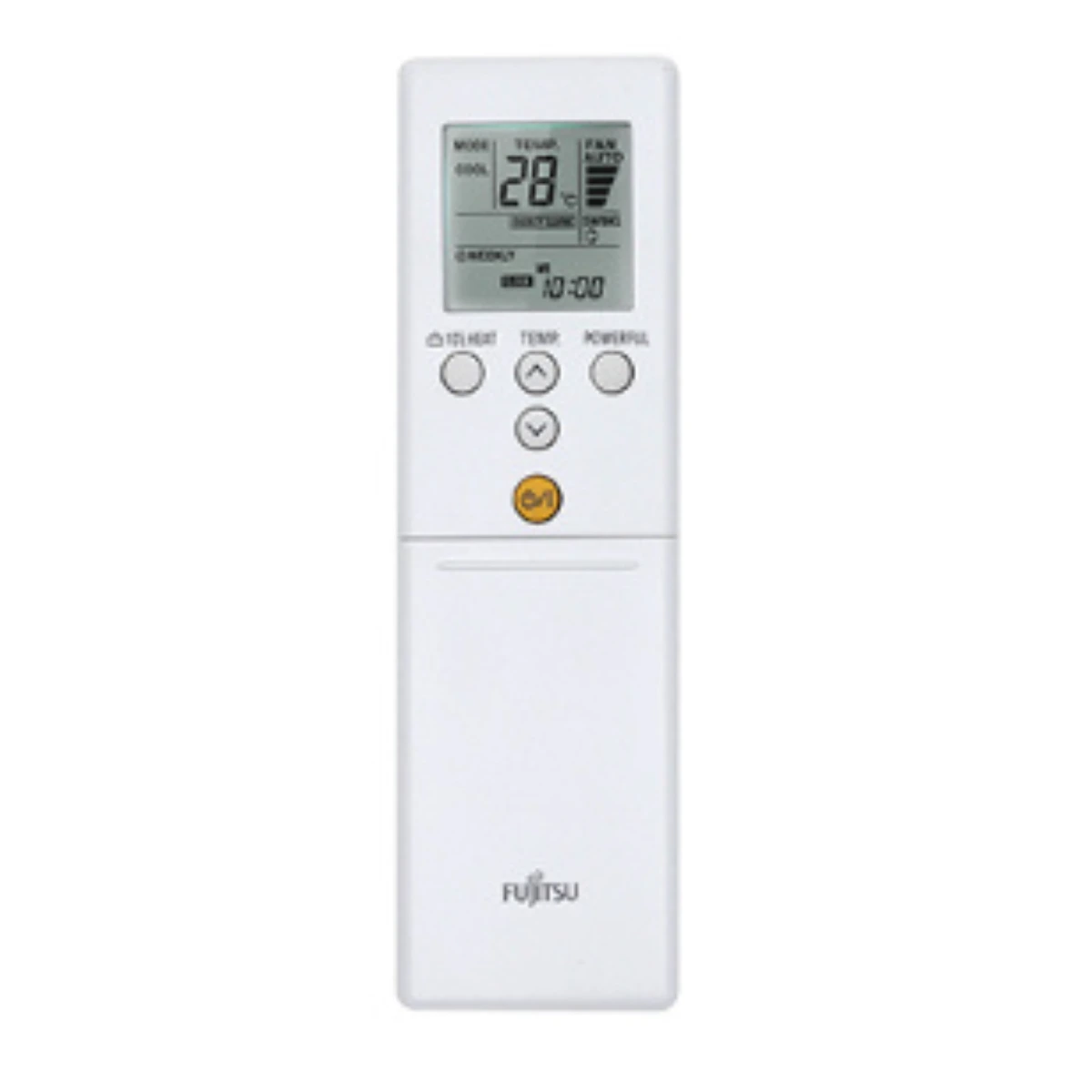

- 1 x Wireless Remote Controller (Batteries Included)
- 1 x Apple-Catechin Filter Set & Mounting Hardware
- 1 x User Operating Manual & Warranty Documentation
Warranty
The Fujitsu SET-ASTG09KMTC 2.5kW Split System comes with a 5-Year Full Parts and Labour Warranty provided by Fujitsu General Australia for domestic installations installed by an accredited ARC professional.
Frequently Asked Questions
Q1: What room size is suitable for the Fujitsu SET-ASTG09KMTC 2.5kW Split System?
A: A 2.5 kW cooling capacity is ideal for small areas, such as bedrooms, study rooms, or home offices up to 20 square metres.
Q2: How does the Human Sensor energy-saving feature work?
A: The infrared Human Sensor detects room movement. If the room is vacant for 20 minutes, it automatically reduces power intake to save electricity.
Q3: Is this system Sensitive Choice® approved?
A: Yes. It is approved by the National Asthma Council Australia’s Sensitive Choice® program for asthma and allergy sufferers.
Q4: Does this unit come standard with Wi-Fi control?
A: Wi-Fi control is available as an optional add-on via Fujitsu’s Wireless LAN Interface module (sold separately).
Q5: Is professional ARC installation required?
A: Yes. Australian law requires all fluorinated gas split systems to be installed by a licensed ARC air conditioning technician.
