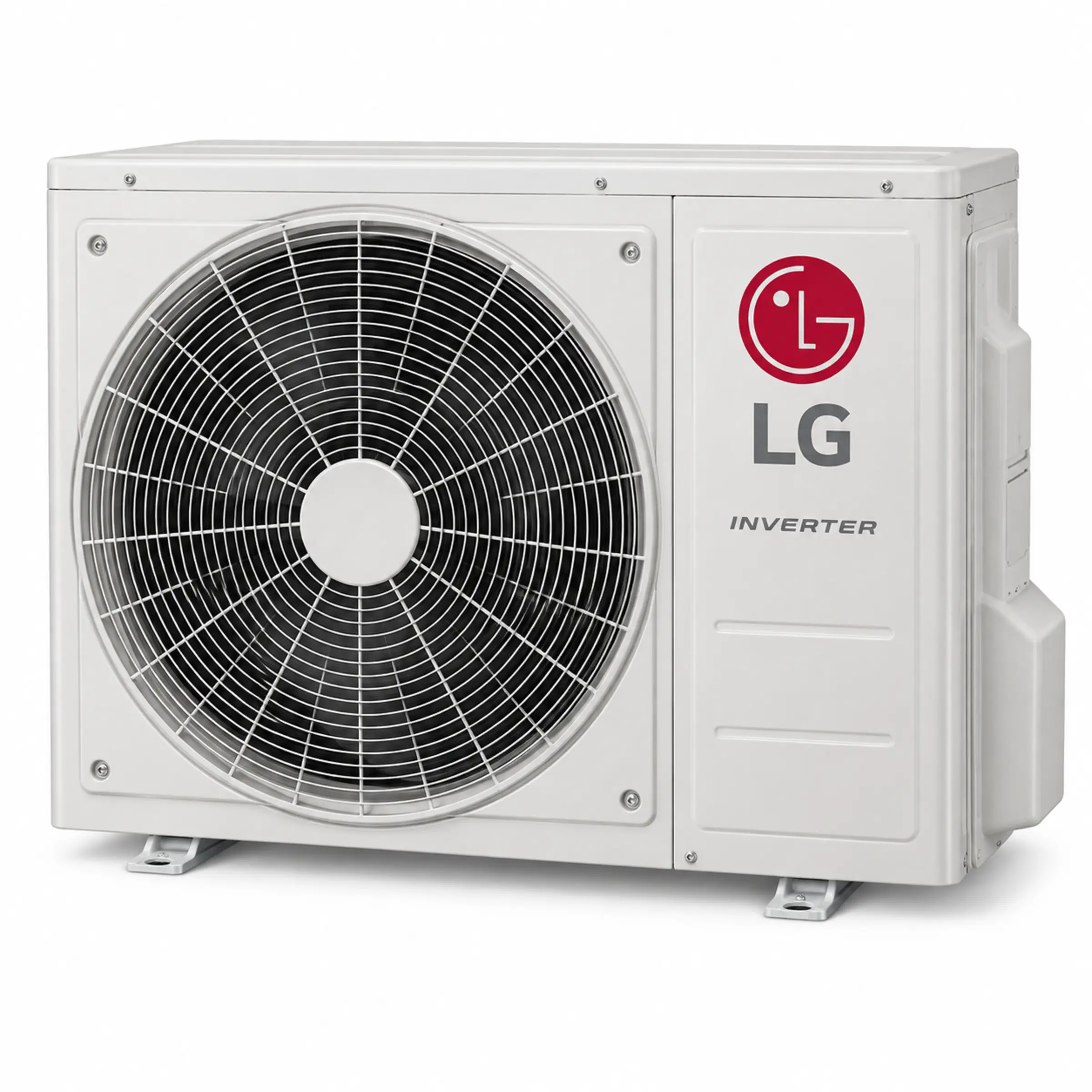

LG 5MXM100MA0 10.0kW 5-Port Multi Split Outdoor Unit
Outdoor Model: 5MXM100MA0 | Type: Reverse-Cycle Multi Split | Indoor Connections: Up to 5
Product Overview
The LG 5MXM100MA0 10.0kW Multi Split Outdoor Unit is a five-port outdoor-only inverter condenser designed for larger multi-room applications. It can connect up to five compatible LG multi-split indoor units, enabling separately controlled comfort zones while using one outdoor cabinet instead of several individual condensers.
With 10.0kW rated cooling and reverse-cycle heating capability, the 5MXM100MA0 is suited to professionally engineered combinations serving bedrooms, studies and living areas. Actual output available to each room depends on the selected combination and simultaneous demand. Indoor units, controllers, refrigerant pipework, mounting materials and installation are sold separately unless specifically included in a quotation.
Quick Highlights
- Rated cooling: 10.0kW
- Multi-room capacity: connects up to 5 compatible indoor units
- System type: inverter reverse cycle
- Refrigerant: R32
- Independent zones: separate control through connected indoor units
- Outdoor-only listing: indoor units selected separately
- Consolidated installation: one condenser for multiple rooms
Why Choose the LG 5MXM100MA0 10.0kW Multi Split Outdoor Unit?
Choose the LG 5MXM100MA0 10.0kW Multi Split Outdoor Unit for a larger home or multi-zone project requiring up to five indoor units without crowding the property with separate condensers. Compatible indoor units allow individual room control, while inverter operation responds to the combined active load. Correct design requires approved combination tables and a qualified heat-load calculation.
The LG 5MXM100MA0 10.0kW Multi Split Outdoor Unit provides a flexible solution for larger homes requiring individual temperature control across multiple rooms. Connecting compatible LG indoor units to one outdoor condenser reduces the number of outdoor units required and creates a cleaner exterior installation. LG inverter technology adjusts operating output according to demand, supporting efficient, dependable reverse-cycle heating and cooling throughout the year.
Key Features
Five-zone capability
Connect as many as five approved LG indoor units and size each indoor head for its assigned room.
Individual room settings
Compatible indoor units provide separate zone control, so occupants can operate selected rooms according to need.
Responsive inverter operation
The inverter system varies output as active zones and indoor demand change, supporting stable reverse-cycle comfort.
One outdoor footprint
A consolidated outdoor unit helps preserve pathways, balconies and exterior presentation on multi-room projects.
Ideal Applications
- Four- or five-room residential installations
- Larger homes with several bedrooms and living zones
- Townhouses and properties with restricted condenser space
- Projects combining compatible indoor-unit styles
- Multi-room comfort with individual zone control
Technical Specifications
| Specification | Value |
|---|---|
| Brand / model | LG / 5MXM100MA0 |
| Product type | Multi-split inverter outdoor unit only |
| Rated cooling capacity | 10.0kW |
| Connectable indoor units | Up to 5 compatible units |
| Operation | Reverse-cycle heating and cooling |
| Refrigerant | R32 |
| Power supply | Single phase; confirm electrical requirements before installation |
| Included | Outdoor unit only |
Installation and Compatibility
The LG 5MXM100MA0 10.0kW Multi Split Outdoor Unit must be paired with an LG-approved indoor-unit combination. A licensed installer must check the total connected capacity, simultaneous load, refrigerant pipe sizes and limits, electrical requirements, mounting position, drainage and charge adjustment using current LG engineering information. Room size alone is insufficient for system selection.
Frequently Asked Questions
How many indoor units can connect?
Up to five compatible LG multi-split indoor units can be connected, subject to LG combination requirements.
Are indoor heads supplied with this product?
No. This listing is for the 5MXM100MA0 outdoor unit only.
Can every room be controlled separately?
Yes, compatible indoor units offer individual zone control. The available outdoor capacity is shared across simultaneously operating zones.
Does it require licensed installation?
Yes. Refrigerant and electrical work must be performed by appropriately licensed professionals.
