Fujitsu KM Series 8.5kW Reverse Cycle Split System Air Conditioner (Fujitsu SET-ASTH30KMTD 8.5kW Split System)
System Kit Code: SET-ASTH30KMTD | Indoor: ASTH30KMTD | Outdoor: AOTH30KMTD
Product Overview
Engineered to handle substantial heat loads across wide architectural layouts, the Fujitsu SET-ASTH30KMTD 8.5kW Split System delivers robust climate control for large open-plan living zones. Rated at 8.5 kW cooling capacity and 9.0 kW heating output, it uses All-DC Inverter modulation and eco-friendly R32 refrigerant to maintain precise indoor setpoints efficiently.
Equipped with Fujitsu’s intelligent Human Sensor, the system monitors room occupancy and automatically throttles down output when the area is left vacant to save electricity. Featuring Sensitive Choice® approved Apple-Catechin filtration, high air-volume velocity, and Powerful mode, it is an ideal choice for spacious homes and commercial spaces requiring reliable wall-mounted performance.
Quick Highlights
- High Output Capacity: Rated 8.5 kW cooling and 9.0 kW heating performance.
- Human Sensor Control: Automatically reduces power consumption when room motion is not detected.
- Apple-Catechin Filter: Uses static electricity to trap fine dust particles, mold spores, and pollutants.
- Sensitive Choice Approved: Certified by the National Asthma Council Australia for allergy-sensitive spaces.
- High Airflow Throw: Designed to push conditioned air deep into expansive living and dining areas.
- Modern Matte Design: Contemporary wall-mounted indoor chassis fitting effortlessly into modern decor.
- Eco-Friendly R32: Lower global warming potential refrigerant boosting system efficiency.
- Powerful Mode: Runs at maximum fan speed and compressor output for rapid temperature pulldown.
- Weekly Program Timer: Flexible scheduling control via the supplied wireless remote.
- 5-Year Warranty: Full Fujitsu General Australia parts and labour warranty backing.
Why Choose This Model (Fujitsu SET-ASTH30KMTD 8.5kW Split System)?
The Fujitsu SET-ASTH30KMTD 8.5kW Split System provides an ideal high-capacity solution for large open-plan living rooms, commercial reception halls, and rumpus zones where single small-to-medium split systems fall short. It delivers high-volume air distribution while maintaining smart energy management via Human Sensor technology, ensuring both maximum comfort and controlled power bills.
Key Features
Intelligent Human Sensor Technology
Detects movement in the room using an infrared motion sensor. If no activity is detected for 20 minutes, the unit automatically switches to energy-saving operation, immediately returning to full capacity when occupants re-enter.
Apple-Catechin Air Filtration
Fine dust, invisible mold spores, and harmful microorganisms are captured onto the filter via static electricity. The natural polyphenolic apple extract coating inhibits spore growth for cleaner, healthier supply air.
All-DC Inverter Performance
Fujitsu’s high-efficiency DC rotary compressor modulates motor speed continuously rather than cycling on and off. This delivers steady room temperatures across large floor plans with reduced energy demand.
Powerful Pulldown Mode
Engages maximum fan velocity and compressor output for 20 minutes continuously. This allows rapid cooling or heating of hot or cold rooms upon returning home before returning to automatic operation.
Sensitive Choice® Asthma Approval
Certified by the National Asthma Council Australia’s Sensitive Choice® program, recognizing its effectiveness in reducing airborne allergens and maintaining healthier indoor air quality.
Eco-Friendly R32 Refrigerant
Operates using single-component R32 refrigerant, offering higher thermodynamic heat transfer efficiency and a 68% lower Global Warming Potential (GWP) compared to older R410A systems.
Ideal Applications
- Expansive Open-Plan Living Areas: 8.5 kW cooling output conditions large residential spaces (55–70 m²) with ease.
- Commercial Offices & Showrooms: Provides steady temperature maintenance across open commercial floor plans.
- Large Family Rumpus Rooms: High airflow velocity keeps active multi-occupant spaces comfortably cooled or heated.
Why Professionals Choose This Model (Fujitsu SET-ASTH30KMTD 8.5kW Split System)?
HVAC installers, builders, and commercial contractors specify the Fujitsu SET-ASTH30KMTD 8.5kW Split System for its robust high-capacity output, reliable flare fitting connections, accessible terminal blocks, and minimal post-commissioning callbacks. Backed by Fujitsu General’s nationwide service network, it offers long-term reliability for demanding projects.
Technical Specifications
General & Performance
| Specification Parameter | Indoor (ASTH30KMTD) | Outdoor (AOTH30KMTD) |
|---|---|---|
| Rated Capacity (Cool / Heat) | 8.5 kW / 9.0 kW | |
| Capacity Range (Cooling) | Min – Max: Not specified by manufacturer | |
| Capacity Range (Heating) | Min – Max: Not specified by manufacturer | |
| System Type | Reverse Cycle Inverter Split System | |
Electrical Data
| Power Supply | 1 Phase, 240 V, 50 Hz |
| Power Input (Cool / Heat) | Not specified by manufacturer |
Dimensions & Weights
| Unit | Dimensions (H × W × D) | Net Weight |
|---|---|---|
| Indoor Unit (ASTH30KMTD) | Not specified by manufacturer | Not specified by manufacturer |
| Outdoor Unit (AOTH30KMTD) | Not specified by manufacturer | Not specified by manufacturer |
Noise Levels & Airflow
| Indoor Sound Pressure Level | Not specified by manufacturer |
| Outdoor Sound Pressure Level | Not specified by manufacturer |
Refrigerant & Compressor Specs
| Compressor Type | All-DC Inverter Rotary Compressor |
| Refrigerant Type | R32 |
Piping & Installation Requirements
| Liquid Pipe Size | Not specified by manufacturer |
| Gas Pipe Size | Not specified by manufacturer |
| Max Piping Length / Elevation | Not specified by manufacturer |
Installation Information of the Fujitsu SET-ASTH30KMTD 8.5kW Split System
Installation of the Fujitsu SET-ASTH30KMTD 8.5kW Split System must be carried out by an ARC-licensed refrigeration technician in accordance with Australian standards to preserve warranty validity. The indoor head unit attaches securely to wall studs using the provided mounting plate, while the outdoor compressor unit should sit level on a solid concrete pad or structural brackets with adequate air clearance.
Compatible Accessories
- Fujitsu Wireless LAN Interface: Optional Wi-Fi module for myAnywAIR / Fujitsu mobile app control.
- Galvanised Outdoor Wall Brackets: Heavy-duty powder-coated steel brackets for elevated outdoor mounting.
- Polymer Mounting Footings: Heavy-duty UV-stabilised equipment pads for ground-level placement.
What’s Included in Fujitsu SET-ASTH30KMTD 8.5kW Split System

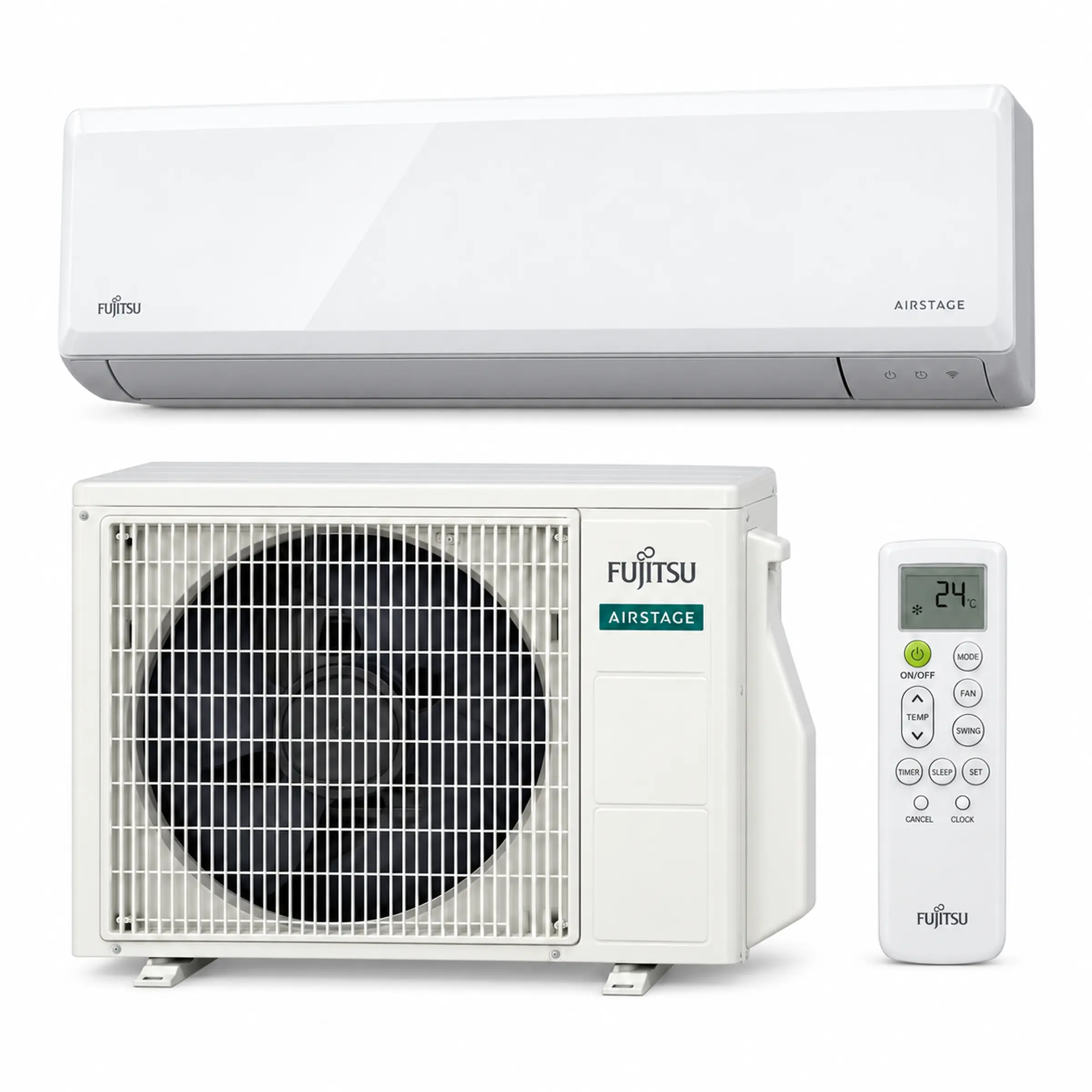

- 1 x Fujitsu KM Series Indoor Wall Unit (ASTH30KMTD)

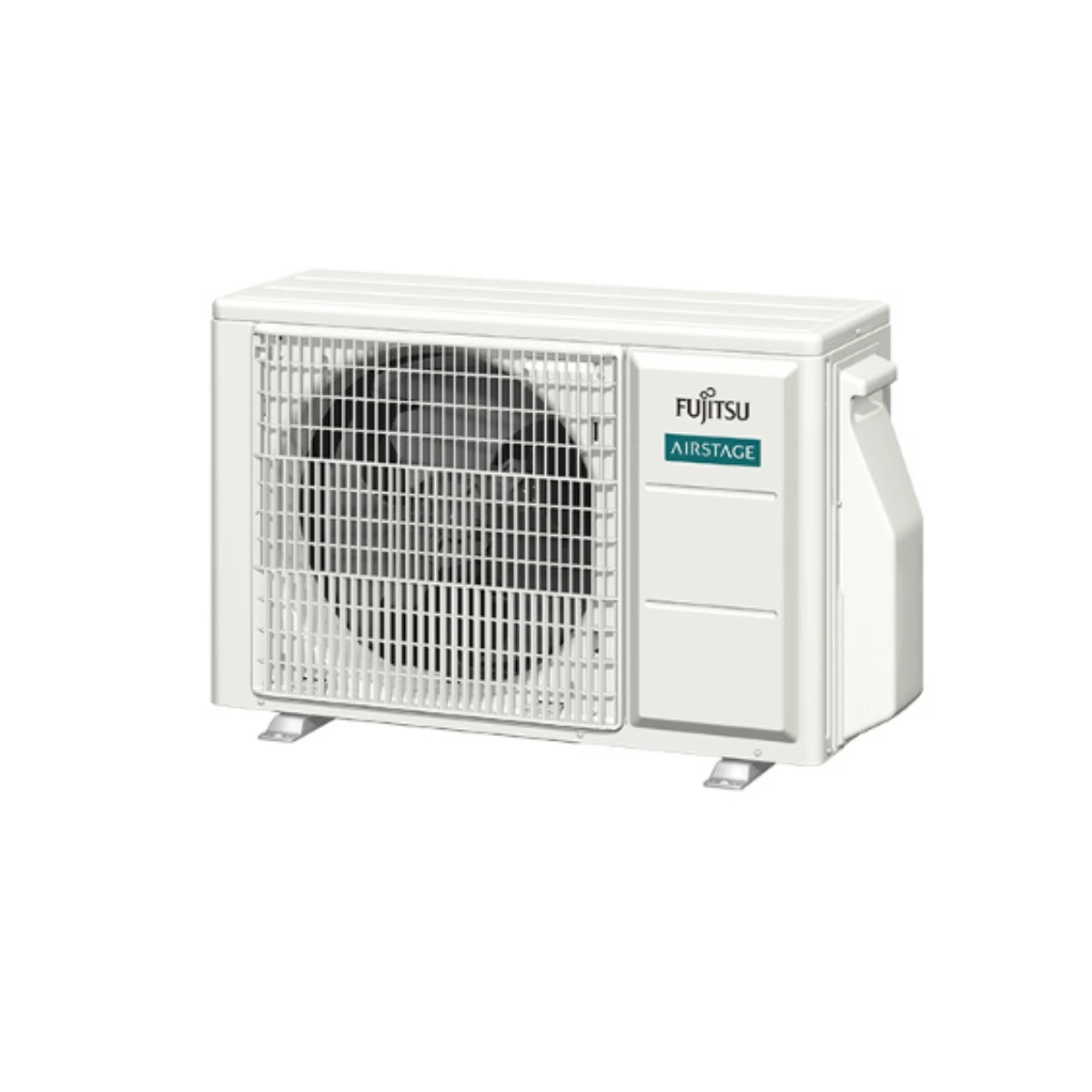

- 1 x Fujitsu Outdoor Compressor Unit (AOTH30KMTD)

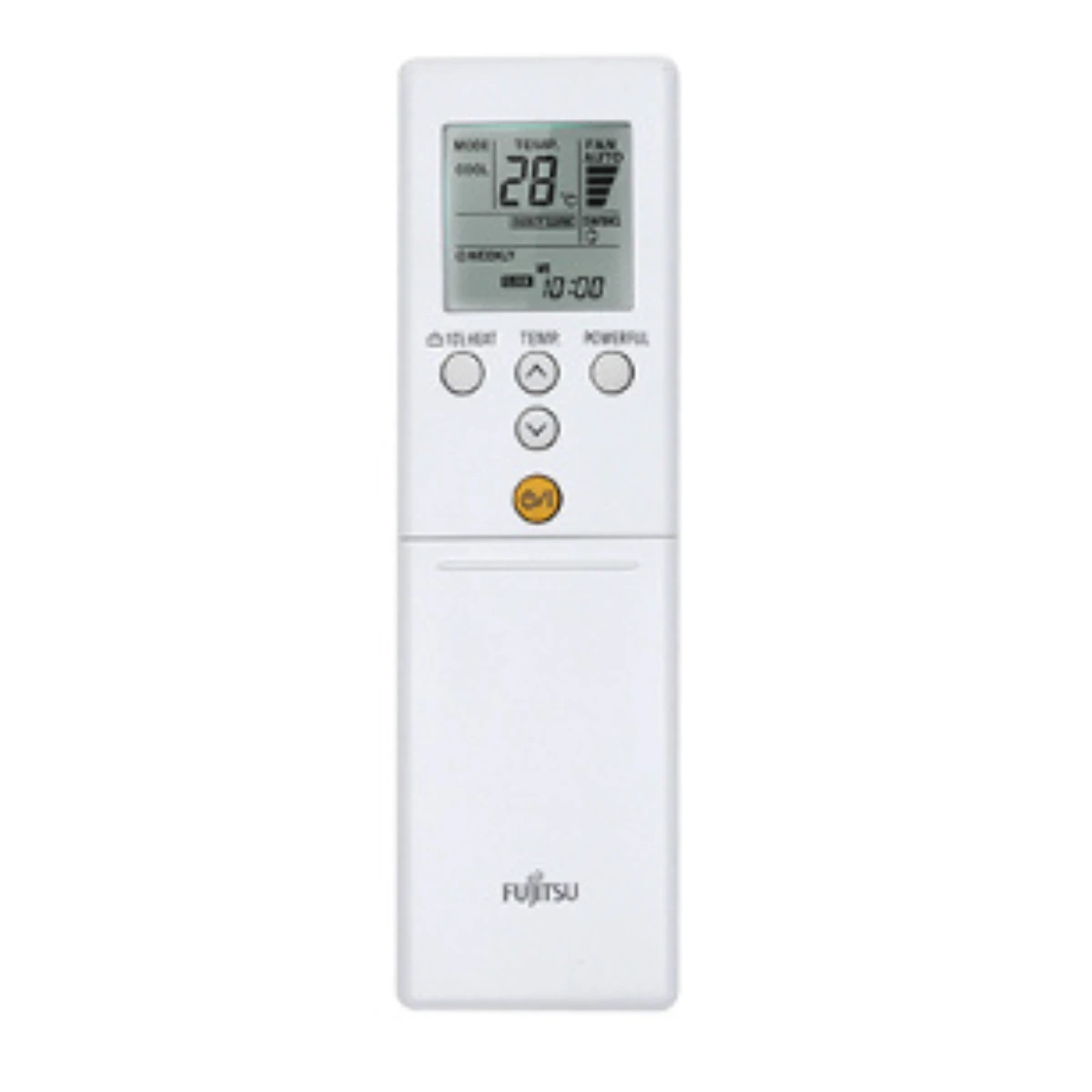

- 1 x Wireless Remote Controller (Batteries Included)
- 1 x Apple-Catechin Filter Set & Installation Hardware
- 1 x User Operating Manual & Warranty Documentation
Warranty
The Fujitsu SET-ASTH30KMTD 8.5kW Split System comes with a 5-Year Full Parts and Labour Warranty provided by Fujitsu General Australia for domestic installations installed by an accredited ARC professional.
Frequently Asked Questions
Q1: What room size is suitable for the Fujitsu SET-ASTH30KMTD 8.5kW Split System?
A: An 8.5 kW cooling capacity is ideal for large open spaces, such as open-plan living rooms or commercial environments between 55 and 70 square metres.
Q2: How does the Human Sensor feature save power?
A: The infrared Human Sensor detects room motion. If no movement is detected for 20 minutes, it automatically reduces power intake to save electricity.
Q3: Is this system Sensitive Choice® approved?
A: Yes, it is certified by the National Asthma Council Australia’s Sensitive Choice® program for allergy and asthma sufferers.
Q4: Does this unit come standard with Wi-Fi control?
A: Wi-Fi control is available as an optional add-on via Fujitsu’s Wireless LAN Interface module (sold separately).
Q5: Is professional ARC installation required?
A: Yes. Australian law requires all split systems to be installed by a licensed ARC air conditioning technician.
