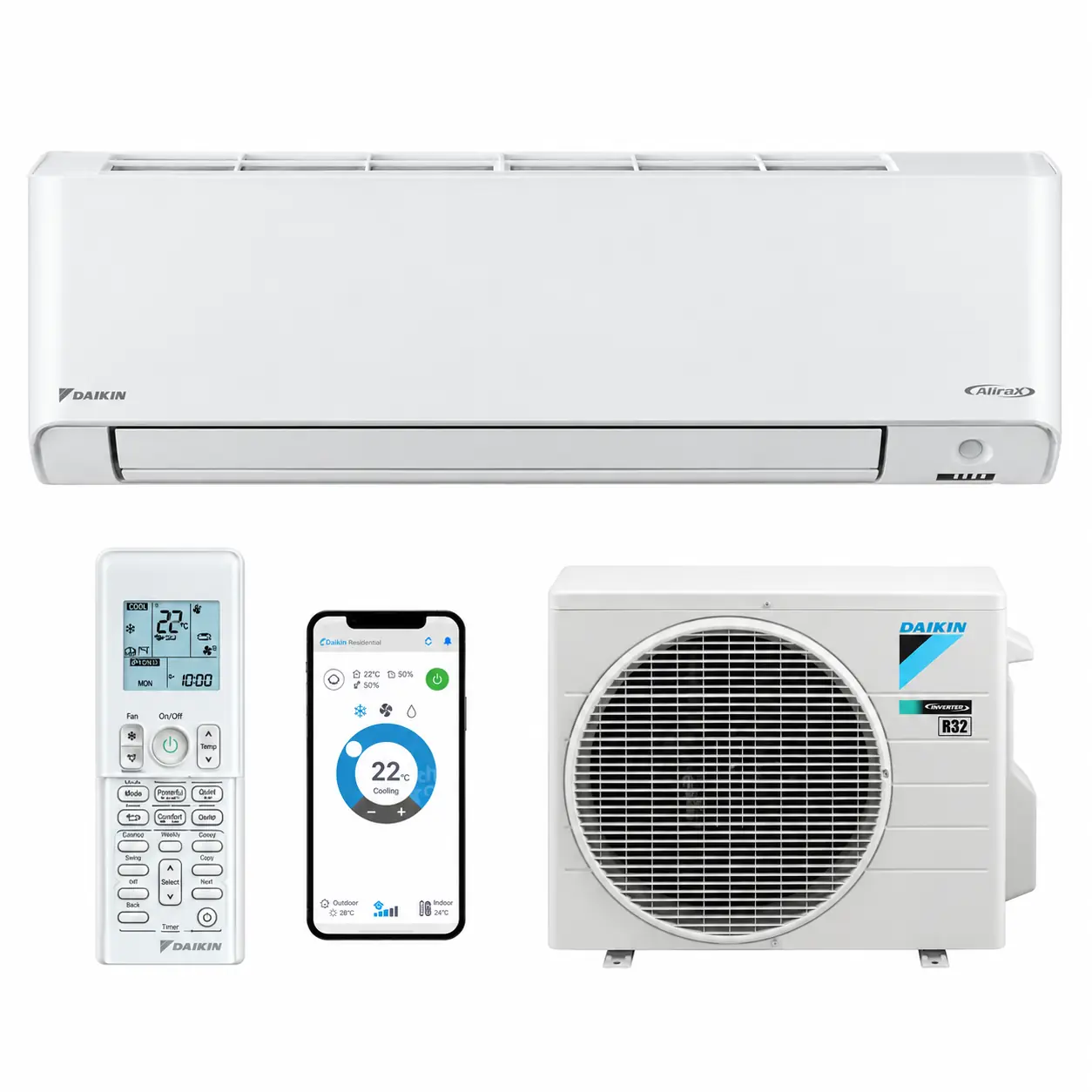

Daikin XL Premium FTXM85W 8.5kW Reverse Cycle Split System
Indoor Unit Model: FTXM85WVMA | Outdoor Unit Model: RXM85WVMA | Kit Code: FTXM85W
Short Description
The Daikin FTXM85W 8.5kW Split System pairs 8.5kW rated cooling with 9.0kW rated heating. This reverse-cycle R32 inverter system includes built-in Wi-Fi, air-treatment technology and a white indoor unit, providing connected year-round comfort for an appropriately sized Australian room.
Product Overview
The Daikin FTXM85W 8.5kW Split System combines indoor unit FTXM85WVMA with outdoor unit RXM85WVMA. Its inverter system varies output between 2.0–10.5kW in cooling and 1.9–11.6kW in heating to respond to changing room demand.
Homeowners gain smartphone-ready control and comfort-focused airflow, while trade customers receive a verified unit match, R32 refrigerant and clearly documented pipework limits. Final capacity suitability must be established from heat load, insulation, glazing, orientation and climate—not floor area alone.
Quick Highlights
- Rated output: 8.5kW cooling and 8.5kW heating
- Matched system: FTXM85WVMA / RXM85WVMA
- Connectivity: Built-in Wi-Fi
- Refrigerant: R32
- Indoor finish: White
- Indoor dimensions: 329 × 1240 × 278mm
- Pipe sizes: 6.4mm liquid / 15.9mm gas
- Maximum pipe run: 30m
- Fan control: Five steps, quiet and automatic
- Compressor: Hermetically sealed swing type
Why Choose This Model?
Choose the Daikin FTXM85W 8.5kW Split System for a balance of design, connected operation and verified reverse-cycle performance. The indoor unit provides useful comfort and filtration functions without requiring a separate Wi-Fi adaptor. Its rated capacity makes it a candidate for larger living spaces within the installer’s calculated load range, while documented electrical, pipework and operating data support accurate trade planning.
Key Features
Built-in Wi-Fi
Integrated wireless connectivity supports control through Daikin’s compatible mobile interface, subject to network, app and account requirements.
Enzyme-blue air purification
The enzyme-blue deodorising filter is designed to trap microscopic particles, reduce odours and support cleaner recirculated indoor air.
3-D airflow distribution
Vertical and horizontal auto-swing combine to circulate conditioned air more effectively through large rooms. Final performance depends on layout and correct system selection.
Comfort airflow
Airflow control helps distribute conditioned air through the room while five fan steps, quiet and automatic modes provide useful operating flexibility.
Quiet operation
The verified indoor sound range is 49/35 cooling; 49/33 heating dBA at high/super-low settings, supporting use in sound-sensitive spaces when correctly installed.
Efficient inverter system
The inverter compressor varies output with demand to maintain comfort, while R32 refrigerant supports the current system design and performance.
Ideal Applications
- Larger living areas, family rooms or open-plan spaces after professional heat-load assessment
- Homes seeking reverse-cycle heating and cooling from one wall-mounted system
- Projects requiring built-in Wi-Fi and R32 refrigerant
- Replacement or new installations where the documented dimensions and pipe limits suit
Why Professionals Choose This Model
The Daikin FTXM85W 8.5kW Split System offers a confirmed indoor/outdoor match, standardised technical data and a built-in wireless module. Installers can plan around the 30m maximum pipe length, 20m maximum level difference and 6.4/15.9mm connections. The documented inverter swing compressor and operating range provide further information for correct selection and commissioning.
Technical Specifications
| Group | Specification | Verified value |
|---|---|---|
| System | Series / type | Daikin XL Premium / reverse-cycle inverter |
| Models | Indoor / outdoor | FTXM85WVMA / RXM85WVMA |
| Performance | Rated cooling / heating | 8.5 kW / 9.0 kW |
| Performance | Capacity range, cooling / heating | 2.0–10.5 kW / 1.9–11.6 kW |
| Electrical | Supply | 1 phase, 220–240 V, 50 Hz |
| Electrical | Rated input, cooling / heating | 2.35 kW / 2.66 kW |
| Efficiency | EER / COP | 3.62 / 3.38 |
| Efficiency | AEER / ACOP | 3.59 / 3.36 |
| Seasonal | TCSPF, hot / average / cold | 5.28 / 4.91 / 5.15 |
| Seasonal | HSPF, hot / average / cold | 4.47 / 3.93 / 3.50 |
| Airflow | Indoor high, cooling / heating | 380 L/s / 403 L/s |
| Dimensions | Indoor / outdoor H × W × D | 329 × 1240 × 278 mm / 990 × 940 × 320 mm |
| Weight | Indoor / outdoor | 19 kg / 77 kg |
| Noise | Indoor H/SL | 49/35 cooling; 49/33 heating dBA |
| Noise | Outdoor H/SL | 54/51 cooling; 55/51 heating dBA |
| Refrigerant | Type | R32 |
| Compressor | Type | Hermetically sealed swing type |
| Pipework | Liquid / gas | 6.4 mm / 15.9 mm |
| Installation | Maximum pipe length / level difference | 30 m / 20 m |
| Operating range | Outdoor cooling / heating | −10 to 46°CDB / −15 to 18°CWB |
| Connectivity | Wi-Fi | Built in |
Installation Information
Installation must be completed by appropriately licensed tradespeople in accordance with Australian requirements and Daikin instructions. The verified limits are a 30m pipe length and 20m level difference, using 6.4mm liquid and 15.9mm gas pipe. Electrical protection, drainage, mounting and any additional refrigerant requirement must be confirmed from official documentation and site conditions.
Compatible Accessories
Additional compatible accessory part numbers were not specified by the manufacturer in the sources reviewed. Wi-Fi is built in. Site hardware must be selected and verified by the installer.
What’s Included
- FTXM85WVMA indoor unit
- RXM85WVMA outdoor unit
- Wireless remote controller
- Built-in Wi-Fi module
Installation materials and labour are not stated as included.
Warranty
Daikin Australia states that its five-year parts and labour warranty applies to split, multi-split and ducted air conditioners purchased and professionally installed in domestic premises in Australia. Eligibility and exclusions remain subject to Daikin’s current warranty terms.
Frequently Asked Questions
Is it reverse cycle?
Yes. It provides 8.5kW rated cooling and 9.0kW rated heating.
Which units form the kit?
FTXM85WVMA indoors and RXM85WVMA outdoors.
Does it include Wi-Fi?
Yes, the wireless module is built into the indoor unit.
What room size does it suit?
No universal room size is specified. A licensed installer should calculate the heat load.
What refrigerant does it use?
R32.
Can I install it myself?
No. Regulated refrigerant and electrical work requires appropriately licensed tradespeople.
Why Buy From AirContrade?
AirContrade supplies HVAC products to trade professionals, builders and homeowners. Contact the team about the Daikin FTXM85W 8.5kW Split System for current stock, competitive pricing, delivery information and technical product support. Professional system selection and installation remain essential for reliable performance and warranty compliance.
Looking for more options? Browse our Daikin Air Conditioners collection.
