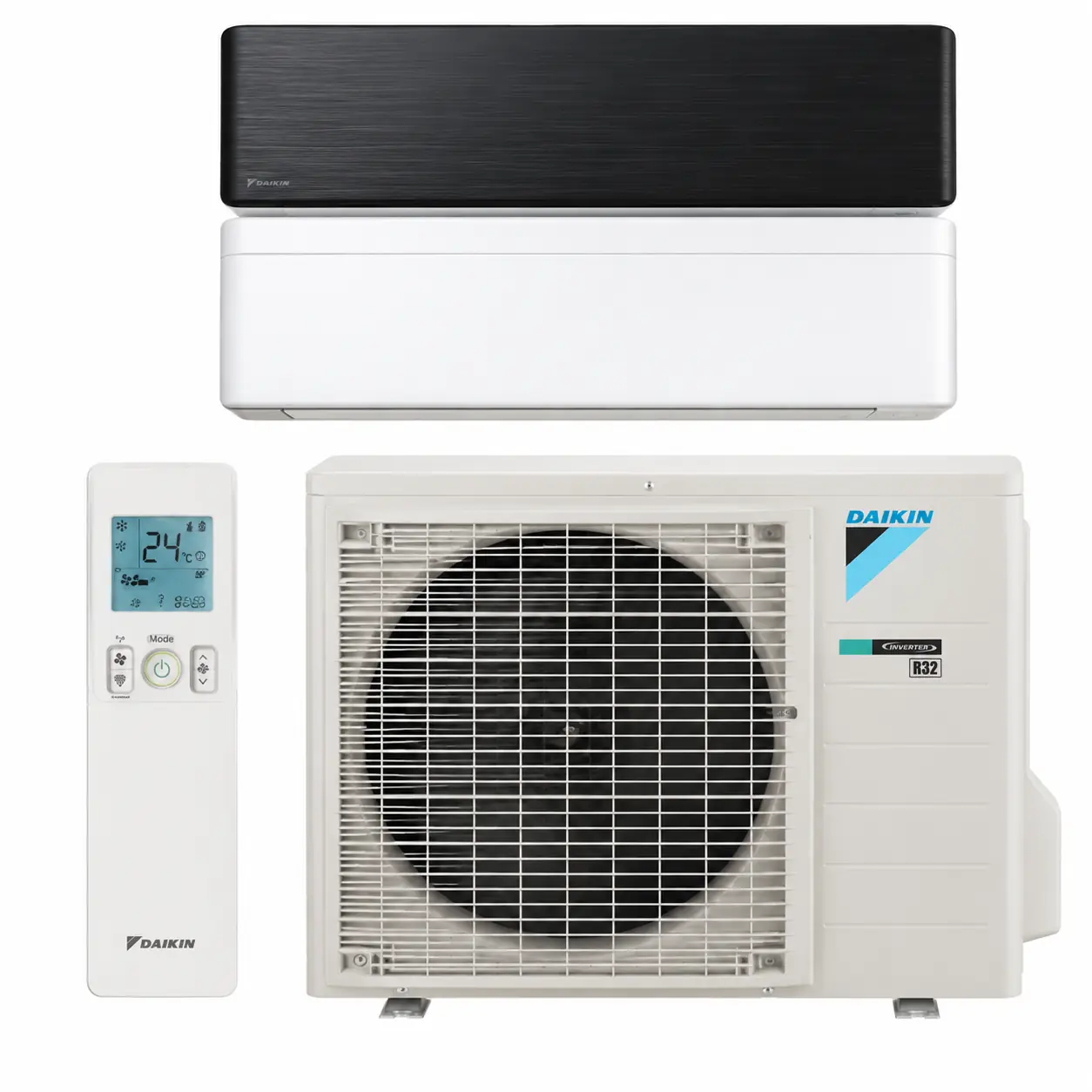

Daikin Zena Series 2.5kW Reverse Cycle Split System (Daikin FTXJ25T-W 2.5kW Split System AC)
Indoor Unit Model: FTXJ25TVMAW | Outdoor Unit Model: RXJ25TVMA | Kit Code: FTXJ25T-W
Product Overview
The Daikin FTXJ25T-W 2.5kW Split System AC is a compact reverse-cycle air conditioner designed for contemporary Australian bedrooms, home offices and smaller living areas where appearance, quiet operation and connected control are important. Its White Hair Line indoor unit measures only 295 mm high, 798 mm wide and 185 mm deep, giving it a discreet wall-mounted profile.
The matched FTXJ25TVMAW indoor unit and RXJ25TVMA outdoor unit deliver 2.5 kW rated cooling and 3.2 kW rated heating. R32 refrigerant, inverter operation, built-in Wi-Fi, Intelligent Eye sensing, Coanda cooling airflow, vertical heating airflow and Streamer air-treatment technology support efficient year-round comfort. Final capacity suitability must be confirmed by a qualified installer from the room’s heat load, insulation, glazing, orientation and local climate.
Quick Highlights
- Reverse-Cycle Output: Rated 2.5 kW cooling and 3.2 kW heating.
- Flexible Capacity: Cooling range of 0.9–3.7 kW and heating range of 0.9–5.0 kW.
- Built-In Wi-Fi: Integrated wireless module for Daikin’s compatible smartphone interface.
- Quiet Indoor Operation: Sound pressure down to 19 dBA on super-low fan operation.
- Compact Designer Finish: White Hair Line casing with a slim 185 mm depth.
- Streamer Technology: Plasma-discharge air treatment designed to act on substances captured by the filter.
- Intelligent Eye: Can enable energy-saving operation after 20 minutes without detected occupancy.
- Comfort Airflow: Coanda cooling airflow and floor-directed vertical heating airflow.
- R32 Refrigerant: Refrigerant selected for the system’s current inverter design.
- Trade-Friendly Pipework: 6.4 mm liquid and 9.5 mm gas connections with a 20 m maximum run.
Why Choose This Model (Daikin FTXJ25T-W 2.5kW Split System AC)?
The Daikin FTXJ25T-W 2.5kW Split System AC combines year-round performance with a design that does not dominate the room. Its slim White Hair Line indoor unit is supported by low-noise operation, built-in Wi-Fi and occupancy-based energy-saving control. The 2.5 kW cooling class is a practical candidate for bedrooms, offices and other smaller spaces, but professional sizing remains essential for dependable comfort and efficient operation.
Key Features
Built-In Wi-Fi Control
The wireless LAN module is integrated inside the indoor unit. Daikin’s compatible mobile interface allows supported temperature, mode and scheduling functions from a smartphone, subject to network, app and account requirements.
Intelligent Eye Occupancy Sensor
An infrared presence sensor monitors room occupancy. When no person is detected for 20 minutes, the system can enable an energy-saving operation to reduce unnecessary heating or cooling.
Coanda and Vertical Airflow
During cooling, shaped louvres direct air along the ceiling for longer reach and distribution. During heating, vertical airflow directs warm air down the wall and towards floor level for improved comfort.
Streamer Air-Treatment Technology
Daikin’s Streamer technology uses plasma discharge to assist with decomposition of selected substances captured on the filter. Published performance claims depend on Daikin’s stated laboratory test conditions and do not replace normal ventilation.
Advanced Filtration
A titanium apatite deodorising filter is designed to capture microscopic particles and assist with odour decomposition. Filters require regular inspection and cleaning in accordance with the operation manual.
Compact Saw-Edge Fan Design
The saw-edge aerofoil fan supports useful airflow from the compact indoor casing. The unit provides five fan steps plus quiet and automatic modes, with verified indoor sound pressure down to 19 dBA.
Ideal Applications of Daikin FTXJ25T-W 2.5kW Split System AC
- Bedrooms and Guest Rooms: Low indoor sound and a compact wall profile suit sound-sensitive spaces.
- Home Offices and Studies: Built-in Wi-Fi and steady inverter operation support convenient daily comfort.
- Smaller Living Areas: Appropriate where a professional heat-load calculation confirms the 2.5 kW cooling capacity.
- Design-Conscious Interiors: The White Hair Line finish and 185 mm depth reduce visual bulk.
Why Professionals Choose This Model (Daikin FTXJ25T-W 2.5kW Split System AC)?
HVAC installers, builders and wholesalers can specify the Daikin FTXJ25T-W 2.5kW Split System AC using a clearly matched indoor and outdoor combination. Standard 6.4 mm liquid and 9.5 mm gas connections, a 20 m maximum pipe length, a 15 m maximum level difference and integrated Wi-Fi support practical project planning. Correct site assessment, electrical design, installation and commissioning remain essential.
Technical Specifications
General & Performance
| Parameter | Verified Value |
|---|---|
| Kit / Indoor / Outdoor | FTXJ25T-W / FTXJ25TVMAW / RXJ25TVMA |
| Rated Capacity (Cool / Heat) | 2.5 kW / 3.2 kW |
| Cooling Capacity Range | 0.9–3.7 kW |
| Heating Capacity Range | 0.9–5.0 kW |
| E.E.R / C.O.P | 5.10 / 4.85 |
| A.E.E.R / A.C.O.P | 5.03 / 4.80 |
| TCSPF (Hot / Average / Cold) | 5.91 / 5.43 / 5.47 |
| HSPF (Hot / Average / Cold) | 4.93 / 4.70 / 4.40 |
| Front Panel Finish | White Hair Line |
Electrical Data
| Power Supply | 1 Phase, 220–240 V, 50 Hz |
| Rated Power Input (Cool / Heat) | 0.49 kW / 0.66 kW |
| Running Current | Not specified by the manufacturer in the sources reviewed. |
| Recommended Circuit Breaker | Not specified by the manufacturer in the sources reviewed. |
Dimensions & Weights
| Unit | Dimensions (H × W × D) | Net Weight |
|---|---|---|
| Indoor Unit (FTXJ25TVMAW) | 295 × 798 × 185 mm | 11 kg |
| Outdoor Unit (RXJ25TVMA) | 550 × 675 × 284 mm | 30 kg |
Noise Levels & Airflow
| Indoor Sound Pressure (High / Super Low), Cooling | 40 / 19 dBA |
| Indoor Sound Pressure (High / Super Low), Heating | 41 / 19 dBA |
| Outdoor Sound Pressure (High / Super Low), Cooling | 47 / 43 dBA |
| Outdoor Sound Pressure (High / Super Low), Heating | 48 / 44 dBA |
| Indoor Airflow Rate (High), Cooling / Heating | 177 L/s / 203 L/s |
| Indoor Fan Speeds | 5 steps, quiet and automatic |
Refrigerant & Piping Specifications
| Refrigerant Type | R32 |
| Compressor Type | Hermetically sealed swing type |
| Liquid Pipe Connection | 6.4 mm (1/4″) |
| Gas Pipe Connection | 9.5 mm (3/8″) |
| Maximum Piping Length | 20 m |
| Maximum Level Difference | 15 m |
| Outdoor Operating Range (Cooling) | −10°C to 46°C DB |
| Outdoor Operating Range (Heating) | −15°C to 18°C WB |
Installation Information of the Daikin FTXJ25T-W 2.5kW Split System AC
Installation of the Daikin FTXJ25T-W 2.5kW Split System AC must be completed by appropriately licensed tradespeople in accordance with Australian requirements and Daikin instructions. The verified pipe sizes are 6.4 mm liquid and 9.5 mm gas, with a maximum 20 m pipe run and 15 m level difference. Electrical protection, isolator, condensate route, mounting method, clearances and any additional refrigerant requirement must be confirmed from the official installation manual and actual site conditions.
Compatible Accessories
- Wi-Fi Module: Built into the indoor unit; a separate adaptor is not required.
- Outdoor Mounting Equipment: A suitable slab, feet or wall brackets may be selected by the installer for the site.
- Pipe Cover: Compatible installation trunking may be selected to conceal external services.
- Additional Daikin Controllers: Exact compatible part numbers were not specified by the manufacturer in the sources reviewed.
What’s Included in Daikin FTXJ25T-W 2.5kW Split System AC
- 1 × Indoor Wall-Mounted Unit (FTXJ25TVMAW)
- 1 × Outdoor Inverter Unit (RXJ25TVMA)
- 1 × Wireless Remote Controller
- Built-in Wi-Fi Module
Installation labour, pipework, electrical cabling and site-specific mounting hardware are not stated as included. Confirm the packaged documentation and components before dispatch.
Warranty
The Daikin FTXJ25T-W 2.5kW Split System AC is covered by Daikin Australia’s stated 5-year parts and labour warranty when purchased and professionally installed in domestic premises in Australia. Eligibility, exclusions, proof-of-purchase requirements and non-residential coverage remain subject to Daikin’s current warranty terms.
Frequently Asked Questions
Q1: What room size is suitable for this 2.5 kW split system?
A: No universal room area is specified. Bedrooms, offices and smaller living areas may be suitable, but a qualified installer must calculate heat load using insulation, glazing, orientation, ceiling height and climate.
Q2: Is the Daikin FTXJ25T-W reverse cycle?
A: Yes. It provides 2.5 kW rated cooling and 3.2 kW rated heating.
Q3: How quiet is the indoor unit?
A: The listed indoor sound pressure reaches 19 dBA at the super-low fan setting in cooling and heating. Perceived noise depends on installation and room conditions.
Q4: Does this model include Wi-Fi?
A: Yes. The wireless LAN module is built into the indoor unit for use with Daikin’s compatible smartphone interface.
Q5: What refrigerant does it use?
A: The system uses R32 refrigerant.
Q6: What models are supplied in the kit?
A: The FTXJ25T-W kit pairs the FTXJ25TVMAW indoor unit with the RXJ25TVMA outdoor unit.
Q7: Does this air conditioner require professional installation?
A: Yes. Refrigerant and electrical work must be completed by appropriately licensed tradespeople in accordance with Australian requirements.
