Daikin FBA60BAVMA 6kW Premium Slimline Ducted System

The Daikin FBA60BAVMA Premium Slimline ducted combination offers reverse-cycle heating and cooling through a professionally designed duct network. This listing specifies the FBA60BAVMA concealed indoor unit, RZAV60C2V1 outdoor unit and BRC1E63 wired controller. Rated output is 6.0kW cooling and 7.1kW heating, using R32 refrigerant and a single-phase power supply.

A slimline installation can be considered where the available ceiling space requires careful equipment planning. The final selection should reflect the building’s heating and cooling requirements, room layout and installation access. A professional assessment helps establish whether this combination suits the property and identifies the supporting materials and work required.

Daikin FBA60BAVMA Equipment Combination

The equipment references for this listing are the FBA60BAVMA indoor unit, RZAV60C2V1 outdoor unit and BRC1E63 wired controller. Include these references when requesting pricing so each quotation clearly identifies the intended combination. This also helps you check the supplied components against the order.

For replacement installations, provide photographs of the current equipment and its model labels. Explain any temperature, airflow or access problems you want addressed. Your installer can use this information when reviewing the existing arrangement and assessing whether ducts, refrigerant piping or controls can be retained.

Key Product Specifications

Brand	Daikin
Product range	Premium Inverter Slimline Ducted
Indoor model	FBA60BAVMA
Outdoor model	RZAV60C2V1
Controller specified	BRC1E63 wired controller
Rated cooling capacity	6.0kW
Rated heating capacity	7.1kW
Power supply	Single phase, 220–240V, 50Hz
Refrigerant	R32
Operation	Reverse-cycle heating and cooling
Indoor dimensions — H × W × D	245 × 1000 × 800mm
Outdoor dimensions — H × W × D	595 × 845 × 300mm

These dimensions describe the equipment casing only. The installation also needs room for duct connections, refrigerant piping, drainage, supports and servicing. Your installer should confirm the full space requirements using the applicable manufacturer instructions.

Low-Profile Slimline Indoor Design

The Daikin FBA60BAVMA has an indoor casing height of 245mm. This low profile is useful information when assessing ceiling space, but it does not establish the total clearance required for installation. Duct connections, service access and surrounding building elements must also be considered.

Have the proposed location and delivery route inspected before equipment is ordered. Access openings, structural members and other services can affect positioning. The installation should provide suitable support and allow maintenance to be carried out without unnecessary disruption to the finished interior.

Discuss access-panel locations during the design stage. Coordinating these details with ceiling finishes and other building work is especially useful in a renovation or new installation. A clear layout helps everyone understand where the equipment and connections will be located.

Premium Inverter Heating and Cooling

The Daikin FBA60BAVMA combination appears in Daikin’s Premium Inverter FBA range. Inverter operation allows compressor output to adjust as demand changes. Rated heating and cooling capacities describe thermal output under specified conditions rather than electricity consumption during every hour of use.

Actual energy use varies with outdoor conditions, temperature settings, operating hours and building performance. The completed duct installation also influences the result. Suitable insulation and airflow distribution help the selected equipment deliver conditioned air to the rooms included in the design.

When comparing proposals, ask which spaces have been included in the load assessment. Explain your normal operating schedule and identify rooms with strong sun exposure or large windows. These details help the installer select equipment around the property’s actual requirements.

Single-Phase Electrical Requirements

The Daikin FBA60BAVMA system combination uses a single-phase supply. An electrical assessment is still required to confirm that the property’s existing infrastructure is suitable. Circuit protection, cable routing and available switchboard capacity should be reviewed before installation.

Your quotation should describe the electrical work included in the project. Any required circuit, isolator, cable installation or switchboard changes should be identified clearly. For replacement work, existing electrical connections should be checked against the requirements of the proposed equipment.

Discreet Air Distribution Through Selected Rooms

A professionally designed Daikin FBA60BAVMA installation distributes conditioned air through ducts and supply outlets. The visible grilles and controller can be planned around the interior layout. Discuss outlet styles and locations early so the design reflects the rooms being served.

Air distribution should take account of room shape, furniture placement and the areas people occupy. Return-air positioning is also important because air needs a suitable route back to the system. Tell your installer which rooms are normally used with doors closed.

No fixed floor-area coverage is promised for this model. Properties with similar floor areas can have different loads because of insulation, glazing, orientation and ceiling height. A professional assessment provides a more useful basis for selection than floor area alone.

BRC1E63 Wired Controller

The controller specified for the Daikin FBA60BAVMA listing is the BRC1E63 wired controller. A fixed wall controller provides an accessible operating point for the air conditioner. Agree on its position during planning, considering visibility, convenience and the selected control configuration.

Request a demonstration at handover. This should cover everyday operation, temperature adjustment and any scheduling functions configured for the system. Keep the operating instructions accessible so other users can refer to them when needed.

Optional Zoning and Additional Controls

If different areas are occupied at different times, discuss zoning for the Daikin FBA60BAVMA during the assessment. The installer should consider your intended operating pattern alongside the airflow required by the equipment before recommending an arrangement.

Additional dampers, sensors, zone controllers and wiring should be identified in the quotation where required. The BRC1E63 specified here does not establish that a complete zoning package is included. Confirm how proposed zones will operate and whether particular areas need to remain open during use.

Any additional control requirements should be discussed before accepting the proposal. Compatibility and accessories must be checked for the exact indoor and outdoor combination. Existing controls should also be assessed before their reuse is included in a replacement project.

Duct Design and Installation Planning

A floor plan helps the installer assess a Daikin FBA60BAVMA project. Mark the rooms you want to condition, major windows and ceiling heights. Mention planned renovations or changes in room use so these can be considered during equipment selection.

Duct routes should be planned alongside the indoor unit position. Available space, duct lengths and bends influence the design. Suitable duct sizes and insulation should be selected, with airflow distributed according to the requirements of the rooms being served.

For an existing installation, ask for an inspection of the ducts and return-air arrangement. Damaged insulation, restricted ducts or unsuitable outlet positions may require attention during replacement. Include recommended repairs in the quotation so the final scope is clear.

RZAV60C2V1 Outdoor Unit Positioning

The outdoor unit paired with the Daikin FBA60BAVMA requires a suitable location with the clearances specified in its installation instructions. Consider airflow and service access alongside cabinet dimensions when assessing possible positions.

Discuss nearby windows, paths and outdoor living areas with the installer. Supports, refrigerant pipe routes and drainage should also be assessed. Future landscaping or screening must preserve the space required for operation and maintenance.

Package Inclusions and Quotation Scope

This listing identifies the indoor unit, outdoor unit and wired controller in the stated combination. Your written quotation should confirm the supplied package, stock availability and accessories included with the order. Use the exact model references when reviewing the proposal.

Ductwork, outlets, return-air components, zoning hardware, refrigerant piping, mounting materials, electrical work and installation labour should be identified where included. For replacements, confirm whether removal and disposal of existing equipment form part of the scope.

Professional Installation and Warranty Information

Arrange installation of the Daikin FBA60BAVMA through appropriately qualified professionals following the applicable manufacturer instructions and requirements. Retain the invoice, model details and commissioning documentation for future maintenance and service enquiries.

Confirm the applicable manufacturer warranty terms before purchasing, including conditions relevant to the intended application. If installation workmanship coverage is offered, request those terms in writing. Equipment and installation service arrangements should both be clear in the final documentation.

Routine Care and Maintenance

Request maintenance guidance specific to the completed installation. This should explain how to access and clean the fitted return-air filter and when professional servicing is recommended. Follow the supplied instructions because filter arrangements can differ between installations.

Keep accessible airflow paths clear and monitor the system for changes in operation. Reduced airflow, unusual noise, water leakage or persistent controller messages should be assessed by a qualified technician. Recording when an issue occurs can help the service provider investigate it.

Official Daikin Slimline Information

For manufacturer information about the Slimline range, visit the official Daikin ducted air conditioning page. Confirm model-specific details using the exact indoor and outdoor references in your quotation.

Request a Daikin FBA60BAVMA Quote

Provide your location, floor plan and whether the project is a new installation or replacement. Photographs of the available ceiling space and existing model labels can help clarify the requirements. State whether you need equipment supply only or assistance arranging an installation proposal.

Contact Air Conditioning Trade to request pricing, availability and a clearly defined quotation. You can also browse our air conditioning range to compare other available models.

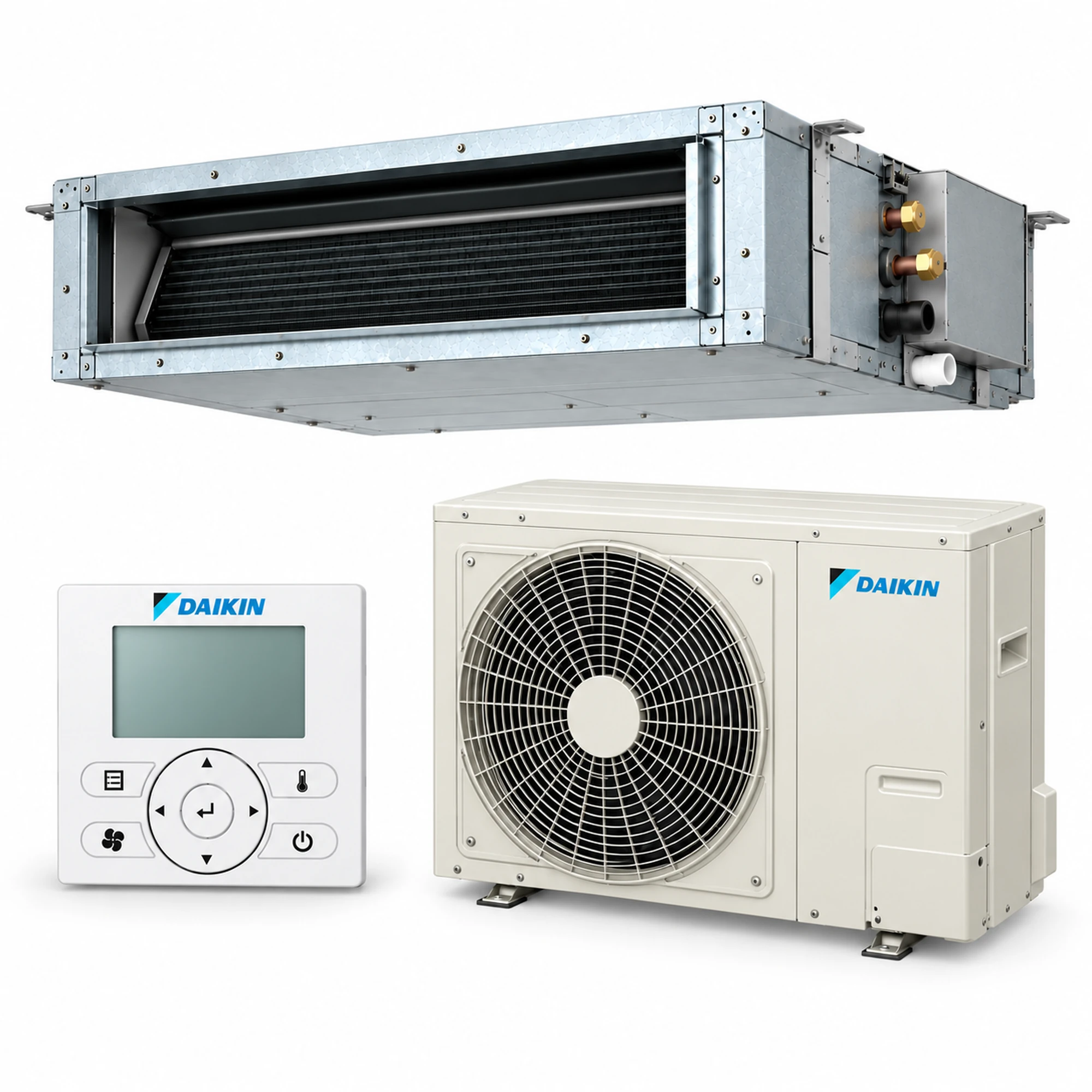

Product image is a representative illustration. Actual equipment appearance and minor cabinet details may vary. Confirm supplied components and the final installation scope in your written quotation.
