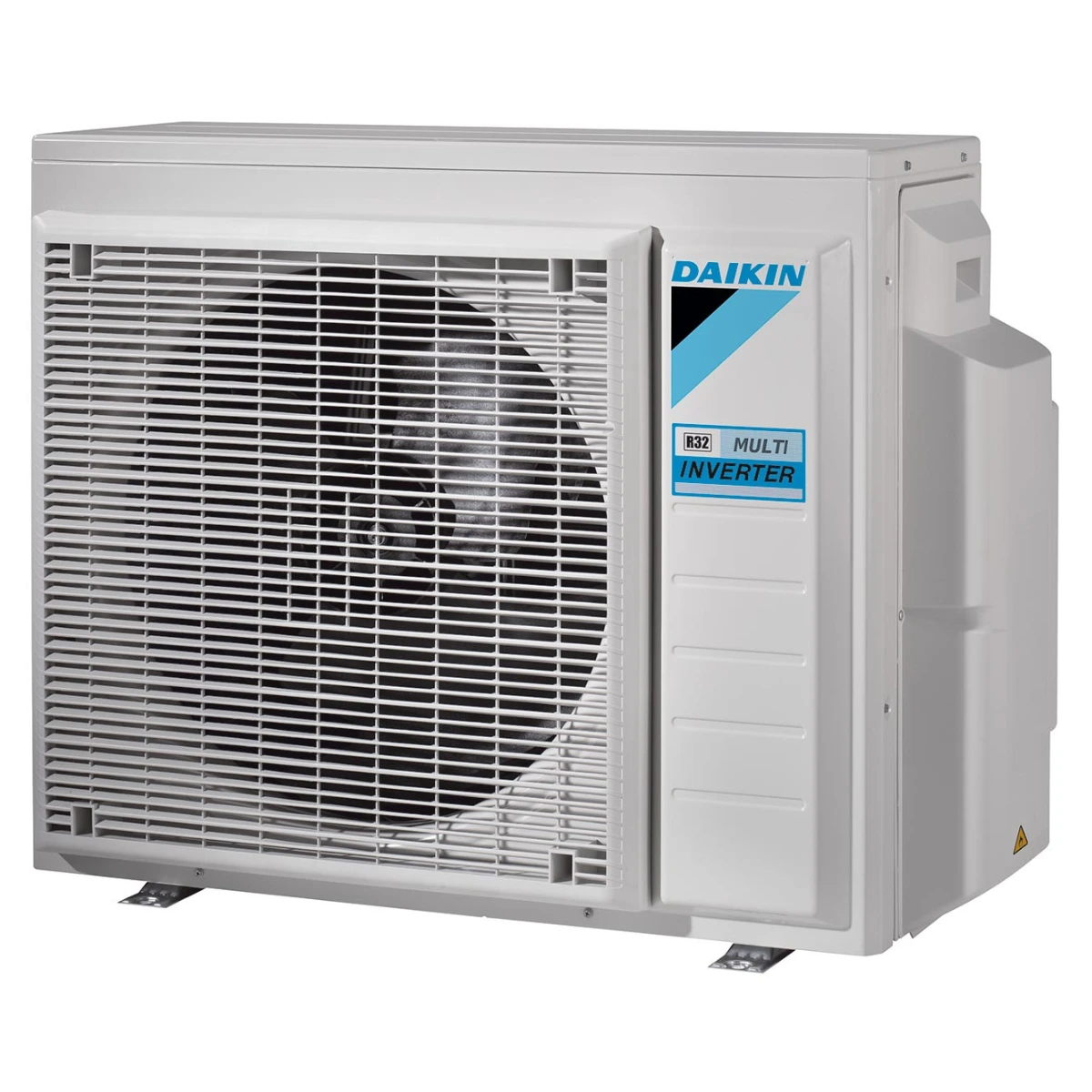

Daikin Super Multi NX 10.0kW 5-Port Reverse Cycle Outdoor Unit (Daikin 5MXM100MA0 10.0kW Multi-Split)
Outdoor Model Code: 5MXM100MA0 | Category: Multi-Split Outdoor Condensers
Product Overview
Engineered for whole-house climate control without cluttering wall perimeters, the Daikin 5MXM100MA0 10.0kW Multi-Split outdoor condenser forms the flagship core of 2-to-5 room conditioning systems. Delivering a heavy-duty 10.0 kW rated cooling capacity and 10.7 kW heating performance, it drives up to five indoor units—including wall-mounted heads, bulkhead ducts, or cassettes—with individual room setpoint management.
Equipped with Daikin’s hermetically sealed swing compressor, R32 refrigerant, and anti-corrosion treated heat exchanger fins, the 5MXM100MA0 modulates capacity dynamically depending on real-time indoor demand. This provides significant electrical savings when only selected bedrooms are running overnight while ensuring robust cooling during extreme Australian summer heat.
Quick Highlights
- 5-Port High Connectivity: Connects between 2 and 5 compatible indoor units to 1 outdoor condenser.
- Flagship System Capacity: Rated 10.0 kW nominal cooling capacity and 10.7 kW heating output.
- Daikin Swing Compressor: Reduces internal friction and eliminates refrigerant gas leakage for long compressor life.
- Independent Room Zoning: Operates connected rooms independently with individual temperature control.
- Eco-Friendly R32 Refrigerant: Lower global warming potential and superior thermodynamic heat transfer.
- Corrosion-Resistant Heat Exchanger: Acrylic resin treated condenser fins for extended outdoor durability.
- Night Quiet Operation: Automatically reduces outdoor operational sound pressure levels at night.
- Maximum Space Saving: Replaces up to 5 individual single-split outdoor units with one compact footprint.
- Versatile Indoor Combinations: Mix wall heads, bulkheads, or cassettes to suit individual room interiors.
- 5-Year Domestic Warranty: Full Australian parts and labour warranty backing.
Why Choose This Model (Daikin 5MXM100MA0 10.0kW Multi-Split)?
The Daikin 5MXM100MA0 10.0kW Multi-Split outdoor unit is the ultimate solution for large homes needing individual multi-room temperature control while preserving outdoor yard aesthetics. Rather than installing four or five individual single-split condensers, this high-capacity 5-port unit runs up to five rooms independently, throttling power down smoothly when only a fraction of the house is active to maximize seasonal energy savings.
Key Features
Multi-Room Inverter Zoning
Daikin’s Super Multi NX architecture allows one outdoor unit to support up to 5 indoor head units. Each room retains independent temperature control, enabling family members to customize setpoints without wasting electricity in unoccupied zones.
Patented Swing Compressor Technology
Features Daikin’s exclusive swing compressor, integrating the vane and roller into a single moving part. This design eliminates mechanical friction, vibration, and refrigerant gas leakage, driving up seasonal energy efficiency and compressor durability.
Anti-Corrosion Outdoor Fin Treatment
The outdoor heat exchanger fins are treated with an acrylic resin layer and hydrophilic film. This protection shields aluminum condenser fins against acidic rain, harsh weather, and coastal salt-air corrosion.
Night Quiet Operation Function
Automatically lowers outdoor unit operational noise by up to 3 dBA when ambient outdoor temperatures drop at night, ensuring whisper-quiet performance that satisfies suburban acoustic guidelines.
Next-Generation R32 Refrigerant
Operates on single-component R32 refrigerant, which conveys heat more efficiently than legacy gases. R32 reduces global warming potential by 68% compared to R410A, lowering environmental impact and running costs.
Ideal Applications
- 4–5 Bedroom Residences: Conditions master suite, guest rooms, study, and main living zone from one central outdoor unit.
- Multi-Level Executive Homes: Ideal where outdoor mounting space is restricted to a single service area or side path.
- Comprehensive Multi-Zone Renovations: Allows flexible phased installation of indoor units to suit construction timelines.
Why Professionals Choose This Model (Daikin 5MXM100MA0 10.0kW Multi-Split)?
HVAC contractors and installers choose the Daikin 5MXM100MA0 10.0kW Multi-Split for its high multi-port capacity, flexible pipe length allowances, and reliable circuit design. Daikin’s Super Multi NX 5-port platform provides excellent operational reliability, clear diagnostic feedback, and easy flare serviceability.
Technical Specifications
General & Performance
| Specification Parameter | System Value |
|---|---|
| Model Code | 5MXM100MA0 |
| Connectable Indoor Units | 2 to 5 Ports |
| Rated Cooling Capacity | 10.00 kW |
| Rated Heating Capacity | 10.70 kW |
| Cooling / Heating Capacity Range | Not specified by manufacturer |
Electrical Data
| Power Supply | 1 Phase, 220–240 V, 50 Hz |
| Power Input (Cool / Heat) | Not specified by manufacturer |
Dimensions & Weights
| Outdoor Unit Dimensions (H × W × D) | Not specified by manufacturer |
| Outdoor Net Weight | Not specified by manufacturer |
Refrigerant & Compressor Specs
| Compressor Type | Hermetically Sealed Swing Compressor |
| Refrigerant Type | R32 |
| Heat Exchanger Protection | Anti-Corrosion Acrylic Resin Coated Fins |
Piping & Installation Requirements
| Liquid / Gas Pipe Sizes | Multi-Port Standard Flare Connections |
| Max Total Pipe Length / Elevation | Not specified by manufacturer |
Installation Information of the Daikin 5MXM100MA0 10.0kW Multi-Split
Installation of the Daikin 5MXM100MA0 10.0kW Multi-Split outdoor unit must be conducted by an ARC-licensed refrigeration technician to ensure correct line evacuation, inter-unit power wiring, and refrigerant charge handling. The outdoor unit should sit level on a solid mounting pad or wall bracket with adequate air clearance surrounding the intake coil.
Compatible Accessories
- Galvanised Outdoor Brackets: Heavy-duty powder-coated steel brackets for elevated mounting.
- Polymer Mounting Footings: Heavy-duty UV-stabilised equipment feet for ground-level placement.
- Daikin Compatible Indoor Units: Wall-mounted heads, bulkhead ducts, and cassettes (sold separately).
What’s Included in Daikin 5MXM100MA0 10.0kW Multi-Split
- 1 x Daikin Super Multi NX 5-Port Outdoor Condenser Unit (5MXM100MA0)
- 1 x Outdoor Drain Nipple Assembly
- 1 x Technical Installation Manual
Warranty
The Daikin 5MXM100MA0 10.0kW Multi-Split outdoor unit includes Daikin’s official 5-Year Parts and Labour Warranty for residential installations across Australia when installed by an accredited ARC professional.
Frequently Asked Questions
Q1: How many indoor units can I connect to the Daikin 5MXM100MA0 outdoor unit?
A: The 5MXM100MA0 is a 5-port outdoor unit that supports between 2 and 5 compatible Daikin multi-split indoor units.
Q2: Can I control connected indoor units independently?
A: Yes. Each connected room features independent temperature control, allowing you to run any combination of indoor units or switch off empty rooms.
Q3: What refrigerant does this unit use?
A: The system operates on eco-friendly R32 refrigerant.
Q4: Does this item include indoor head units?
A: No. This listing covers the 5MXM100MA0 outdoor condenser unit only. Indoor head units are selected separately according to individual room sizes.
Q5: Is professional installation required?
A: Yes. In Australia, all split system refrigerant connections must be performed by a licensed ARC air conditioning installer.
