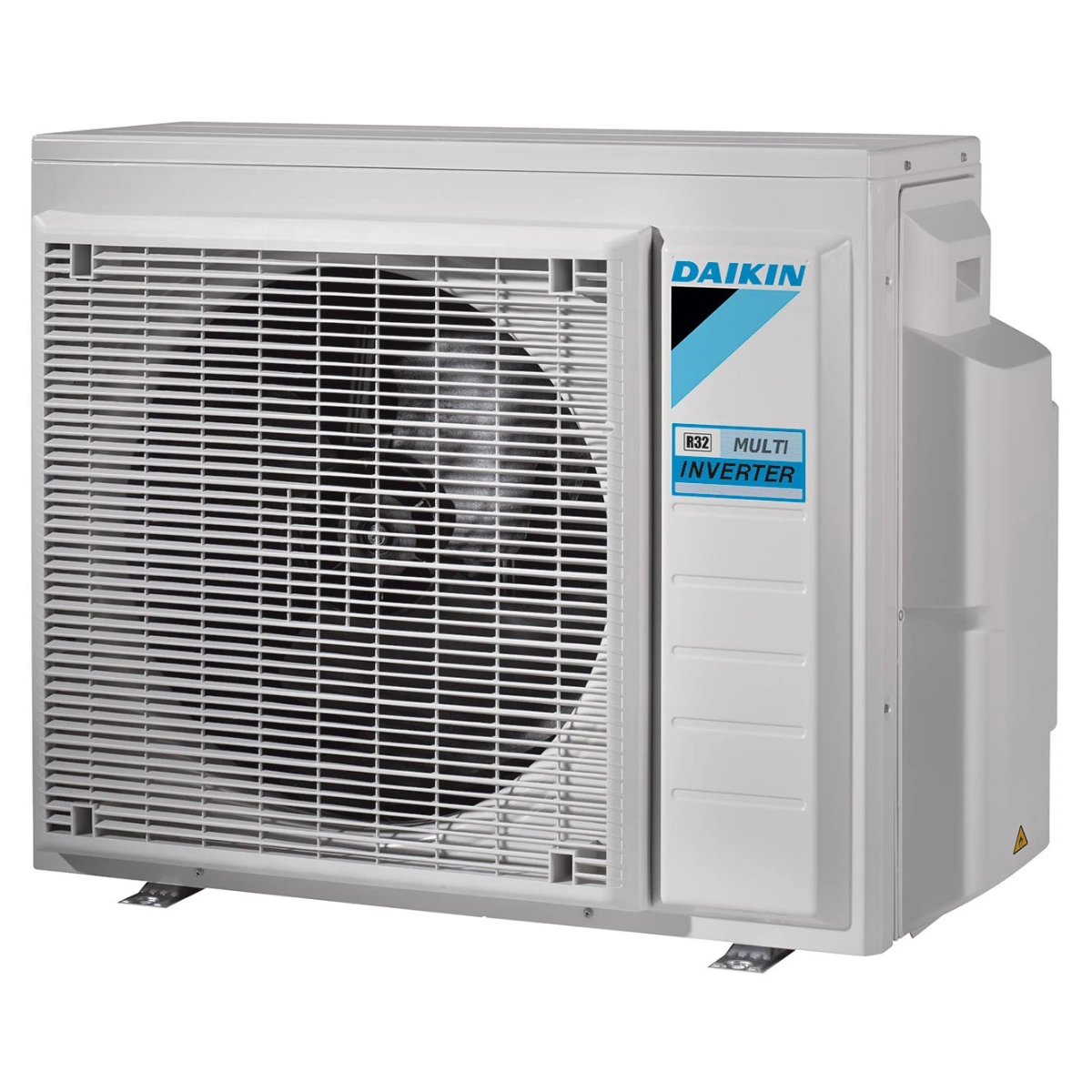

Daikin Super Multi NX 6.0kW 3-Port Reverse Cycle Outdoor Unit (Daikin 3MXM60MA0 6.0kW Multi-Split)
Outdoor Model Code: 3MXM60MA0 | Category: Multi-Split Outdoor Condensers
Product Overview
Designed to deliver whole-home multi-room conditioning without cluttering exterior walls, the Daikin 3MXM60MA0 6.0kW Multi-Split outdoor condenser is the ideal core for 2-to-3 room air conditioning setups. Delivering a rated 6.0 kW cooling capacity and 8.6 kW heating performance, it drives multiple indoor units—including wall-mounted, duct-connected, or cassette options—with individual zone regulation.
Featuring Daikin’s hermetically sealed swing compressor, R32 refrigerant, and anti-corrosion treated heat exchanger fins, the 3MXM60MA0 dynamically ramps capacity up or down depending on how many indoor heads are actively running. This ensures minimal electrical power consumption while maintaining precise thermal comfort across bedrooms and living spaces.
Quick Highlights
- 3-Port Connectivity: Connects between 2 and 3 compatible indoor units to 1 outdoor condenser.
- System Capacity: Rated 6.0 kW nominal cooling capacity and 8.6 kW heating capacity.
- Daikin Swing Compressor: Reduces internal friction and refrigerant leakage for smooth, reliable operation.
- Individual Zone Control: Operates connected rooms independently with separate setpoint schedules.
- Eco-Friendly R32 Refrigerant: Lower global warming impact and enhanced operational heat transfer.
- Corrosion-Resistant Heat Exchanger: Acrylic resin treated condenser fins for extended outdoor life.
- Quiet Outdoor Mode: Reduces outdoor operational sound pressure levels for night-time neighbourhood peace.
- Compact Footprint: Replaces up to 3 individual single-split outdoor units to save exterior yard space.
- Flexible Indoor Mix: Mix and match wall heads, bulkheads, or cassettes according to room design.
- 5-Year Domestic Warranty: Full Australian parts and labour warranty backing.
Why Choose This Model (Daikin 3MXM60MA0 6.0kW Multi-Split)?
Choosing the Daikin 3MXM60MA0 6.0kW Multi-Split outdoor unit provides complete multi-room comfort while keeping your home’s exterior clean and uncluttered. Instead of installing three separate outdoor boxes, this single 3-port unit runs up to three rooms independently, throttling its power down when only one bedroom is in use to deliver incredible energy savings during overnight operation.
Key Features
Multi-Room Inverter Versatility
Daikin’s Super Multi NX architecture allows one outdoor unit to connect up to 3 indoor heads. Each room retains independent temperature control, allowing family members to set custom cooling or heating levels without wasting power in empty rooms.
Patented Swing Compressor Engineering
Features Daikin’s exclusive swing compressor, which integrates the vane and roller into a single moving part. This eliminates friction, vibration, and refrigerant gas leakage, driving up seasonal energy efficiency while extending compressor mechanical life.
Anti-Corrosion Outdoor Fin Treatment
The outdoor heat exchanger fins are coated with an acrylic resin layer and hydrophilic film. This dual treatment protects the aluminum condenser fins against severe weather, acid rain, and coastal salt-air corrosion.
Night Quiet Operation Function
Automatically drops outdoor unit operational sound levels by up to 3 dBA when ambient outdoor temperatures decrease at night. This ensures ultra-quiet performance that satisfies suburban noise regulations.
Next-Generation R32 Refrigerant
Operates on R32 refrigerant, which conveys heat more efficiently than legacy gases. R32 reduces global warming impact by 68% compared to R410A, helping homeowners reduce carbon emissions and power bills.
Ideal Applications
- 2–3 Bedroom Homes: Simultaneously conditions master suite, second bedroom, and study room from one outdoor unit.
- Townhouses & High-Density Blocks: Perfect where outdoor balcony or yard space is restricted.
- Multi-Zone Living Extensions: Allows phased additions of indoor units to match home renovation budgets.
Why Professionals Choose This Model (Daikin 3MXM60MA0 6.0kW Multi-Split)?
HVAC contractors and installers choose the Daikin 3MXM60MA0 6.0kW Multi-Split for its robust circuit architecture, flexible pipe length limits, and simple wiring interface. Daikin’s Super Multi NX series offers excellent multi-port reliability, clear diagnostic feedback, and easy flare serviceability, giving installers complete confidence on site.
Technical Specifications
General & Performance
| Specification Parameter | System Value |
|---|---|
| Model Code | 3MXM60MA0 |
| Connectable Indoor Units | 2 to 3 Ports |
| Rated Cooling Capacity | 6.00 kW |
| Rated Heating Capacity | 8.60 kW |
| Cooling / Heating Capacity Range | Not specified by manufacturer |
Electrical Data
| Power Supply | 1 Phase, 220–240 V, 50 Hz |
| Power Input (Cool / Heat) | Not specified by manufacturer |
Dimensions & Weights
| Outdoor Unit Dimensions (H × W × D) | Not specified by manufacturer |
| Outdoor Net Weight | Not specified by manufacturer |
Refrigerant & Compressor Specs
| Compressor Type | Hermetically Sealed Swing Compressor |
| Refrigerant Type | R32 |
| Heat Exchanger Protection | Anti-Corrosion Acrylic Resin Coated Fins |
Piping & Installation Requirements
| Liquid / Gas Pipe Sizes | Multi-Port Standard Flare Connections |
| Max Total Pipe Length / Elevation | Not specified by manufacturer |
Installation Information of the Daikin 3MXM60MA0 6.0kW Multi-Split
Installation of the Daikin 3MXM60MA0 6.0kW Multi-Split outdoor unit must be conducted by an ARC-licensed HVAC technician to ensure proper vacuum evacuation, electrical inter-unit wiring, and line insulation. The outdoor unit should sit level on a solid concrete mounting pad or heavy-duty wall brackets with clear airflow clearance around the coil intake.
Compatible Accessories
- Galvanised Outdoor Brackets: Powder-coated steel brackets for elevated mounting.
- Polymer Base Feet: UV-stabilised mounting footings for ground-level outdoor placement.
- Daikin Compatible Indoor Units: Wall-mounted heads, bulkhead ducts, and cassettes (sold separately).
What’s Included in Daikin 3MXM60MA0 6.0kW Multi-Split
- 1 x Daikin Super Multi NX 3-Port Outdoor Condenser Unit (3MXM60MA0)
- 1 x Outdoor Drain Nipple Assembly
- 1 x Installation & Technical Operating Manual
Warranty
The Daikin 3MXM60MA0 6.0kW Multi-Split outdoor unit includes Daikin’s official 5-Year Parts and Labour Warranty for residential installations across Australia when fitted by a qualified ARC professional.
Frequently Asked Questions
Q1: How many indoor units can I connect to the Daikin 3MXM60MA0 outdoor unit?
A: The 3MXM60MA0 is a 3-port outdoor unit allowing you to connect between 2 and 3 compatible Daikin multi-split indoor head units.
Q2: Do all indoor units need to run at the same time?
A: No. Each connected room features independent control. You can run one, two, or all three units simultaneously, or switch individual rooms off.
Q3: What refrigerant does this multi-split outdoor unit use?
A: The unit operates on high-efficiency, eco-friendly R32 refrigerant.
Q4: Does this package include indoor units?
A: No. This listing is for the 3MXM60MA0 outdoor condenser unit only. Indoor head units are selected separately according to room sizes.
Q5: Is professional installation required?
A: Yes. In Australia, all split system refrigeration connections must be performed by a licensed ARC air conditioning installer.
