Product Identification

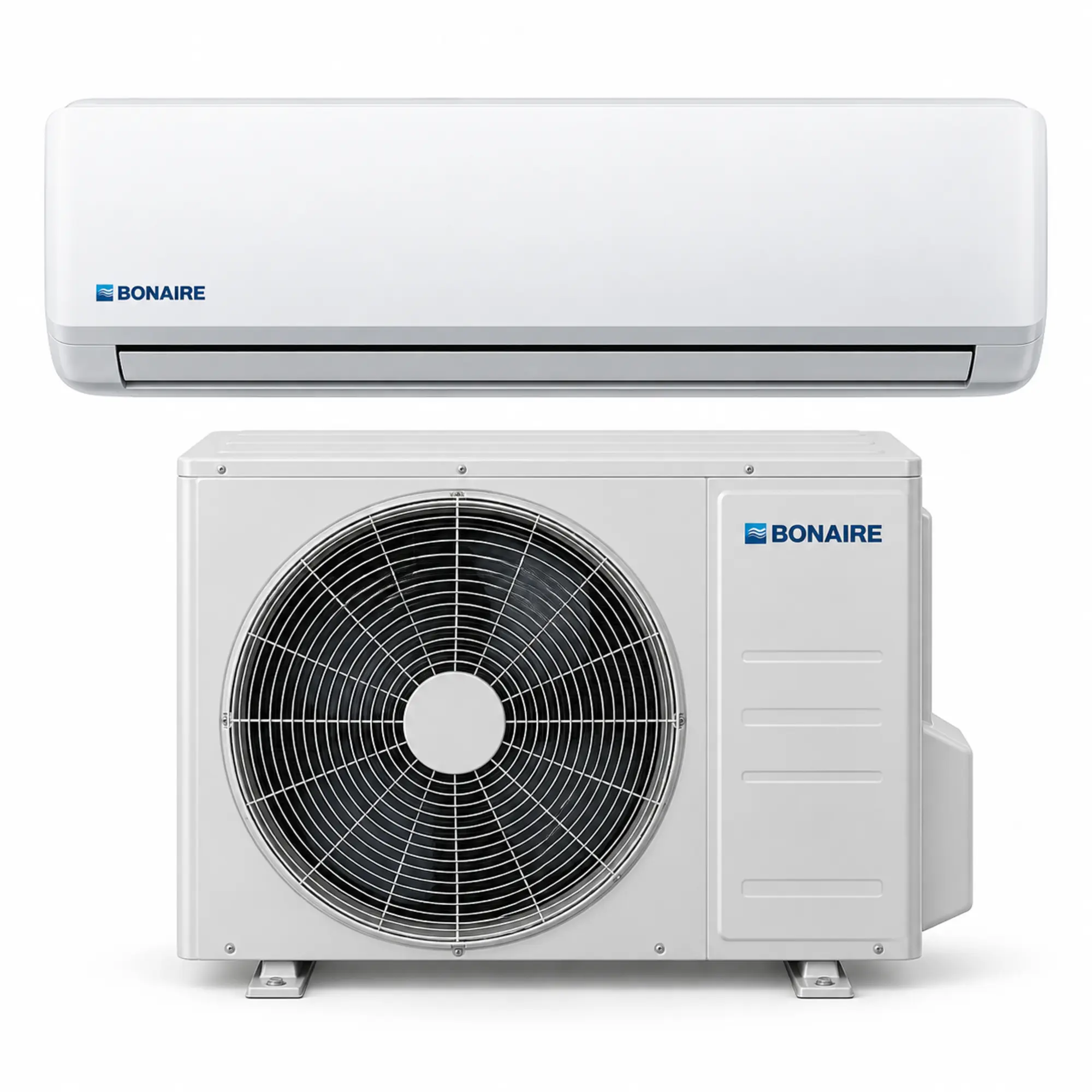

Bonaire Optima Series III MK2 7.2kW Split System – STH072S1AI / STH072S1AE
Indoor unit: STH072S1AI |
Outdoor unit: STH072S1AE |
System type: Reverse cycle wall-mounted split system
Product Overview
The Bonaire 7.2kW split system is a high-capacity reverse cycle air conditioner designed to provide powerful heating and cooling for larger living rooms, family areas and open-plan residential spaces. This complete system combines the STH072S1AI indoor unit with the matching STH072S1AE outdoor unit, supplying both components as one properly matched air conditioning system.
With 7.2kW rated cooling capacity and 7.1kW rated heating capacity, this model provides substantial performance for rooms requiring more output than a standard bedroom air conditioner. Reverse cycle operation allows the same system to cool the space during Melbourne’s warmer weather and provide efficient heating during colder periods.
The Bonaire Optima Series III MK2 range includes inverter technology, smart Wi-Fi control, R32 refrigerant, 3D airflow, self-cleaning functionality, dehumidification and an “I Feel” temperature-sensing function. These features combine convenient control with practical everyday comfort.
This system is also supported by Bonaire’s industry-leading seven-year parts and labour warranty for eligible installations. Current warranty terms, registration requirements, professional installation conditions and servicing obligations should be reviewed before purchase.
Quick Highlights
- Cooling capacity: 7.2kW rated, with a 1.5–7.7kW operating range
- Heating capacity: 7.1kW rated, with a 1.3–7.5kW operating range
- Complete system: Indoor and outdoor units supplied as one matched combination
- Smart control: Wi-Fi connectivity for compatible smartphones and tablets
- System operation: Reverse cycle inverter heating and cooling
- Refrigerant: R32 refrigerant
- Comfort functions: 3D airflow, dehumidification and “I Feel” sensing
- Protection: Gold Fin coating for added corrosion resistance
- Warranty: Seven-year parts and labour warranty, subject to Bonaire’s conditions
Why Choose the Bonaire 7.2kW Split System?
The Bonaire STH072S1AI 7.2kW split system is designed for residential spaces that require substantial cooling and heating capacity. Its higher output makes it a practical option for family rooms, larger lounge areas and suitable open-plan layouts where a smaller air conditioner may struggle to maintain the selected temperature.
Inverter technology allows the compressor to vary its output according to the room’s heating or cooling demand. When the room approaches the selected temperature, the system can reduce its output instead of continually operating at maximum capacity. This supports steadier comfort and can reduce unnecessary energy use.
The system has a cooling operating range of approximately 1.5kW to 7.7kW and a heating operating range of approximately 1.3kW to 7.5kW. This variable operation allows the air conditioner to respond to changing indoor and outdoor conditions.
Actual performance, power consumption and running costs will depend on room size, insulation, ceiling height, windows, sunlight exposure, outdoor temperature, selected settings and installation quality. A professional assessment is recommended before choosing a high-capacity system.
Key Features
Powerful Reverse Cycle Operation
The system provides 7.2kW rated cooling and 7.1kW rated heating, making it suitable for larger areas requiring year-round temperature control.
Smart Wi-Fi Control
Compatible functions can be accessed through a suitable smartphone or tablet after the system has been connected and configured correctly. Users may adjust settings, create schedules and manage operation remotely.
Inverter Technology
Inverter operation allows the system to adjust its output based on room conditions rather than operating continuously at one fixed capacity.
R32 Refrigerant
The system uses R32 refrigerant, which is commonly used in modern residential split systems. Refrigerant handling and installation must be completed by an appropriately licensed professional.
3D Airflow
The 3D airflow function assists with distributing conditioned air around a larger room, supporting more balanced comfort across the occupied area.
“I Feel” Temperature Sensing
The “I Feel” function can help the system respond to conditions around the sensing location instead of relying only on the temperature measured at the wall-mounted unit.
Dehumidification Mode
Dehumidification can help reduce excess indoor moisture during humid conditions, improving comfort without always requiring maximum cooling output.
Self-Cleaning Function
Self-cleaning technology supports the ongoing care of the indoor unit. This function does not replace regular filter cleaning, inspection or professional maintenance.
Gold Fin Coating
Gold Fin coating provides additional corrosion resistance for the outdoor heat exchanger. Correct installation positioning and routine maintenance remain essential.
DRED Enabled
Demand Response Enabling Device compatibility allows the system to support applicable demand-response programs when the necessary equipment and services are available.
Industry-Leading 7-Year Warranty
Bonaire promotes a seven-year parts and labour warranty for eligible Series 3 systems. Warranty eligibility may depend on professional installation, registration, proof of purchase, servicing requirements and compliance with the manufacturer’s current warranty terms. Customers should retain their purchase, installation and servicing documentation.
Ideal Applications
- Larger family living rooms
- Open-plan lounge and dining areas
- Large residential rooms
- Apartments and townhouses with larger shared spaces
- Rooms with higher heating or cooling requirements
- Replacement of an older, similar-capacity split system
The 7.2kW capacity does not automatically make this model suitable for every large room. Open-plan spaces can have different heat loads depending on their layout, connected areas, insulation and glazing. A professional load assessment can help prevent selecting a system that is either undersized or unnecessarily large.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Bonaire |
| Series | Optima Series III MK2 |
| Indoor model | STH072S1AI |
| Outdoor model | STH072S1AE |
| Rated cooling capacity | 7.2kW |
| Cooling range | 1.5–7.7kW |
| Rated heating capacity | 7.1kW |
| Heating range | 1.3–7.5kW |
| Cooling input power | 2.03kW rated |
| Heating input power | 2.08kW rated |
| Refrigerant | R32 |
| Power supply | 220–240V, 50Hz |
| Breaker size | 16A |
| Indoor sound power level | 64dB(A) |
| Outdoor sound power level | 66dB(A) |
| Indoor dimensions | 1097 × 332 × 222mm |
| Indoor net weight | 14kg |
| Outdoor dimensions | 927 × 380 × 699mm |
| Outdoor net weight | 38.5kg |
| Liquid pipe size | 6.35mm (1/4 inch) |
| Gas pipe size | 12.7mm (1/2 inch) |
| Factory pre-charge | Up to 20 metres |
| Maximum pipe distance | 20m length / 15m height |
| Temperature range | 16–31°C |
Installation and Compatibility
This product is supplied as one complete system containing the STH072S1AI indoor unit and matching STH072S1AE outdoor unit. Although the two components have separate model numbers, customers should select a quantity of one when requesting one complete system.
Installation must be completed by a suitably licensed air conditioning professional. Requirements may vary according to pipe length, electrical access, wall construction, condensate drainage, outdoor-unit placement, mounting requirements and site accessibility.
Installation is included only when clearly stated in the written quotation. Additional electrical work, pipework, mounting equipment or difficult-access work may affect the final installed cost.
Frequently Asked Questions
Does this product include both units?
Yes. One complete product includes one STH072S1AI indoor unit and one matching STH072S1AE outdoor unit.
Does the system provide heating?
Yes. This reverse cycle system offers 7.2kW rated cooling and 7.1kW rated heating.
Does this Bonaire system include a seven-year warranty?
Bonaire promotes a seven-year parts and labour warranty for eligible systems. Installation, registration, servicing and current manufacturer conditions apply.
Can the system be controlled through Wi-Fi?
Yes. Smart Wi-Fi functionality is included. A compatible device, suitable Wi-Fi connection and correct application setup may be required.
Is the 7.2kW model suitable for an open-plan area?
It may suit an appropriately sized open-plan area, but a professional capacity assessment is recommended because layouts and heat loads differ between properties.
Is installation included?
Installation is included only when expressly stated in the quotation. Request an individual quotation for product supply, delivery and installation assistance.
Why Buy From Air Conditioning Trade?
Air Conditioning Trade supplies dependable air conditioning equipment to homeowners, installers and trade customers across Melbourne. Request current pricing, product availability, Melbourne delivery information and professional installation support for the Bonaire Optima Series III MK2 7.2kW split system.
Manufacturer information:
View the Bonaire split-system product range
Product features, specifications and warranty eligibility should be confirmed against current Bonaire documentation before purchase or installation.
