Bonaire 16kW Ducted System – Powerful Whole-Home Climate Control

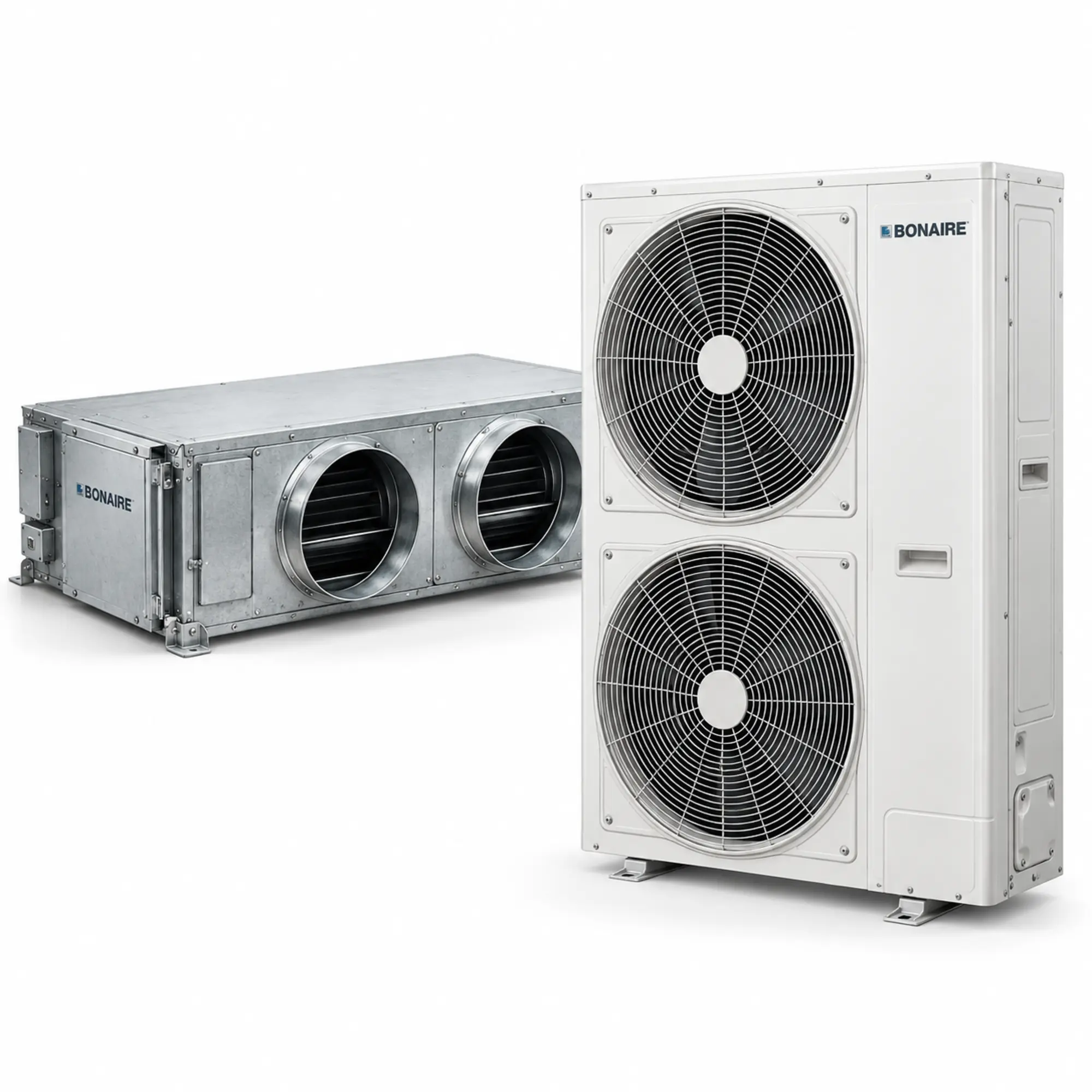

The Bonaire 16kW ducted system combines the CTG160S1AI indoor unit and CTG160S1AE outdoor unit to provide powerful reverse cycle heating and cooling throughout large Australian homes. With a rated cooling capacity of 16kW and heating capacity of 19kW, this matched system is designed for properties that require reliable airflow across several rooms or multiple climate zones.
Concealed within the roof space, the indoor unit distributes conditioned air through a professionally designed duct network. Only the discreet ceiling or wall outlets remain visible inside the home. The result is a clean and uncluttered interior combined with dependable year-round comfort.
Product Identification
| Brand | Bonaire |
| System type | High-static ducted reverse cycle air conditioner |
| Indoor model | CTG160S1AI |
| Outdoor model | CTG160S1AE |
| Cooling capacity | 16kW, operating range 4.1–17.8kW |
| Heating capacity | 19kW, operating range 6.0–19.8kW |
| Refrigerant | R32 |
Quick Highlights
- 16kW rated cooling capacity
- 19kW rated heating capacity
- High-static airflow capability up to 200Pa
- Efficient inverter compressor and DC indoor fan motor
- R32 refrigerant
- DRED-enabled operation and economy mode
- Optional Wi-Fi controller compatibility
- Compatible with suitable third-party zoning controllers
- Quiet night operating mode
- Single-phase 220–240V power supply
Why Choose the Bonaire 16kW Ducted System?
The Bonaire CTG160 is the largest-capacity model in Bonaire’s current CTG high-static ducted reverse cycle range. Its strong output makes it a suitable option for large family homes, open-plan residences and selected light-commercial applications where a smaller system may not provide sufficient airflow or capacity.
The system uses inverter technology to adjust compressor performance according to the building’s heating or cooling demand. Instead of operating continuously at maximum capacity, the compressor can vary its output to maintain a more stable indoor temperature. This can help improve comfort and reduce unnecessary power consumption during periods of lower demand.
High-Static Airflow for Larger Duct Networks

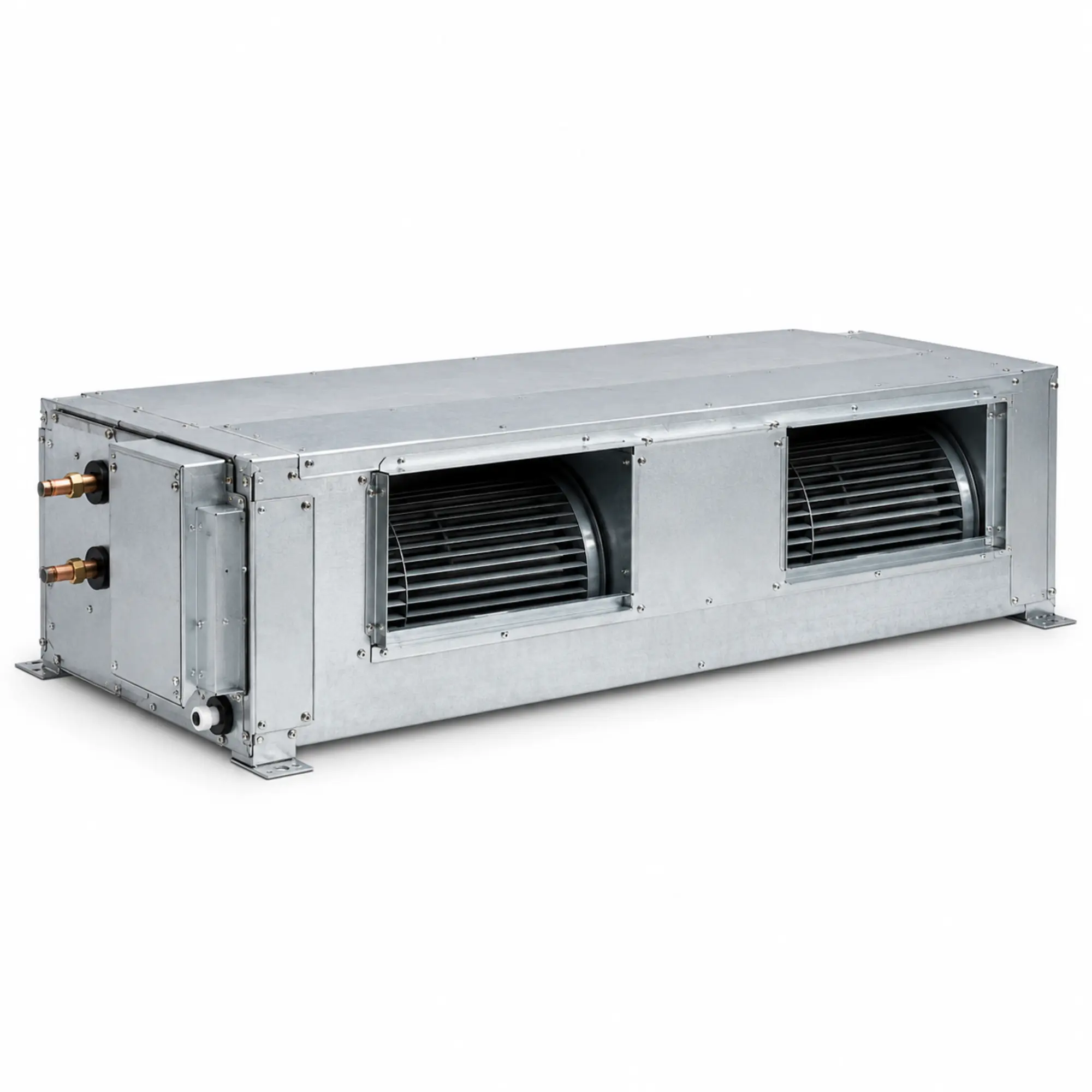

The CTG160S1AI indoor unit supports external static pressure settings from 0 to 200Pa. Its high-static design helps move conditioned air through longer or more complex duct networks when the complete installation has been properly designed and commissioned.
The indoor unit provides airflow settings of approximately 1120, 950 and 780 litres per second. This strong airflow makes the system suitable for distributing conditioned air across multiple rooms and zones. Final duct sizes, outlet locations, return-air requirements and zoning arrangements must be determined by a qualified air-conditioning professional.
R32 Refrigerant and Efficient Operation
The system operates with R32 refrigerant, which has a lower global warming potential than the older R410A refrigerant commonly used in previous-generation air-conditioning systems. R32 also supports efficient heat-transfer performance and is widely used in modern reverse cycle air conditioners.
The Bonaire CTG160 also includes a DC indoor fan motor, inverter compressor operation, an economy mode and Demand Response Enabling Device compatibility. Actual electricity consumption will depend on the building design, insulation, selected temperature, zoning arrangement, weather conditions and operating time.
Bonaire Warranty Support
Bonaire air-conditioning products are supported by manufacturer warranty coverage. Where the system qualifies for Bonaire’s advertised seven-year parts and labour warranty, registration, residential-use requirements, professional installation and the manufacturer’s warranty terms and conditions may apply.
Please confirm current warranty eligibility and registration requirements before purchase or installation.
Smart Controls and Zoning Compatibility
The Bonaire 16kW ducted system can integrate with an optional compatible Wi-Fi controller, allowing convenient control through a supported smartphone or tablet. Compatibility with suitable third-party zoning controllers also allows the duct network to be divided into separate areas.
A properly designed zoning system can provide greater flexibility by allowing selected rooms or areas to be conditioned when required. Zoning equipment, zone motors, additional sensors, Wi-Fi accessories and installation materials are not automatically included unless they are specifically listed in your quotation.
Quiet Night Operation

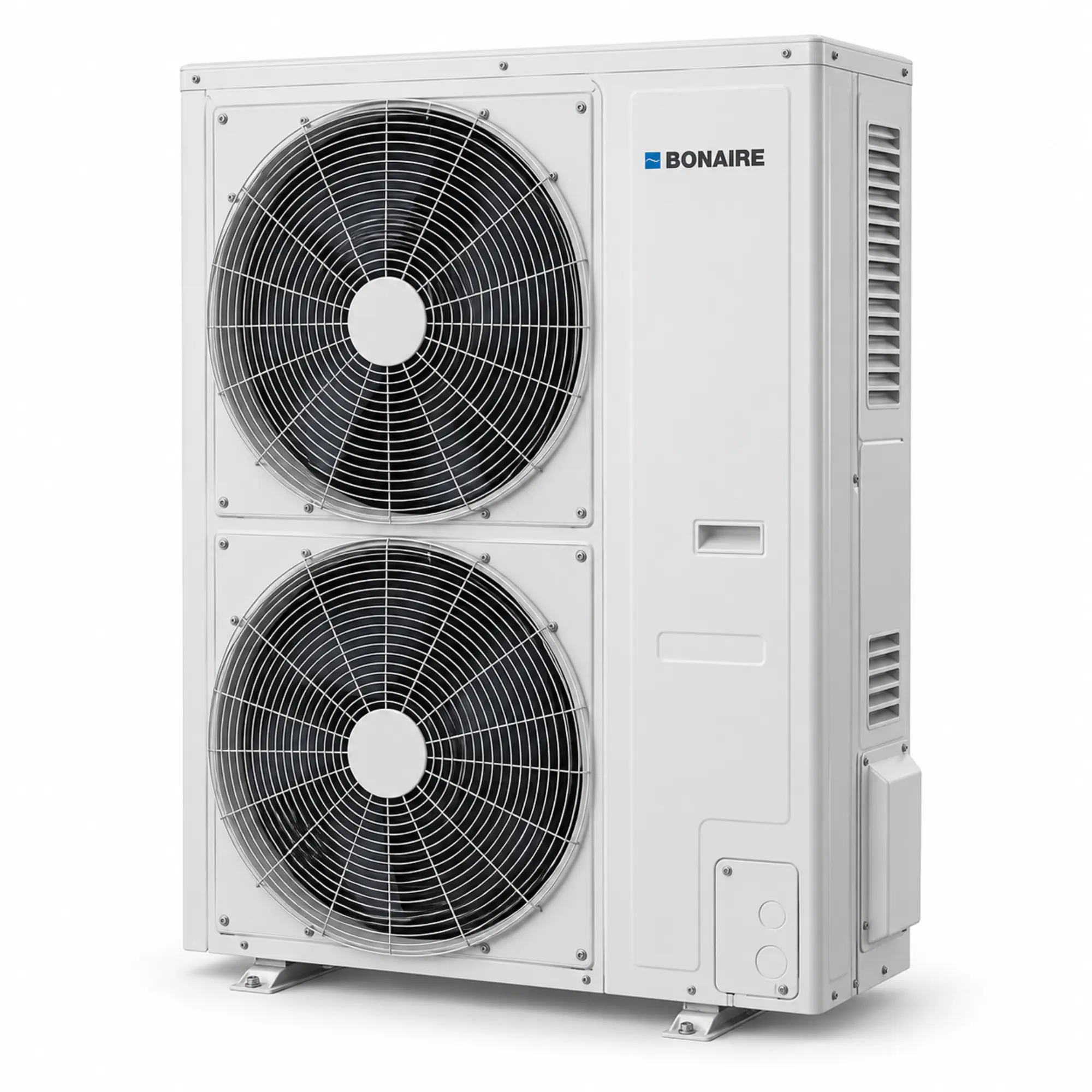

The outdoor unit includes a night quiet mode rated at approximately 55dB(A). This mode is intended to reduce outdoor operating noise during quieter periods. The standard outdoor sound-pressure level is approximately 58dB(A) during heating and 59dB(A) during cooling.
Outdoor-unit positioning still requires careful planning. Required clearances, boundary locations, bedroom windows, neighbouring properties, airflow and applicable regulations should be considered by the installer.
Technical Specifications
| Rated cooling capacity | 16kW |
| Rated heating capacity | 19kW |
| Indoor airflow | 1120 / 950 / 780 L/s |
| Indoor sound pressure | 48dB(A) |
| External static pressure | 50Pa, adjustable from 0–200Pa |
| Indoor dimensions | 1510mm W × 945mm D × 380mm H |
| Outdoor dimensions | 1330mm H × 950mm W × 340mm D |
| Maximum pipe distance | 75m total length / 30m elevation |
| Pipe sizes | 9.52mm liquid / 15.88mm gas |
| Power supply | Single phase, 220–240V, 50Hz |
| Maximum current | 32A |
Ideal Applications
- Large single-storey or double-storey homes
- Open-plan living and dining areas
- Homes requiring several air-conditioning zones
- New residential construction projects
- Major home renovations
- Selected offices and light-commercial spaces
Professional Installation Required
The CTG160 must be selected and installed by appropriately qualified professionals. A complete installation may require ductwork, ceiling outlets, a return-air grille, refrigeration pipework, electrical work, drainage, zoning controls, mounting equipment and commissioning.
These installation components are not included with the indoor and outdoor units unless expressly stated in the quotation. Before ordering, the installer should complete a site assessment and heat-load calculation to confirm that a 16kW system is appropriate for the property.
Frequently Asked Questions
What units are included?
The matched equipment package includes one CTG160S1AI indoor unit and one CTG160S1AE outdoor unit. Installation materials and labour are supplied separately unless included in your written quotation.
Does the system provide both heating and cooling?
Yes. It is a reverse cycle system providing 16kW rated cooling and 19kW rated heating for year-round climate control.
Can the system be divided into zones?
Yes. It can work with suitable third-party zoning equipment. The zoning layout and number of zones should be designed by the installer.
Does it include Wi-Fi?
The system can integrate with a compatible optional Wi-Fi controller. Confirm the required controller and compatibility before ordering.
Why Buy From Air Conditioning Trade?
Air Conditioning Trade supplies air-conditioning equipment for licensed installers, builders and homeowners across Melbourne. Contact our team for product availability, delivery information, compatible accessories and installation enquiries.
Request a quote today for the Bonaire CTG160 16kW ducted reverse cycle system.
Product information is based on available manufacturer documentation and may change without notice. Images may be representative. Always confirm current specifications, inclusions, warranty conditions and electrical requirements before ordering.
